Pipe Fitting

Pipe Fitting Insights & Buyer's Guide

Pipe fitting is one of the fundamental operations in modern plumbing, vital to the proper functioning of water, gas, and all kinds of fluids engineered for transport across residential, commercial, and industrial sites. Any person making way in the construction or maintenance of these systems must know about the different types of pipes and plumbing solutions. This article plunges deep into all kinds of pipe fittings as to the types, uses, and materials used in the fabrication of these things. Equipped with such an all-encompassing review, the reader would be able to choose wisely about the installation and maintenance of plumbing setups so that these may stand the test of time and operate efficiently.

The world of pipe fitting has different materials, so that each may serve a distinct purpose. PVC or polyvinyl chloride has been fairly common in plumbing systems, mostly because of its low cost, corrosion resistance, and easy installation methods. PVC pipes and fittings generally get used in all sorts of residential plumbing applications, such as waste lines, vent lines, and some water supply applications. Copper pipes, however, are chosen and preferred for their longevity and high-temperature resistance, thus being destined for hot water systems. Accordingly, copper fittings such as elbow fittings and tee fittings are used in conjunction with copper pipes to ensure tight, leak-proof joints.

Every pipe fitting does a separate job within the plumbing system. Hence, a thorough understanding of the application of any type of fitting can help improve the design and working of a specific plumbing system. Here are some general types of pipe fittings and their uses:

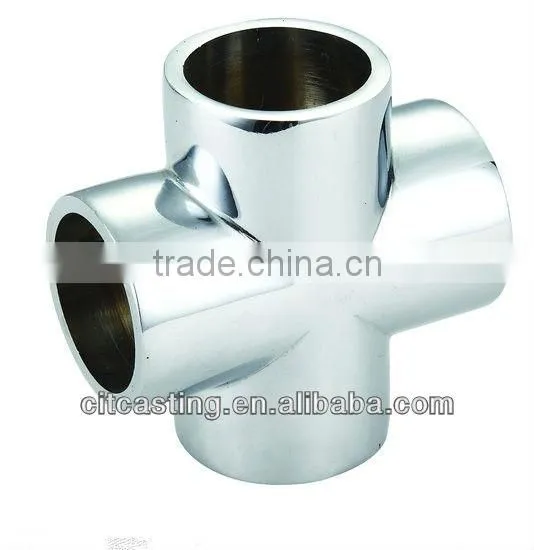

• Cross fittings: Connect four pipes at a central junction.

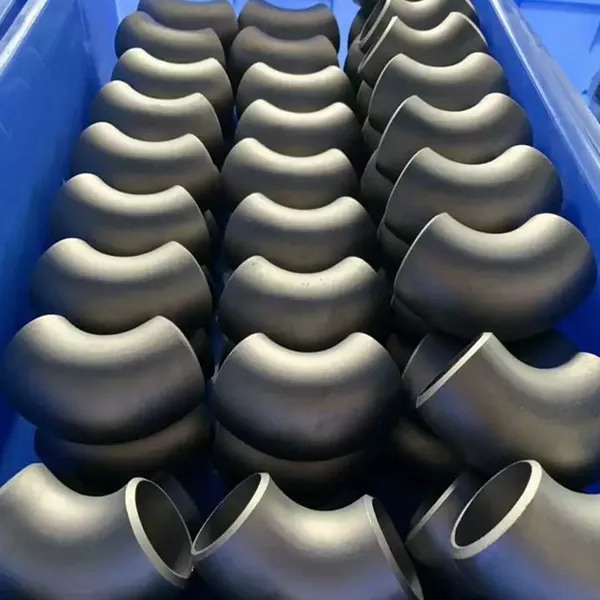

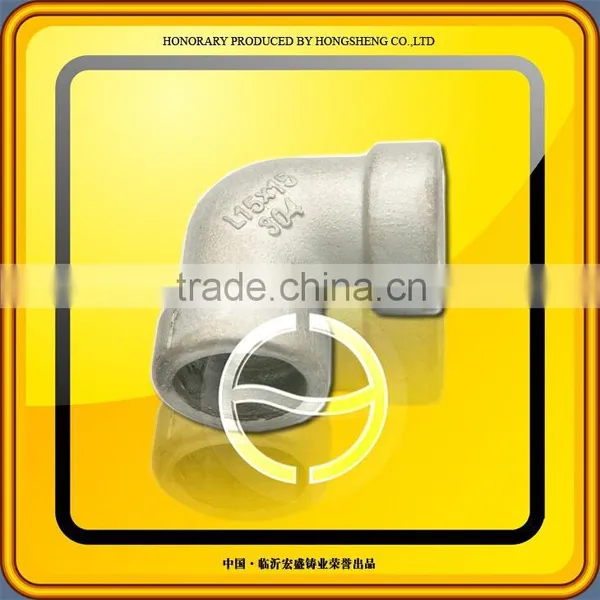

• Elbow fittings: Used to change the direction of a pipe run, having angle variations like 45 or 90 degrees.

• Tee fittings: Resemble the letter 'T' and are used to join three different pipes, usually to split or combine flows.

• Nipple fittings: Short pipes with male pipe threads, used to join two other fittings.

Introduction to Pipe Fittings

What is Pipe Fitting?

Pipe fittings are pipework meant to join sections of pipe without impeding the flow of liquids or gases. Pipe fitting applies to a broad range of materials and methods to establish a dependable plumbing system. Both corrosion-resistant PVC pipe and copper pipe solutions are selected by the pipe fitter, depending on the application and environment. The pipe fitter then welds or threads thin-wall steel pipes to guarantee leak-proof joints. Pipe fitting also inculcates the whole process of selecting the right pipe size and fitting type, e.g., elbow fitting, tee fitting, or nipple fitting, to meet system requirements. It can be said that pipe-fitting forms the very backbone for the operational safety of plumbing and fluid transportation systems used for various routes.

Importance of Proper Pipe Fitting

In terms of utmost importance, proper pipe fitting has a direct influence on how effectively and safely a plumbing system can operate. Pipe fittings that are correctly installed should permit the smooth flow of water, gas, or other substances without leaking, obstruction, and costly repairs from water damage. Selection of the pipe and fitting materials, such as a PVC pipe for particular applications to resist corrosion, would further enhance the expected life and durability of the system. Proper pipe fitting also protects the environment from contamination caused by accidental leaks. Conversely, in pipe fitting practice, the exact fitting of the pipe will prevent unnecessary stresses in the system, hence improving its performance and energy efficiency. Therefore, proper pipe fitting will lead to a safe, reliable, and cost-effective plumbing infrastructure.

Overview of Common Pipe Materials

Pipe fitting materials are categorized as one of the basic things that any plumber needs to know before selecting the proper components for a plumbing system. PVC, or polyvinyl chloride, has become widely used due to its light weight, low cost of production, and resistance to corrosion and chemical attacks, making it suitable for waste and vent lines. Cooper pipes and copper fittings, such as cross fittings and elbow fittings, are preferred in hot water systems for their thermal conductivity and resistance to high temperatures. PEX pipe has, over recent years, created a name among residential installers for its ease of application under the conditions of both heat and cold. Every pipe and fitting material stands out in its unique way in a specific area to realize its application. Such knowledge can allow the logical selection of materials that best fit in terms of performance, cost, and durability to various environments.

Types of Pipe Fittings

Different Types of Pipe Fittings

Some understanding of the different types of pipe fittings is necessary for designing a more efficient plumbing system. Fittings are important components that connect various pipe sections to allow the smooth flow of a fluid. The most common types are:

• Elbow fitting: A fitting that changes the direction of the pipe run by either 45 or 90 degrees.

• Tee fitting: Allows a junction of three pipes, frequently used to split or combine flows.

Cross fittings are utilized for the connection of four pipes to form a central junction point. They act as central points from which to branch in many industrial settings. An adapter fitting, such as the female elbow fitting adapter, is used to convert one connection type or size to another. Another fitting called a nipple has male pipe threads on the ends to connect two other fittings. Every type of fitting has a function that contributes to the integrity and efficiency of a plumbing system. Choosing the correct one may depend on pipe type, flow direction, or environment in which it is being laid; hence it is crucial to learn where it is applicable.

Common Plumbing Fittings Explained

Plumbing fittings are essential pieces that make up any plumbing system, providing the necessary connections to allow for fluid transport within the system. The knowledge of these common plumbing fittings will yield the ability to design strong systems that satisfy specifications and survive under different environmental conditions, thus allowing for a seamless operation of the plumbing infrastructure. Some major types of plumbing fittings are:

• Elbow fittings: They are essential in changing the direction of piping at an angle of 45 or 90 degrees, thus providing all sorts of flexibility to a given piping design.

• Tee fittings: Named for their T shape, these fittings are used to divide or combine pipe flows and are vital to a complex plumbing network.

• Cross Fittings: These, being less common, are used to join four pipes from a central point and are mostly found in industrial setups.

• Adapter fittings: Such as female elbow fittings, allow for a transition from one pipe size or connection type to another, facilitating compatibility between different components.

• Nipple fittings: With their threaded ends, they give a fairly easy way to connect pipes and other fittings.

PEX Fittings and PVC Fittings

Comparing PEX fittings and PVC fittings underscores the individual strengths and specific applications of each kind of plumbing system. PEX fittings belong to the PEX pipe application, for which flexibility and easy installation are paramount and thus characterized by their usage in swift and flexible residential plumbing works. PEX fittings are considered versatile because they can handle both hot and cold temperature applications. On the other hand, PVC fittings, used with PVC pipe, are highly valued for their rigidity and resistance against corrosion and chemical degradation. This gives them suitability for waste lines, vent systems, and certain water supply applications where ruggedness is of supreme priority. While the PEX type of fittings is used in new constructions as well as renovations simply due to the factor of adaptability, PVC types of fittings are only suitable in situations where chemical exposure and rigidity take top priority. The choice between PEX fittings and PVC fittings rests basically upon the requirements of the plumbing system, such as resistance to temperature, ease of installation, and environmental considerations.

Picking the Appropriate Pipe for Your Project

Best Pipe Materials for Specific Applications

Choosing the right pipe for the project is one of the important aspects of plumbing that actually affects the efficiency, durability, and safety of the system. PVC pipe is considered popular in residential and commercial plumbing due to its low price, corrosion resistance, easy installation, and suitability mainly for use in waste and vent lines where there is no high temperature to resist. Copper pipe is stronger and more effective in conducting heat, so it may be considered the best choice or material for hot water systems and applications where heat resistance is desired. Copper pipe fittings, like elbow fittings and tee fittings, give excellent strength and sealing properties for copper pipe systems. PEX pipes and PEX fittings could ideally be used in situations requiring flexibility and easy installation. It is resistant to both hot and cold temperatures, able to serve in various plumbing applications. The decision to choose any pipe material has an advantage unique to it and hence must be seriously weighed against the requirements of the project at hand.

How to Choose the Right Pipe

Choosing the right pipe for a plumbing project requires some considerations, such as intended use, environmental conditions, and budgets. While choosing a pipe, factors that should be considered include the fluid that will flow through the system, since some materials have different resistance to chemicals. PVC pipe is, in most cases, the way to go in residential plumbing systems due to cost and corrosion resistance. On the contrary, copper pipe types will be for those high-temperature applications where durability and thermal efficiency are a must. Pipe size is considered when it comes to flow rate and pressure required in the system. Another factor to consider, which also determines the pipe material to be used, is the environment in which the installation takes place. In this case, PEX pipe can be very useful, especially if it is in a cramped or tight environment where other pipe materials cannot easily be installed. After a good evaluation of these factors, you should be in an excellent position to decide on the best possible piping solution that will guarantee good performance and service life.

Factors Considered When Selecting Pipe Types

When considering pipe types for a plumbing system, several crucial factors must guarantee that installation will be successful and long-lasting. Conversely, the transported fluid or gas will dictate the material selection: PVC pipe is more suitable for non-potable water applications due to its corrosion resistance, while copper pipe is suited for hot water systems due to its tolerance of heat. Other environmental factors, like exposure to UV rays or chemicals, also enter into the pipe choice, as different pipe materials would respond accordingly to these external factors. On the matter of installation, ease of installation would be important; therefore, PEX pipe and fittings provide flexibility to meet installation requirements, especially in complex layouts. On the matter of sizes, pipe sizes should accommodate the flow rate and will pressure for safety and efficiency. Price is yet another factor since some materials, like copper, might be costly but can ensure the best durability and performance. Considering all these will help in selecting the best pipe to satisfy the specific needs of the project.

Frequently Asked Questions (FAQs)

What are the different types of pipe fittings used in plumbing?

There are several types of pipe fittings used in plumbing, including elbow fittings, tees, and adapters. Elbow fittings are crucial for changing the direction of a pipe, while tees allow for branching off a line. Adapter fittings can connect different types of pipe materials, such as PVC to copper. Additionally, there are fittings like reducers, which allow for connecting pipes of different diameters, and unions, which enable easy disassembly. Understanding these types is essential for effective plumbing installations.

How do I choose the right pipe material for my plumbing system?

Choosing the right pipe material depends on various factors, including the type of fitting you plan to use, the pressure requirements, and the environment where the pipes will be installed. Common materials include PVC, copper, and PEX, each offering unique advantages. For instance, PVC is lightweight and resistant to corrosion, making it ideal for drainage systems. In contrast, copper is durable and has excellent thermal properties, suitable for hot water lines. Assessing the specific needs of your plumbing system will help you select the best pipe material.

What are PVC pipe fittings and their applications?

PVC pipe fittings are accessories used to connect different sections of PVC pipes in plumbing systems. They are commonly used in residential and commercial plumbing due to their resistance to corrosion and ease of installation. Applications include drainage, waste, and vent systems, where durability and flexibility are crucial. PVC fittings come in various forms, including elbows, tees, and adapters, enabling efficient routing of pipes. Their lightweight nature also makes them a preferred choice for many plumbing projects.

What materials are commonly used for pipe fittings?

The common materials used for pipe fittings include PVC, copper, brass, and stainless steel. PVC is favored for its cost-effectiveness and resistance to chemicals, making it ideal for non-pressure applications. Copper fittings are known for their durability and ability to withstand high temperatures, often used in hot water systems. Brass fittings offer excellent corrosion resistance and are commonly used in gas lines. Understanding the properties of these materials can help you select the best pipe fittings for your specific plumbing needs.

Can you explain the function of press fittings in plumbing?

Press fittings are designed to create a secure, leak-proof connection between pipes without the need for soldering or welding. They are typically used with copper and PEX pipes and provide a quick installation process that can save time and labor costs. The fittings use a specialized tool to compress the fitting onto the pipe, ensuring a tight seal. This method is particularly advantageous in tight spaces where traditional methods may be difficult. Additionally, press fittings are often used in water supply and heating systems due to their reliability and efficiency.

What are the benefits of using PEX fittings in plumbing systems?

PEX fittings offer several benefits in plumbing systems, including flexibility, resistance to scale and chlorine, and ease of installation. Unlike traditional copper or PVC, PEX can expand and contract without cracking, making it ideal for areas with fluctuating temperatures. PEX fittings come in various types, such as elbows and tees, facilitating easy connections in tight spaces. Additionally, they are less likely to corrode or develop pinhole leaks over time. This durability and versatility make PEX an increasingly popular choice for modern plumbing projects.
