Imported Japanese NITTO pneumatic quick connectors with 3/8 external thread connecting to 30SM. Product features:
It is a quick connector with excellent versatility for connecting air pipes in the production workshop to hoses of air tools.
It is made of steel for air applications, brass and stainless steel for water applications. Here, please note the fluid outflow from the plug side during separation.
The important components made of steel are heat-treated to improve strength. In particular, it has excellent wear resistance and durability.
The standardization of the main body material, size and installation shape can meet a wide range of pneumatic applications.
Imported Japanese NITTO pneumatic quick connectors with 3/8 external thread connecting to 30SM. Specifications:
Material: Steel (chrome-plated), brass, stainless steel;
Installation size: R1/8 - R1; Rc1/4 - Rc1; G1/4
Working pressure: 1.5MPa (15kgf/cm2) for steel (chrome-plated) and stainless steel; 1.0MPa (10kgf/cm2) for brass;
Sealing material and operating temperature range: Nitrile rubber (-20 to +80 degrees); Fluorine rubber (-20 to +180 degrees)

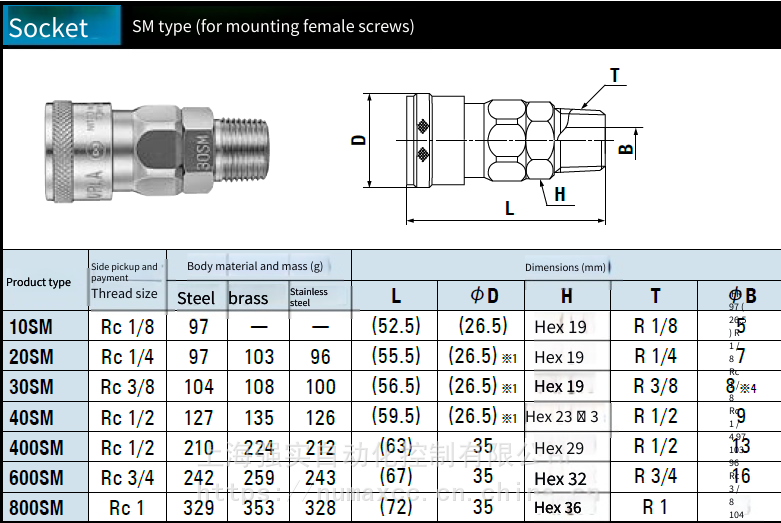

Specifications of other sleeves for internal thread installation of imported Japanese NITTO pneumatic quick connectors with 3/8 external thread connecting to 30SM are as follows:
10SM: Rc1/8"
20SM: Rc1/4"
40SM: Rc1/2"
400SM: Rc1/2"
600SM: Rc3/4"
800SM: Rc1"
