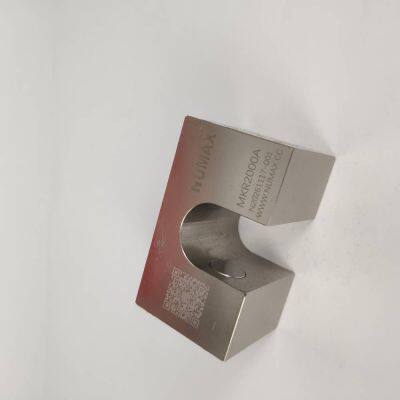

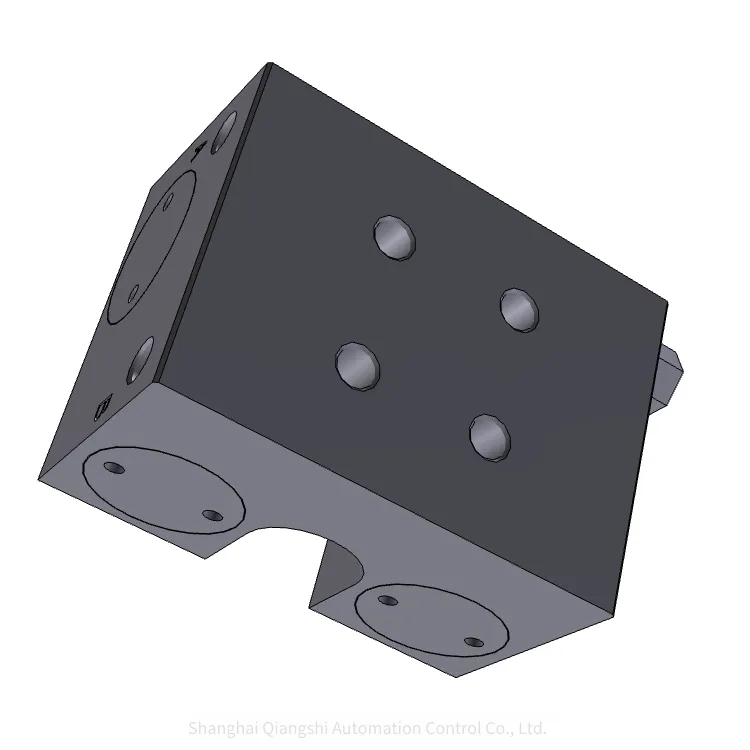

NUMAX Clampers Pneumatic Brake MKR4000A for φ40 Linear Shaft Optical Shaft Clamping Unit, Material Introduction:
Main Body: Imported Alloy Steel SCr415, Electroless Nickel Plating
Contact Surface: High Carbon Chromium Bearing Steel SUJ2, No Surface Treatment
Adjusting Bolt: High Carbon Chromium Bearing Steel SUJ2, No Surface Treatment
End Cover: Stainless Steel SUS303
Product Features:
For linear shafts.
Used for fixing sliding tables, positioning, and preventing vibration.
Normally Open type.
When air pressure is supplied: Clamp the shaft.
When air pressure is discharged: Release the clamping.
Can also be used on round shafts.

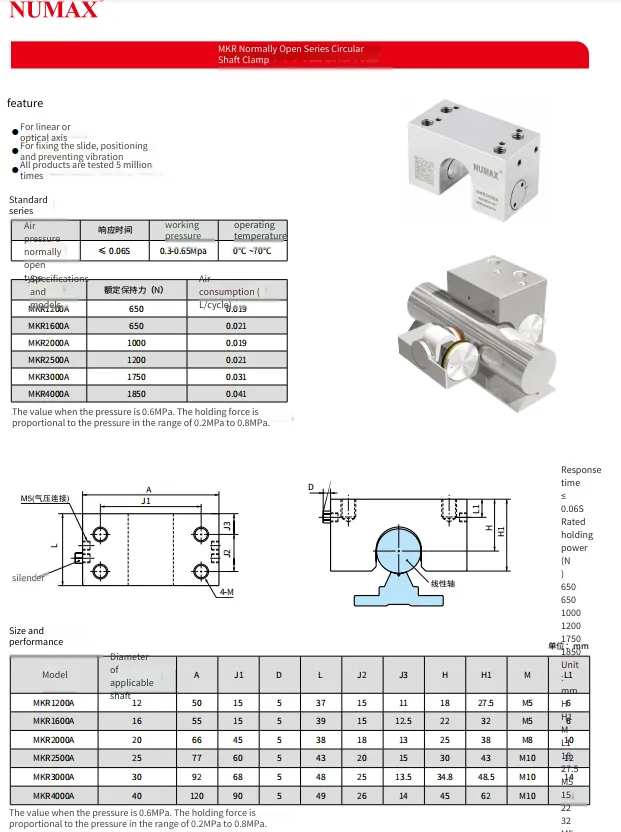

Product Parameters:
Control Method: Pneumatic, Normally Open
Opening Operating Pressure: 0.3MPa
Allowable Operating Pressure: 0.6MPa
Response Time: 0.06s
Clamping Life: 5 million times
Operating Temperature: -10℃～+70℃
Applicable Shaft Diameter: φ12mm～φ60mm
Applicable Shaft Hardness: Above 54HRC
Allowable Dimensional Deviation of Applicable Shaft Diameter: -0.01mm～0mm
Holding Force: The holding force is proportional to the pressure within the range of 0.3MPa～0.6MPa.
Piping Instructions:
Shaft Diameter φ12, M5, Air Consumption: 0.019L/Cycle (ANR)
Shaft Diameter φ16, M5, Air Consumption: 0.021L/Cycle (ANR)
Shaft Diameter φ20, M5, Air Consumption: 0.019L/Cycle (ANR)
Shaft Diameter φ25, M5, Air Consumption: 0.021L/Cycle (ANR)
Shaft Diameter φ30, M5, Air Consumption: 0.031L/Cycle (ANR)
Shaft Diameter φ40, M5, Air Consumption: 0.041L/Cycle (ANR)
Ordering Specifications:
MKR1200A
MKR1600A
MKR2000A
MKR2500A
MKR3000A
MKR3200A
MKR4000A
