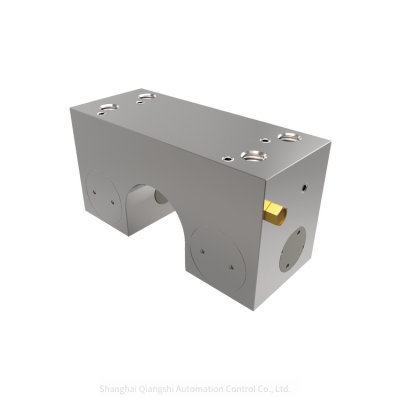

Japanese NBK imported clamp, pneumatic normally open type spool clamping pliers MKR-1600-A, technical parameters:
Control method: Pneumatic, Normally Open
Opening pressure: 0.3MPa
Allowable operating pressure: 0.6MPa
Response time: 0.06s
Clamping life: 5 million times
Operating temperature: -10℃～+70℃
Applicable shaft diameter: φ12mm～φ60mm
Applicable shaft hardness: Above 54HRC
Allowable dimensional deviation of applicable shaft diameter: -0.01mm～0mm
Holding force: The holding force is proportional to the pressure within the range of 0.3MPa～0.6MPa.
Piping instructions: For shaft diameter φ60, it is M5. Air consumption: 0.041L/cycle (ANR)
Product features:
For linear shafts.
Used for fixing slides, positioning and preventing vibration.
It is a Normally Open type.
When air pressure is supplied: Clamp the shaft.
When air pressure is discharged: Release the clamp.

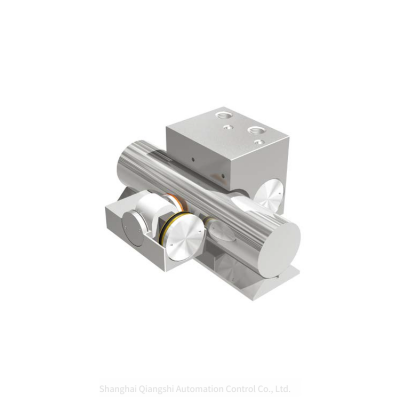

It can also be used on round shafts.
Material description:
Main body: Imported alloy steel SCr415, electroless nickel plating
Contact surface: High carbon chromium bearing steel SUJ2, no surface treatment
Adjusting bolt: High carbon chromium bearing steel SUJ2, no surface treatment
End cover: Stainless steel SUS303
