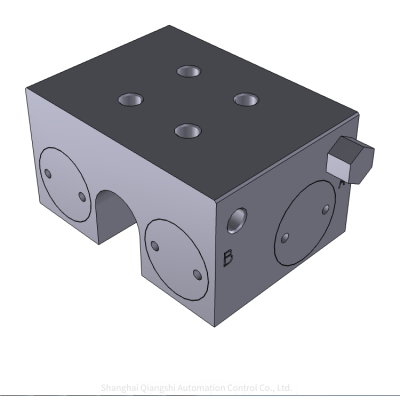

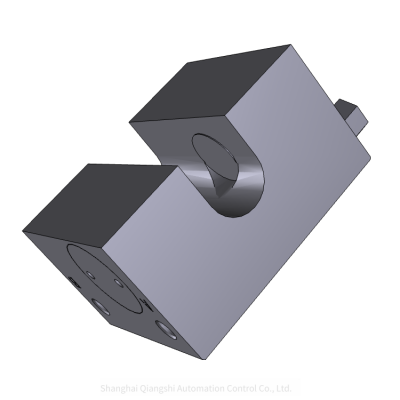

Domestically produced in-stock linear rail grippers. NUMAX pneumatic normally open type optical axis brake MKR5000A, a locking device for spools. Product parameters:
Control method: Pneumatic, normally open
Opening operating pressure: 0.3MPa
Allowable operating pressure: 0.6MPa
Response time: 0.06s
Clamping life: 5 million times
Operating temperature: -10℃～+70℃
Applicable shaft diameter: φ12mm～φ40mm
Applicable shaft hardness: Above 54HRC
Allowable dimensional deviation of applicable shaft diameter: -0.01mm～0mm
Holding force: The holding force is proportional to the pressure within the range of 0.3MPa～0.6MPa.
Material introduction:
Main body: Imported alloy steel SCr415, electroless nickel plating
Contact surface: High-carbon chromium bearing steel SUJ2, no surface treatment
Adjusting bolt: High-carbon chromium bearing steel SUJ2, no surface treatment
End cover: Stainless steel SUS303
Optical axis clamp, product features:
For linear axes.
Used for fixing sliding tables, positioning and preventing vibration.
Normally Open type.
When air pressure is supplied: Clamp the shaft.
When air pressure is discharged: Release the clamping.
Can also be used on round shafts.
Piping instructions:
Shaft diameter φ12, M5, air consumption: 0.019L/cycle (ANR)
Shaft diameter φ16, M5, air consumption: 0.021L/cycle (ANR)
Shaft diameter φ20, M5, air consumption: 0.019L/cycle (ANR)
Shaft diameter φ25, M5, air consumption: 0.021L/cycle (ANR)
Shaft diameter φ30, M5, air consumption: 0.031L/cycle (ANR)
Shaft diameter φ40, M5, air consumption: 0.041L/cycle (ANR)
Ordering specifications:
MKR1200A
MKR1600A
MKR2000A
MKR2500A
MKR3000A
MKR3200A
MKR4000A
