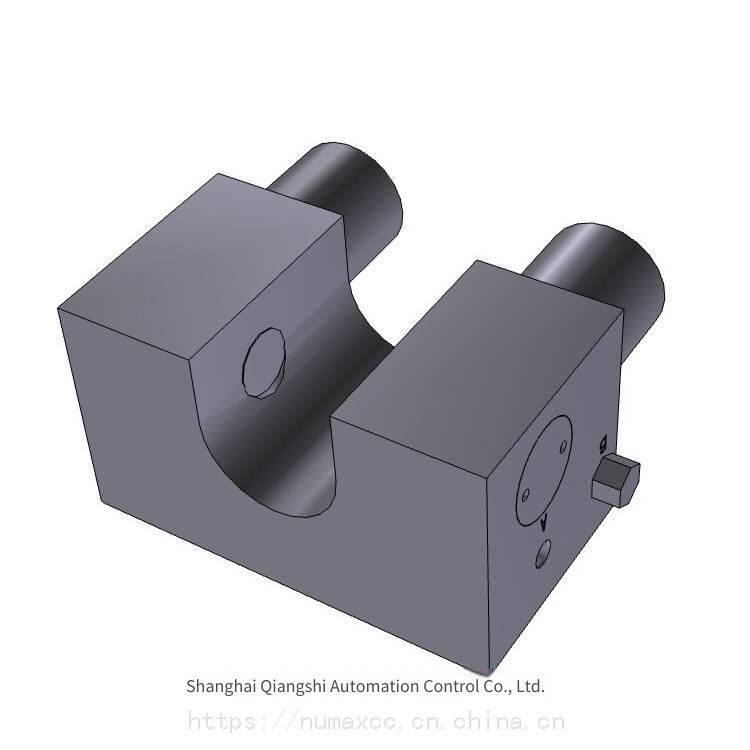

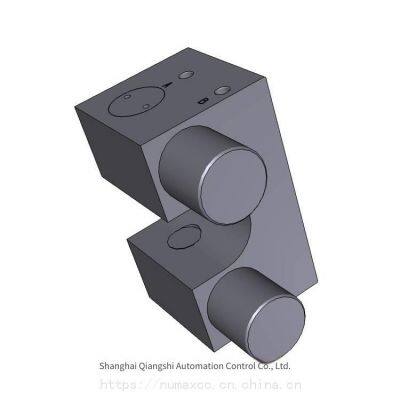

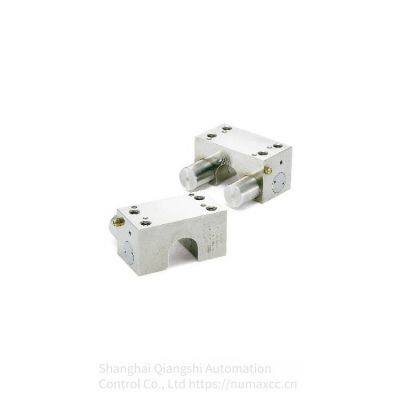

German ZIMMER Clamping Pliers for Optical Shafts, Pneumatic Normally Closed Type, Air Cut-off Control Locking Device MKRS6000A, Spool Brake. Specification Description:
Control Method: Pneumatic, Normally Closed
Opening Pressure: 0.3MPa, 0.4MPa, 0.55MPa
Operating Pressure: 0.65MPa
Response Time: 0.06s
Clamping Life: 5 million times
Operating Temperature: -10℃～+70℃
Applicable Shaft Diameter: φ12mm～φ60mm
Applicable Shaft Hardness: Above 54HRC
Allowable Dimensional Deviation of Applicable Shaft Diameter: -0.01mm～0mm
Main Body Material: Equivalent to SCr415, Electroless Nickel Plated.
Optical Shaft Clamping Device, Product Features:
For linear shafts.
Used for fixing sliding tables, positioning and preventing vibration.
It is a Normally Closed type.
When air pressure is supplied: Clamping is released.
When air pressure is discharged: The shaft is clamped by the force of the spring.Products with opening pressures of 0.3MPa and 0.4MPa have been standardized.
It can also be used on linear shafts and circular shafts.
German ZIMMER Clamping Pliers for Optical Shafts, Pneumatic Normally Closed Type, Air Cut-off Control Locking Device MKRS6000A, Spool Brake. Installation Precautions:
1. First, install the guide rail library Langba on the guide rail in the state of releasing the clamping. For the normally closed type, with the spacer inserted at the time of shipment,
perform about 10 opening and closing actions, and then install the guide rail.
2. Then temporarily fasten the guide rail library Langba and the auxiliary gasket (if necessary) on the object such as the sliding table to be used. Screws with a strength grade of 8.8 or above need to be used, and ensure that the engagement length is more than the nominal diameter of the thread × 0.9.
3. Next, after repeating the action of clamping/releasing the clamping of the guide rail about 10 times, keep it in the clamping state.
4. In the state of clamping the guide rail, fasten the mounting screws with the specified tightening torque. Please refer to each product page for the tightening torque.
5. For products with sealing rings, fasten the sealing ring fixing bolts in the temporarily fastened state.
6. Confirm that the guide rail library Langba does not interfere with the shield base, etc.
7. At the time of shipment, the MKRS has a spacer sandwiched between the contact surfaces. Do not remove the spacer except during installation. If the spacer is removed
Leaving it in this state for a long time may cause the MKRS to malfunction.
Piping instructions:
Shaft diameter φ12, M5 thread, air consumption: 0.019L/cycle (ANR)
Shaft diameter φ16, M5 thread, air consumption: 0.021L/cycle (ANR)
Shaft diameter φ20, M5 thread, air consumption: 0.019L/cycle (ANR)
Shaft diameter φ25, M5 thread, air consumption: 0.021L/cycle (ANR)
Shaft diameter φ30, M5 thread, air consumption: 0.031L/cycle (ANR)
Shaft diameter φ40, M5 thread, air consumption: 0.041L/cycle (ANR)
Shaft diameter φ50, M5 thread, air consumption: 0.041L/cycle (ANR)
Shaft diameter φ60, M5 thread, air consumption: 0.041L/cycle (ANR)

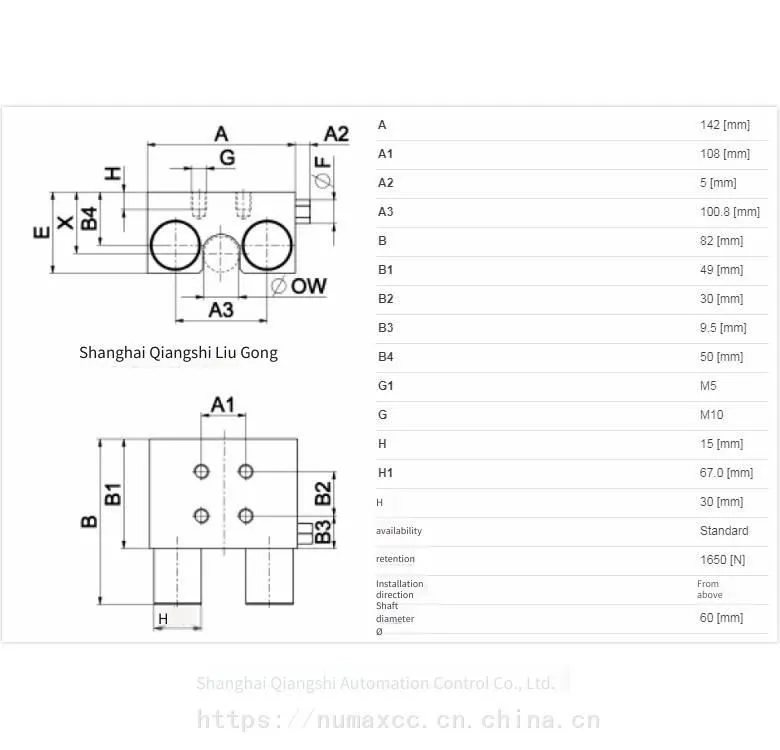

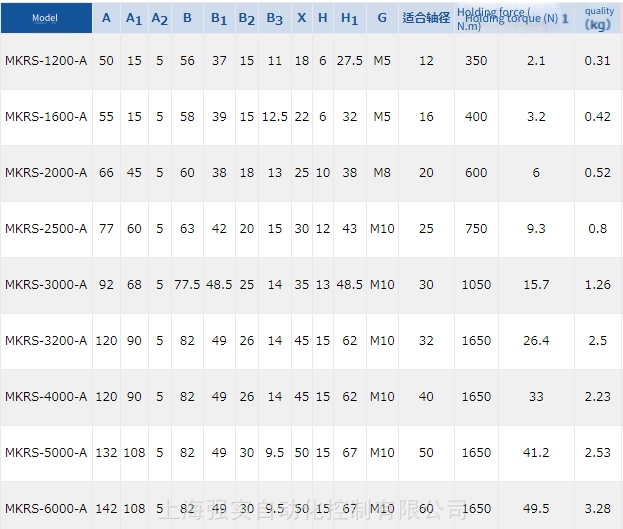

Installation dimensions:
