From the air piping in the factory to the hose connection of pneumatic tools, it is a highly versatile coupler.
It is an excellent coupler.
Important components are quenched to improve strength. It is particularly excellent in wear resistance and durability.
It also comes in various sizes and mounting forms to meet a wide range of pneumatic applications.
Applicable fluid: Air
Body shape: Plug
Valve structure: No valve (with socket valve)
Body material: Steel
Seal material: None
Operating pressure: 1.5MPa
Pressure resistance: 2.0MPa
Operating temperature range: Conforms to the socket.
Mounting shape and size: Hose nipple for 1/2" hose

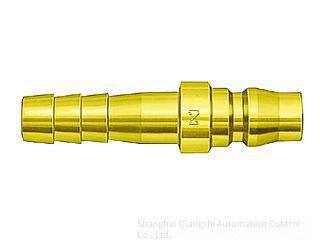

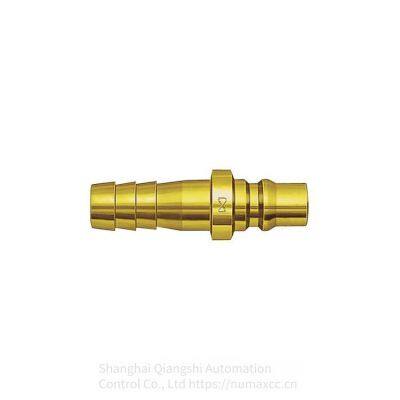

Japanese imported hose installation insert 30PH, male connector for 3/8 hose installation. Product features:
From the air piping in the factory to the hose connection of pneumatic tools, it is a highly versatile and excellent quick connector.
It is made of steel for air, brass and stainless steel for water. Here, please note the fluid outflow from the plug side when disconnecting.
The important components made of steel are heat-treated to improve strength. In particular, it has excellent wear resistance and durability.
The standardization of the body material, size and mounting shape can meet a wide range of pneumatic applications.

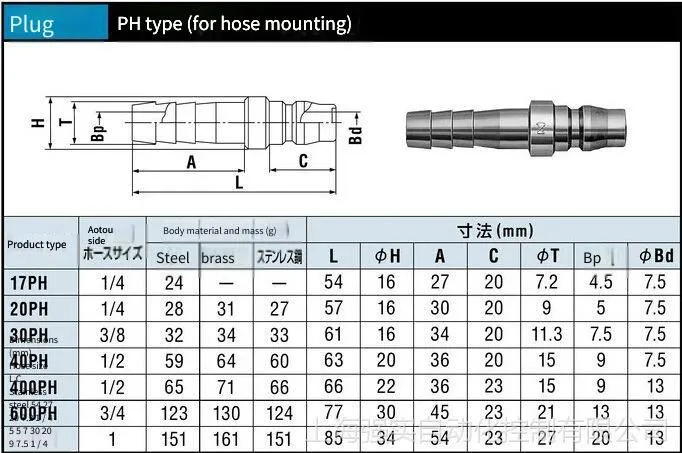

Japanese imported hose installation insert 30PH, male connector for 3/8 hose installation, detailed dimensions:

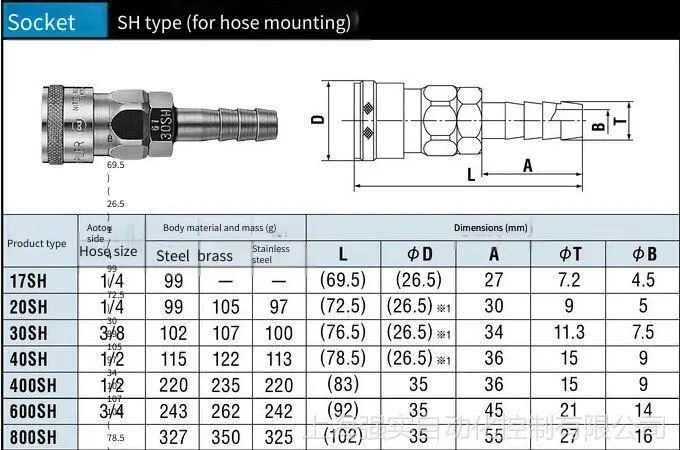

Corresponding sleeve, model 40SH, specific dimensions:
