3/8 External thread female connector, imported Japanese NITTO KOHKI quick coupling 30PM, product features:
It is a highly versatile quick coupling used for connecting air hoses from air piping in the production workshop to air tools.
It is made of steel for air applications, brass and stainless steel for water applications. Here, please note the fluid outflow from the plug side when disconnecting.
The important components made of steel are heat-treated to improve strength. In particular, it has excellent wear resistance and durability.
The standardization of the main body material, size and installation shape can meet a wide range of pneumatic applications.
3/8 External thread female connector, imported Japanese NITTO KOHKI quick coupling 30PM, specifications:
Material: Steel (chrome-plated), brass, stainless steel;
Installation size: R1/8 - R1; Rc1/4 - Rc1; G1/4
Working pressure: 1.5MPa (15kgf/cm2) for steel (chrome-plated) and stainless steel; 1.0MPa (10kgf/cm2) for brass;
Sealing material and operating temperature range: Nitrile rubber (-20 to +80 degrees); Fluorine rubber (-20 to +180 degrees)

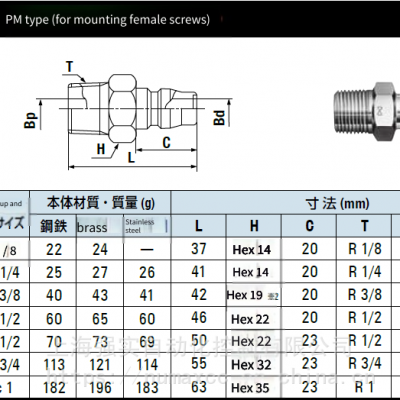

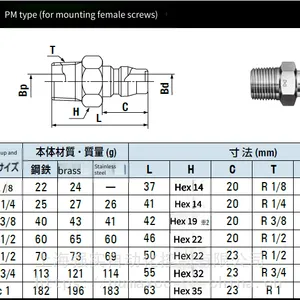

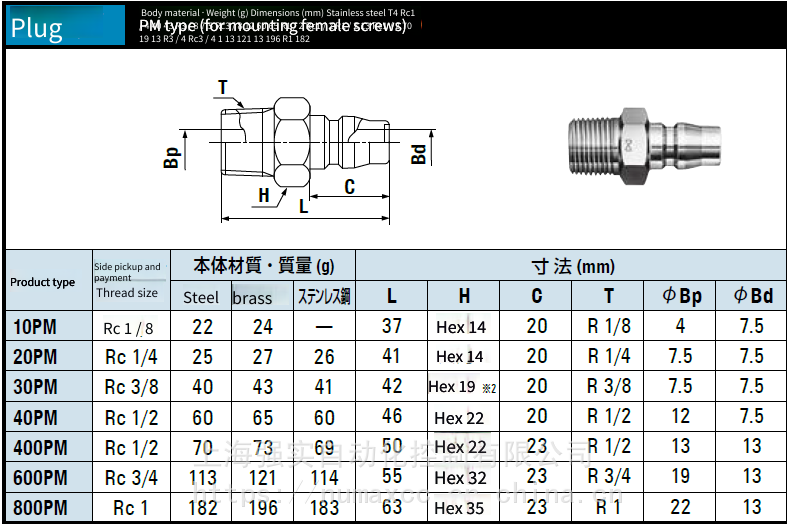

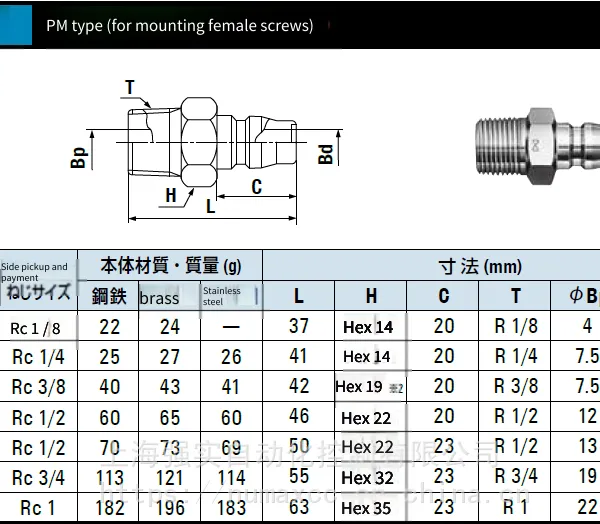

3/8 External thread female connector, imported Japanese NITTO KOHKI quick coupling 30PM, other plugs for internal thread installation and their size specifications are as follows:
10PM: Rc1/8"
20PM: Rc1/4"
40PM: Rc1/2”
400PM: Rc1/2"
600PM: Rc3/4"
800PM: Rc1"
