Product Introduction

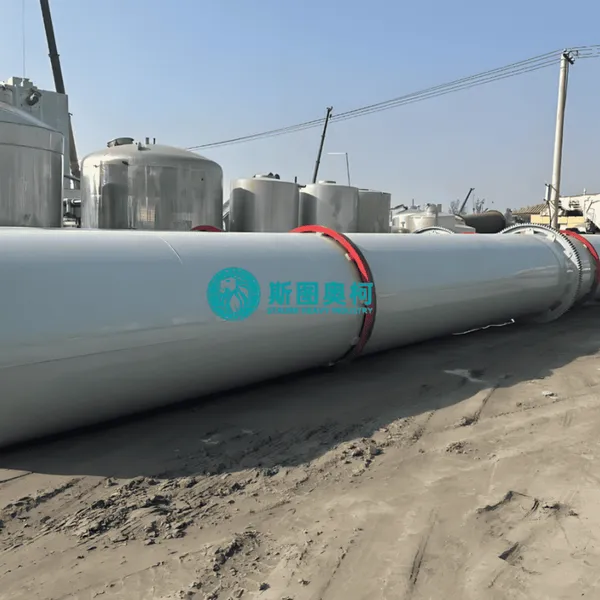

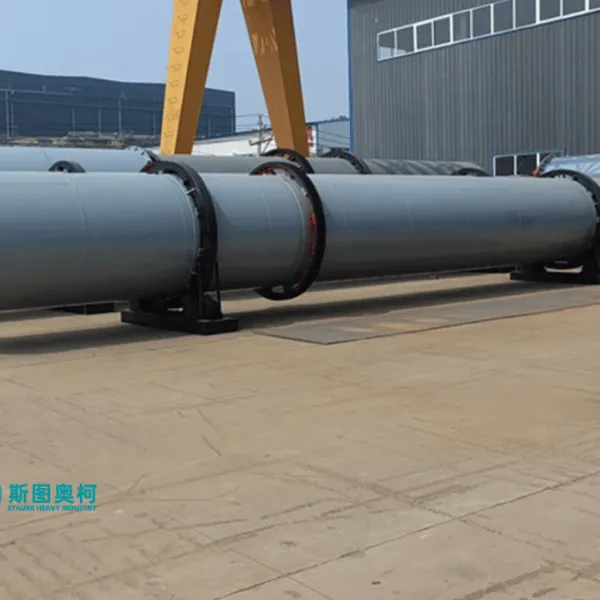

This 100 TPD rotary dryer for softwood chips thermal process is a professional targeted drying equipment tailored for softwood chips thermal processing scenarios. It adopts a low-temperature gentle drying structure adapted to the characteristics of low density and easy burning of softwood chips, with a daily processing capacity of 100 tons of raw wet softwood chips. It can stably reduce the moisture content of softwood chips from 45%~60% to below 12%, and the dried finished softwood chips can be directly used for subsequent thermal processing such as biomass fuel and wood-based panel production. It is the core drying equipment to ensure the quality of softwood chips thermal processing products.
Working Principle
The obliquely installed multi-cylinder insulation cylinder is driven by a stable transmission system to rotate at a low and uniform speed. The wet softwood chips are continuously fed into the inner cylinder, and are fully contacted with the low-temperature hot air flow under the action of the special anti-scattering lifting plate. The materials are dried step by step through the three-stage temperature control zones, and the moisture is rapidly and evenly evaporated. The dried softwood chips are stably output from the discharge port, and the tail gas is discharged after dust removal, completing the continuous and gentle thermal drying process.
Core Features
This 100 TPD model has multiple targeted advantages for softwood chips thermal processing. The low-temperature temperature control system effectively avoids the burning and carbonization of softwood chips during the drying process, and the quality of finished materials is stable. The multi-cylinder insulation design greatly improves the thermal efficiency, and the energy consumption is reduced by more than 20% compared with ordinary single-cylinder dryers. The special anti-scattering structure avoids the flying loss of light softwood chips, and the material yield is significantly improved. The equipment runs stably and can support 24-hour continuous operation, perfectly matching the production rhythm of softwood chips thermal processing plants.
Technical Specifications
| Product Specs (m) | Capacity (T/H) | Main Motor Power (kW) | Main Motor Model | Main Gearbox Model | Ratio |
| φ1.2×10m | 2.5 | 7.5 | Y160M-R3 | ZL50-16-1 | - |
| φ1.5×12m | 3.3 - 4.9 | 10 | Y160L-6B3 | JZQ500-III-2F | - |
| φ1.5×15m | 4 - 6 | 18.5 | Y200L-6 | JZQ500-III-2F | - |
| φ1.8×12m | 4 - 6 | 11 | Y200L-6 | ZQ50-16II-2 | 16.46 |
| φ2.2×12m | 7 - 12 | 18.5 | Y160L-6 | JZQ650-III | 31.5 |
| φ2.2×14m | 7 - 12 | 18.5 | Y160L-6 | JZQ750-III | 31.5 |
| φ2.2×16m | 12 | 30 | Y225M-6 | JZQ750-III | 31.5 |
| φ2.4×14m | 12 | 30 | Y250M-6 | JZQ750-III | 31.5 |
| φ2.4×18m | 10 - 13 | 37 | Y250M-6 | ZL85-13-1 | 27.16 |
| φ2.4×20m | 10 - 14 | 37 | Y250M-6 | ZL85-13-1 | 27.16 |
| φ3×20m | 25 | 55 | Y250M-4 | ZL100-16-1 | 41.52 |
| φ3×25m | 32 - 36 | 75 | YR280M-4 | ZL100-16-1 | 41.52 |
