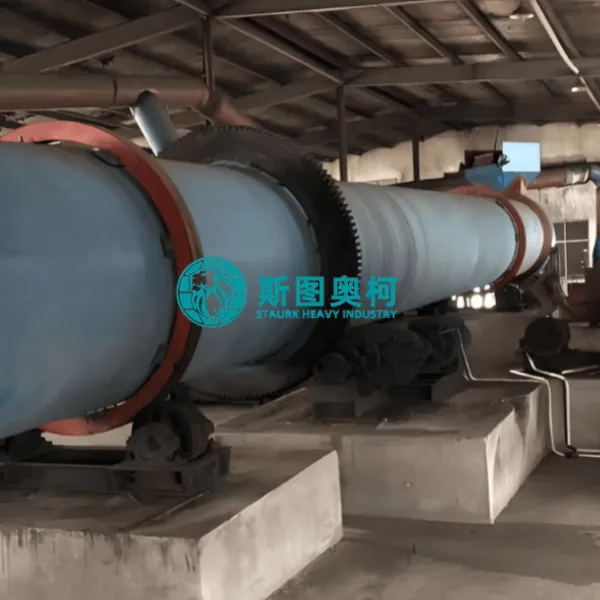

Help CenterRotary Dryer for Biomass Tree Bark Processing 100 Tpd
Product Spotlights
2.Customizable mineral powder drying line
3.Easy installation & maintenance
4.Global mining project compatible
5.Uniform final moisture control
6.No over-drying mineral powder
7.Adjustable drying temperature
8.Consistent dried powder quality
9.Fine mineral powder drying protection
Related Products
-
Rotary Dryer for Autumn Leaves Biomass Drying 20 TpdNegotiableMOQ: 1 Set -
Rotary Dryer for Crushed Bark Mulching Plant 80 TpdNegotiableMOQ: 1 Set
-
Rotary Dryer for Pine Wood Shavings Processing 60 TpdNegotiableMOQ: 1 Set
-
Rotary Dryer for Forest Leaves Thermal Process 40 TpdNegotiableMOQ: 1 Set
-
Rotary Dryer for Hardwood Bark Drying 120 TpdNegotiableMOQ: 1 Set
Product Introduction
This 40 tpd rotary dryer for carpentry wood shavings drying is a professional small-capacity continuous drying equipment tailored for carpentry leftover wood shavings resource utilization scenarios. It adopts a special anti-flying and anti-winding structure adapted to the characteristics of light texture, easy winding and easy flying of carpentry wood shavings, with a daily processing capacity of 40 tons of wet raw carpentry wood shavings. It can reduce the moisture content of raw materials from 45%~60% to below 12% at one time, and the dried finished wood shavings can be directly used for subsequent biomass fuel, pet bedding, particle processing and other scenarios. It is the core drying equipment to realize the high-value recycling of carpency leftover materials.
Working Principle
The obliquely installed lightweight rotary cylinder is driven by a stable frequency-conversion transmission system to rotate at a low and uniform speed. The wet carpentry wood shavings are fed into the cylinder from the feeding end, and are continuously lifted and scattered by the built-in special anti-winding and anti-flying lifting plates as the cylinder rotates, fully contacting with the high-temperature hot air flow. The moisture in the wood shavings is rapidly evaporated under the action of uniform heat exchange, and the dried qualified wood shavings are stably discharged from the discharging end after the whole drying stroke, completing the 40-ton daily continuous drying process.
Core Features
This 40 tpd model has multiple targeted advantages for carpentry wood shavings drying. The special anti-winding and anti-flying structure effectively avoids the material winding and flying loss problems easily caused by carpentry wood shavings, and the material yield is significantly improved. The optimized heat exchange structure greatly improves the thermal efficiency, reducing the energy consumption per ton of wood shavings by more than 20% compared with ordinary models. The equipment runs stably with low failure rate, and can support 24-hour continuous operation. The fully enclosed operation has no dust overflow, which meets environmental protection emission standards.
Technical Specifications
| Product Specs (m) | Capacity (T/H) | Main Motor Power (kW) | Main Motor Model | Main Gearbox Model | Ratio |
| φ1.2×10m | 2.5 | 7.5 | Y160M-R3 | ZL50-16-1 | - |
| φ1.5×12m | 3.3 - 4.9 | 10 | Y160L-6B3 | JZQ500-III-2F | - |
| φ1.5×15m | 4 - 6 | 18.5 | Y200L-6 | JZQ500-III-2F | - |
| φ1.8×12m | 4 - 6 | 11 | Y200L-6 | ZQ50-16II-2 | 16.46 |
| φ2.2×12m | 7 - 12 | 18.5 | Y160L-6 | JZQ650-III | 31.5 |
| φ2.2×14m | 7 - 12 | 18.5 | Y160L-6 | JZQ750-III | 31.5 |
| φ2.2×16m | 12 | 30 | Y225M-6 | JZQ750-III | 31.5 |
| φ2.4×14m | 12 | 30 | Y250M-6 | JZQ750-III | 31.5 |
| φ2.4×18m | 10 - 13 | 37 | Y250M-6 | ZL85-13-1 | 27.16 |
| φ2.4×20m | 10 - 14 | 37 | Y250M-6 | ZL85-13-1 | 27.16 |
| φ3×20m | 25 | 55 | Y250M-4 | ZL100-16-1 | 41.52 |
| φ3×25m | 32 - 36 | 75 | YR280M-4 | ZL100-16-1 | 41.52 |
