Help CenterRotary Dryer for Tree Bark Thermal Drying 60 Tpd
Product Spotlights
2.Customizable mineral powder drying line
3.Easy installation & maintenance
4.Global mining project compatible
5.Uniform final moisture control
6.No over-drying mineral powder
7.Adjustable drying temperature
8.Consistent dried powder quality
9.Fine mineral powder drying protection
Related Products
-
Rotary Dryer for Wood Shavings Bedding Drying 50 TpdNegotiableMOQ: 1 Set -
Rotary Dryer for Dry Leaves Pellet Production 30 TpdNegotiableMOQ: 1 Set
-
Rotary Dryer for Dry Leaves Pellet Production 30 TpdNegotiableMOQ: 1 Set
-
Rotary Dryer for Biomass Tree Bark Processing 100 TpdNegotiableMOQ: 1 Set
-
Rotary Dryer for Biomass Tree Bark Processing 100 TpdNegotiableMOQ: 1 Set
Product Introduction
This 60 tpd rotary dryer for tree bark thermal drying is a professional medium-capacity continuous drying equipment tailored for tree bark resource utilization scenarios. It adopts a special anti-fiber-winding and anti-blocking structure adapted to the characteristics of high fiber content and easy winding of tree bark, with a daily processing capacity of 60 tons of raw wet tree bark. It can reduce the moisture content of raw materials from 55%~70% to below 15% at one time, and the dried finished tree bark can be directly used for subsequent biomass fuel, bark board processing and other resource utilization scenarios. It is the core drying equipment to support the large-scale recycling of tree bark.
Working Principle

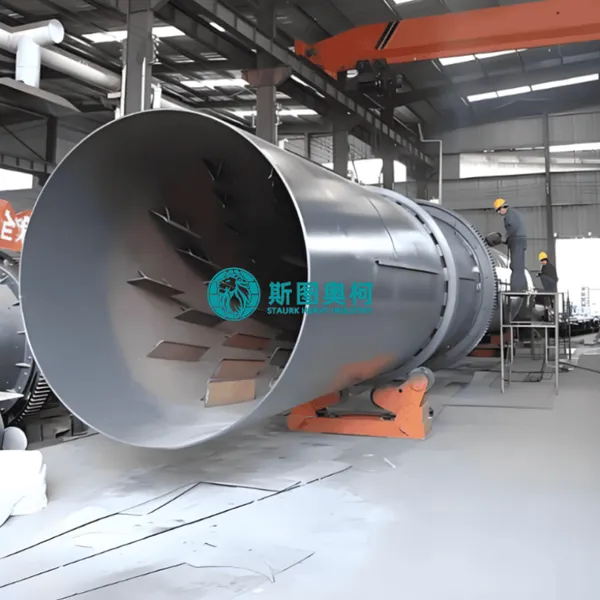

The obliquely installed rotary cylinder is driven by a stable transmission system to rotate at a set low speed. The wet tree bark is fed into the cylinder from the feeding end, and is continuously lifted and scattered by the built-in special anti-winding lifting plates as the cylinder rotates, fully contacting with the high-temperature hot air flow. The moisture in the tree bark is rapidly evaporated under the action of uniform heat exchange, and the dried qualified tree bark is stably discharged from the discharging end after the whole drying stroke, completing the 60-ton daily continuous thermal drying process.
Core Features
This 60 tpd model has multiple targeted advantages for tree bark thermal drying. The special anti-fiber-winding and anti-blocking structure effectively avoids the material clogging problem easily caused by high-fiber tree bark. The optimized heat exchange structure greatly improves the thermal efficiency, reducing the energy consumption per ton of tree bark by more than 20% compared with ordinary models. The equipment runs stably and can support 24-hour continuous operation, with low failure rate. The fully enclosed operation has no dust overflow, which meets environmental protection emission standards.
Technical Specifications
| Product Specs (m) | Capacity (T/H) | Main Motor Power (kW) | Main Motor Model | Main Gearbox Model | Ratio |
| φ1.2×10m | 2.5 | 7.5 | Y160M-R3 | ZL50-16-1 | - |
| φ1.5×12m | 3.3 - 4.9 | 10 | Y160L-6B3 | JZQ500-III-2F | - |
| φ1.5×15m | 4 - 6 | 18.5 | Y200L-6 | JZQ500-III-2F | - |
| φ1.8×12m | 4 - 6 | 11 | Y200L-6 | ZQ50-16II-2 | 16.46 |
| φ2.2×12m | 7 - 12 | 18.5 | Y160L-6 | JZQ650-III | 31.5 |
| φ2.2×14m | 7 - 12 | 18.5 | Y160L-6 | JZQ750-III | 31.5 |
| φ2.2×16m | 12 | 30 | Y225M-6 | JZQ750-III | 31.5 |
| φ2.4×14m | 12 | 30 | Y250M-6 | JZQ750-III | 31.5 |
| φ2.4×18m | 10 - 13 | 37 | Y250M-6 | ZL85-13-1 | 27.16 |
| φ2.4×20m | 10 - 14 | 37 | Y250M-6 | ZL85-13-1 | 27.16 |
| φ3×20m | 25 | 55 | Y250M-4 | ZL100-16-1 | 41.52 |
| φ3×25m | 32 - 36 | 75 | YR280M-4 | ZL100-16-1 | 41.52 |
