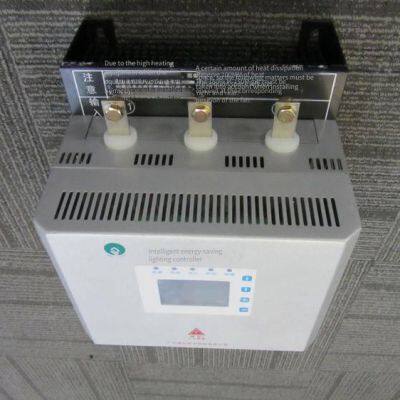

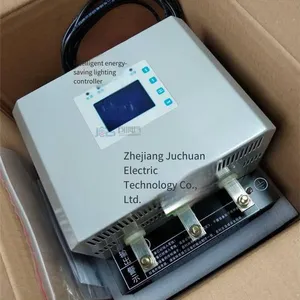

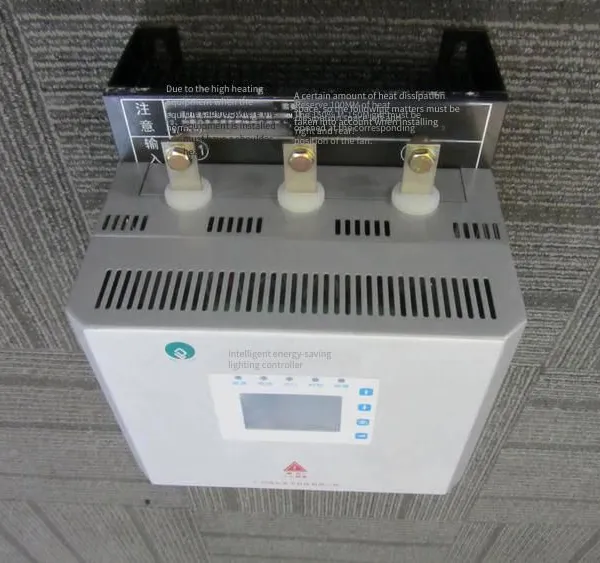

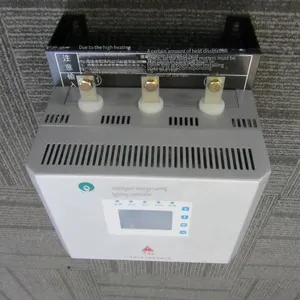

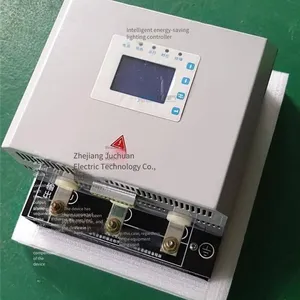

Help CenterThdlxd-zm-0.4-30kw Dynamic Voltage Stabilization and Compensation Device for Street Lights in Huizhou Logistics Park, Lighting Voltage Reduction
Related Products
-
Wuxi Factory Workshop Lighting Retrofit Energy-saving Device Sjdz-0.38-50 Sjdz-0.38-100US$ 152.31 - 153.69MOQ: 1 Piece -
Factory Lighting Street Lamp Step-down, Voltage Stabilization and Dimming Device Dsom-zm-40kva/50kva/60kvaUS$ 453.85 - 461.38MOQ: 1 Unit
-
Building Lighting Energy-saving Renovation Intelligent Control System for pl - px - 416, pl - px - 816, pl - px - 1216US$ 138.46 - 153.69MOQ: 1 Unit
-
L5504rvf, L5506rvf, L5512rvfp Intelligent Energy-saving Lighting Controller Sensing and Control SystemUS$ 246.15 - 253.85MOQ: 1 Unit
-
Sa/s2.16.1, Sa/s4.16.1, Sa/s12.16.1 Community Reconstruction Centralized Lighting Control SystemUS$ 153.69 - 192.31MOQ: 1 Unit
THDLXD-ZM-0.4-30KW Huizhou Logistics Park Street Lamp Dynamic Voltage Stabilization and Compensation Device. The lighting voltage reduction is an intelligent lighting energy saver based on single-chip microcomputer control technology. It is designed in an advanced and unique way. Through reliable hardware and unique control software, it can automatically adjust the daily on and off times of street lamps according to seasonal changes. It can adapt to outdoor, indoor and different degrees of harsh environments. It can also improve the power factor of the lighting power consumption system and balance the three-phase voltage. The device operates stably and reliably, is easy to install and debug. The power saving rate can reach 15%-40% (determined by the application environment), and it can extend the service life of lamps by more than 2 times, greatly reducing the maintenance workload. The street lamp energy saver intelligently tracks the changes in the power supply voltage through the built-in single-chip microcomputer, then provides reasonable energy to the electrical equipment and feeds back the excess energy to the power supply to achieve the purpose of energy saving.
Rated operating current: (Amperes): 20A, 30A, 40A, 45A, 50A, 60A, 63A, 80A, 100A, 120A, 125A, 150A, 160A, 170A, 180A, 190A, 200A, 250A, 300A, 315A, 400A;
Precautions for the street lamp dynamic voltage stabilization and compensation device:
1. Place the device or the auxiliary light meter in a place where there is an obvious change between day and night in natural light. There should be no lighting interference at night to affect the normal startup;
2. Prevent rainwater and ;
3. There should be no objects blocking the lighting area;
4. The hole on one side of the external detector switch plays a role in light measurement, and the light meter on the main controller will not work.
5. The factory line length of the external detector is 2 meters (additional instructions are required).
6. This product should be reliably grounded.
Functional features of the street lamp dynamic voltage stabilization and compensation device:
Excessive power supply causes additional phenomena in electrical equipment. It not only causes power waste but also directly shortens the service life of the equipment itself. It not only wastes electrical energy in vain but also shortens the service life of electrical equipment (due to increased current) and may even burn it out.
The power factor of gas discharge lamps is generally very low, about 0.4 - 0.6. From the perspective of the economic benefits of the lighting circuit, reactive power compensation should be carried out for the lighting load (now most street lamp fixtures are already equipped with reactive power compensation).
The intelligent lighting control cabinet is easy to install. There is no need to change the user's original lighting circuit. It can be directly connected after the electricity meter on the street lamp switch circuit and before the lamp wire switch.
Communication interface: RS-485 or Ethernet.
When powered on, it has a light source preheating function: that is, it does not directly enter the energy-saving mode when powered on to ensure that the lamps are fully lit.
Taking intelligent building control as the starting point, it reflects the continuous innovation and upgrading of intelligent lighting technology. Summarize its advantages, such as avoiding standby energy consumption, eliminating the consumption caused by human negligence, and achieving effectiveness, so as to achieve the ultimate goal of energy conservation. In recent years, with the continuous improvement of living standards, residents' consumption is not limited to daily necessities, but more inclined to spiritual consumption such as services. Their pursuit of life is no longer just to have enough food and clothing, but more towards safety, comfort, energy conservation and environmental protection. In line with the needs of consumers, the structure and decoration of buildings have changed greatly compared with the past. The building materials used tend to be green and environmentally friendly, and the lighting used tends to be intelligent. This not only responds to the call for energy conservation, but also is beneficial to health. In this article, the author mainly explains the intelligent lighting applied in building engineering. By analyzing its differences from traditional lighting, the author highlights its advantages and the reasons why it is widely accepted and recognized by society.
THDLXD-ZM-0.4-30KW Huizhou Logistics Park Street Lamp Dynamic Voltage Stabilization Compensation Device Lighting Voltage Reduction Technology Features
Power supply voltage: 220～250VAC
Input: 50Hz
Output voltage: 0～215VAC (adjustable)
Insulation voltage: ≥2.5kv between the chassis and live parts
Energy consumption
Control: Controlled by time controller/ordinary time controller
Settings: Switch-on and switch-off time; Energy-saving level;
Protection: Overvoltage protection for input and output; Short-circuit protection (fast); Thyristor out-of-control protection;
Heat dissipation: Natural cooling and forced cooling by fans.
Precautions for Street Lamp Dynamic Voltage Stabilization Compensation Device
When using it beyond the rated values of the coil, contact, and on-off life, there may be abnormal situations, smoke, or spontaneous combustion. Electrical parts and equipment generally have a certain failure rate.
The durability varies depending on the usage and usage conditions. When using, please make sure to confirm with the actual machine according to the actual usage conditions.
If it continues to be used in a state of performance aging, there may be abnormal situations, smoke, or fire due to insulation aging.
To prevent personal injury, fire accidents, and social damage caused by product failure or expiration of service life, please adopt safety designs such as redundant design, fire spread prevention design, and anti-misoperation design, as well as regular maintenance measures.
When the relay equipment is powered on, there is a risk of electric shock in the charging part. Please pay attention.
When installing the device (including connection components such as terminal blocks and sockets) and handling faults, please cut off the power supply.
When making terminal connections, please first refer to the internal wiring diagram in the manual and then make the correct connections.
Incorrect connections may cause unexpected malfunctions, abnormalities, spontaneous combustion, etc.
