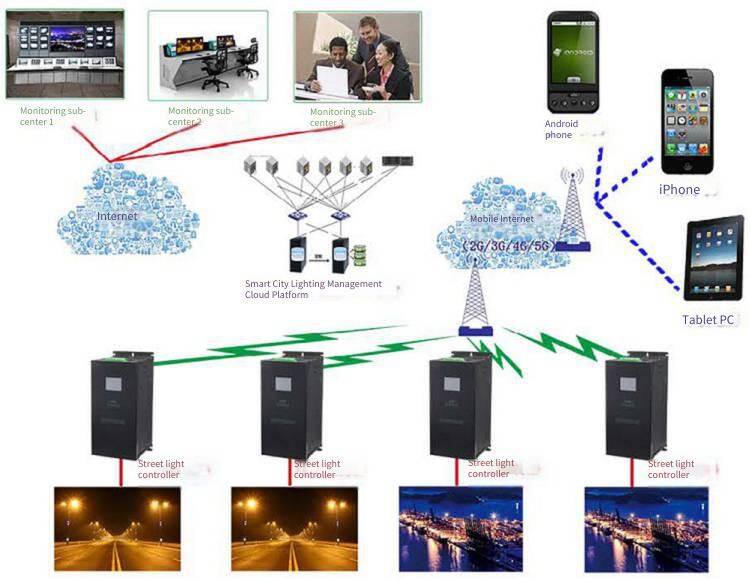

The intelligent street lamp control system is a distributed control system structure composed of a central control room and power-saving monitoring stations distributed in street lamp control boxes in the urban area. Through wireless means, it conducts remote control, remote measurement, and remote communication for dozens or even hundreds of control points distributed outdoors.
The three-remote wireless monitoring work process of JGL-30T, JGL-40T, and JGL-50T landscape street lamp lighting load voltage-stabilizing energy-saving cabinets is all controlled by the central monitoring system. For example, if you want to know the voltage and current data of a certain control point, first click the "contact name" on the computer screen, and then click the "selected measurement" menu. The system will then send out corresponding operation commands through the wireless transceiver device connected to the serial port. At this time, the intelligent terminal at the control point also receives the command sent from the center through the wireless transceiver device, analyzes it, and then sends the currently detected voltage and current data back to the center through the wireless transceiver device and stores it in the central database. The working principles of functions such as remote control, remote communication, fault alarm, and anti-theft alarm are similar to this.
Rated working current: (A): JGL-20T, JGL-25T, JGL-30T, JGL-35T, JGL-40T, JGL-45T, JGL-50T, JGL-60T, JGL-63T, JGL-80T, JGL-100T, JGL-120T, JGL-150T, JGL-160T, JGL-180T, JGL-200T, JGL-225T, JGL-250T, JGL-300T, JGL-350T, JGL-400T,
Technical parameters of landscape street lamp lighting load voltage-stabilizing energy-saving cabinet:
Power supply voltage: 220～250VAC
Input: 50Hz
Output voltage: 0～215VAC (adjustable)
Insulation voltage: ≥2.5kv between the chassis and live parts
Energy consumption
Control: Controlled by time controller/ordinary time controller
Settings: Switch-on and switch-off time; Energy-saving level;
Protection: Overvoltage protection for input and output;
Short-circuit protection; Thyristor out-of-control protection;
Heat dissipation: Natural cooling and forced cooling by fans.
Performance characteristics of landscape street lamp lighting load voltage-stabilizing energy-saving cabinet:
Non-contact voltage regulation; The voltage regulation of the intelligent lighting energy-saving control device quickly and automatically compensates for over- and under-voltage of the power grid, providing a sinusoidal voltage for the load.
Computer automatic control, no manual adjustment required:
Reliable: All electrical energy devices are carefully assembled, debugged, and undergo electrical aging tests with high-quality components, ensuring reliable performance and safety.
The microprocessor stores programs. The programs stored in the microprocessor can control all operations of the equipment, detect the output voltage, bypass, and operating conditions of the intelligent lighting control device, transmit the instructions required for correcting the voltage, and achieve the conversion between the nominal voltage and the power-saving voltage through external control.
JGL-30T JGL-40T JGL-50T Landscape Street Lighting Load Voltage Stabilization and Energy-Saving Cabinet Precautions for Three-Remote Wireless Monitoring
1. The control of the input power supply and bypass of this equipment must be controlled by this equipment. Otherwise, when the equipment detects overcurrent, overvoltage, and equipment failures, it cannot automatically cut off the input power supply and automatically bypass, which may cause damage to the equipment.
2. Do not touch any live parts after the product is powered on.
3. Be sure to cut off the power supply before implementing connections or related operations; otherwise, it may cause electric shock or product damage.
4. Be sure to set a circuit breaker at the input end of this product to ensure safety.
5. When installing the energy-saving controller le = 300A, please ensure that the cabinet is well grounded; do not disassemble and modify the product without permission, otherwise it may cause malfunctions, electric leakage, or even fire.
6. Do not reverse the input/output connections, and do not reverse the phase line and the neutral line;
7. Do not place any items on top of this product.
