The intelligent lighting control scheme SJDZ-0.38-100A/3 and SJDZ-ZM-0.38-60 for sewage treatment plants are professional energy-saving devices designed specifically for comprehensive energy conservation in commercial buildings. The design concept is to optimize the power quality of the power supply system such as the comprehensive power consumption of the building by using special energy-saving reactors and adopt special compensation and filtering technologies. On the premise of not affecting the normal use of equipment, an effective power is output, and the reactive power is reduced, achieving the dual effects of saving electricity and extending the service life of electrical equipment. Parameter specification summary: SJDZ-ZM-0.38-30, SJDZ-ZM-0.38-20, SJDZ-ZM-0.38-40, SJDZ-ZM-0.38-50, SJDZ-ZM-0.38-60, SJDZ-ZM-0.38-80, SJDZ-ZM-0.38-100, SJDZ-ZM-0.38-120, SJDZ-ZM-0.38-150, SJDZ-ZM-0.38-160, SJDZ-ZM-0.38-180, SJDZ-ZM-0.38-200, SJDZ-ZM-0.38-250, SJDZ-ZM-0.38-300, SJDZ-ZM-0.38-400
Technical indicators:
Operating voltage: 220V±20% AC, 50Hz/60Hz, 220V±20% DC;
Rated operating current (current per phase): 20A, 30A, 40A, 50A;
Voltage setting range: 170V - 255V;
Output voltage accuracy: ±15%;
Timing accuracy: ±1 second;
Clock accuracy: ±50ppm;
Full-voltage preheating start time: 1 - 9 minutes can be set;
Overload capacity: Continuously overload 30% for a long time;
Cooling: Forced air cooling;
Operation: In an environment with flammable gases and dust
Operating temperature: -10℃ - +55℃
The lighting show is mainly composed of large outdoor venues, beautiful natural landscapes or large building complexes. It is combined with various projection animations or the screen projection of large projectors. Coupled with the sound, light and electricity technologies, the effect is vivid. In addition, various laser show effects, holographic projections, music fountains, large outdoor screens, LED splicing screens and other adjustable elements are incorporated to create a brand-new urban night view from multiple angles and beautify the urban night sky.
Installation:
(1) Confirm that the power supply voltage meets the rated voltage of this machine: The three-phase input voltage is 380V, and there is a good grounding device.
(2) Before installation, to ensure the safe operation of this product, please check the voltage, current, capacity and other data of the installation equipment carefully before installation to ensure that this product can meet the power requirements of the electrical equipment.
Intelligent lighting control scheme for sewage treatment plants SJDZ-0.38-100A/3, SJDZ-ZM-0.38-60 Scope of application:
1. The voltage stabilizing and power saving device is suitable for energy saving of lighting loads in supermarkets, schools, exhibition halls, parking lots, amusement parks, shopping centers, office buildings, landscape lights, light boxes, street lights, various types of factories, etc.
2. It is especially suitable for various types of lamps such as metal halide lamps, high-pressure sodium lamps, energy-saving lamps, incandescent lamps, fluorescent lamps, etc. It has a better effect when used for lighting equipment in continuous night operations;
3. It is suitable for mixed lighting with mainly inductive loads and a long-term supply voltage higher than the rated voltage.
Functional indicators:
The analog alarm limit can be set. The alarm situation can be judged according to the alarm limit and the alarm can be reported; after power failure, the alarm limit

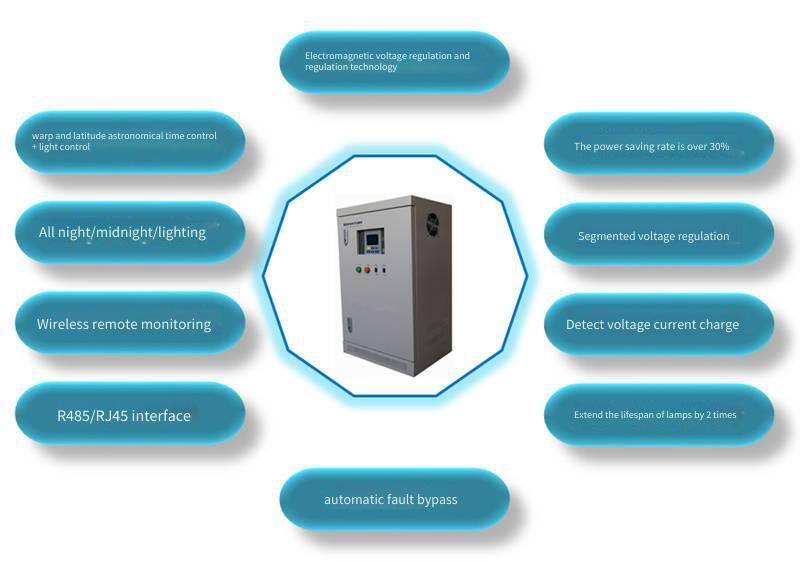

The main circuit of the energy-saving control voltage stabilizing device adopts the principle of compensated electromagnetic voltage regulation, and the voltage regulation circuit adopts an electromagnetic switch matrix, which can realize stepless voltage regulation and output a complete sine wave.
The configured intelligent control integrates functions such as control, detection, monitoring, protection, display, parameter setting, and network communication. Among them, the network communication function can realize real-time monitoring of the equipment through the RS485 communication interface.
The equipment can be directly subjected to step-up and step-down treatment;
Data storage function: Automatically restore all settings before power outage.
It is especially suitable for various types of lamps such as metal halide lamps, high-pressure sodium lamps, energy-saving lamps, incandescent lamps, fluorescent lamps, etc. It has a better effect when used for lighting equipment in continuous night operations;
Highly intelligent control. The series of intelligent lighting control devices are installed at the front end of the line. The built-in intelligent controller, programmable controller, time relay, photosensitive controller, etc. can be used to automatically control the power-saving working curve, thereby regulating the load on the entire line.
Realize hardware modularization, configuration, and device integration. It can intelligently monitor the lighting rate of street lights and the working data of terminals, and control the switching - on and switching - off time. It supports two wireless solutions (self - built radio stations and xxx). It can achieve digital communication compatibility and accident handling functions. It has multiple protections such as lightning protection, etc., ensuring high operational reliability. All data collection features high accuracy and reliability.
