Imported Nitto male external thread 20PM, Japanese NITTO low-pressure quick connector, female connector. Specifications:
Material: Steel (chrome-plated), brass, stainless steel;
Installation dimensions: R1/8 - R1; Rc1/4 - Rc1; G1/4
Working pressure: 1.5MPa (15kgf/cm2) for steel (chrome-plated) and stainless steel; 1.0MPa (10kgf/cm2) for brass;
Sealing material and operating temperature range: Nitrile rubber (-20 to +80 degrees); Fluorine rubber (-20 to +180 degrees)
Imported Nitto male external thread 20PM, Japanese NITTO low-pressure quick connector, female connector. Product features:
It is a highly versatile quick connector used for air piping in the production workshop and hose connections of air tools.
The steel version is suitable for air, and the brass and stainless steel versions are suitable for water. Here, please note the fluid outflow from the plug side during disconnection.
The important components of the steel version are heat-treated to improve strength. In particular, it has excellent wear resistance and durability.
The standardization of the main body material, size, and installation shape can meet a wide range of pneumatic applications.

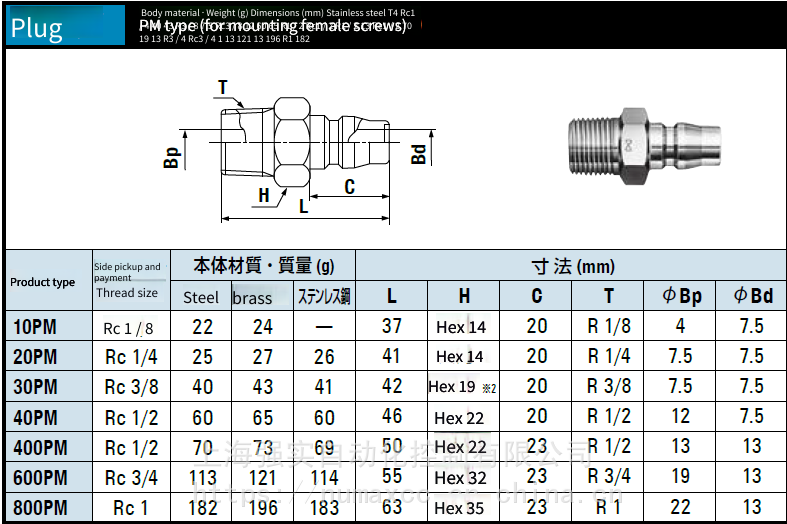

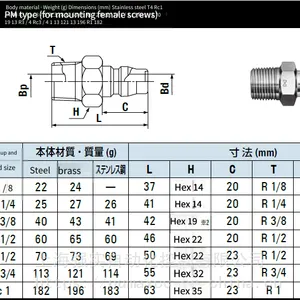

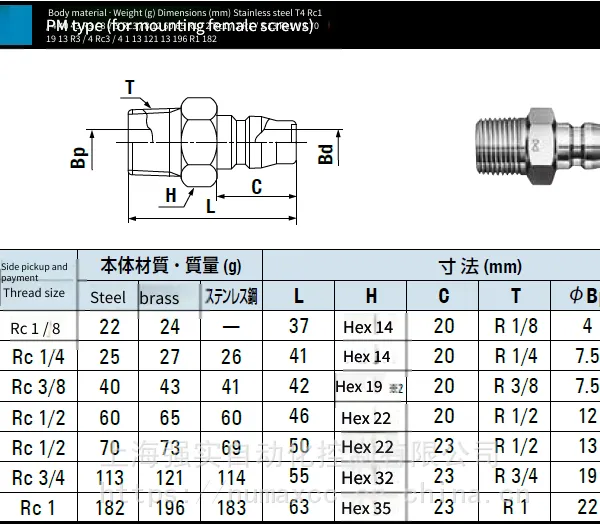

Imported Nitto male external thread 20PM, Japanese NITTO low-pressure quick connector, female connector. The specifications of other female thread installation sleeves are as follows:
10PM: Rc1/8"
30PM: Rc3/8"
40PM: Rc1/2"
400PM: Rc1/2"
600PM: Rc3/4"
800PM: Rc1"
