Home > Products > CNC LATHE > Siemens 808DA Horizontal Heavy Duty CNC Lathe CYK6166x1000 for Metal Working With CE

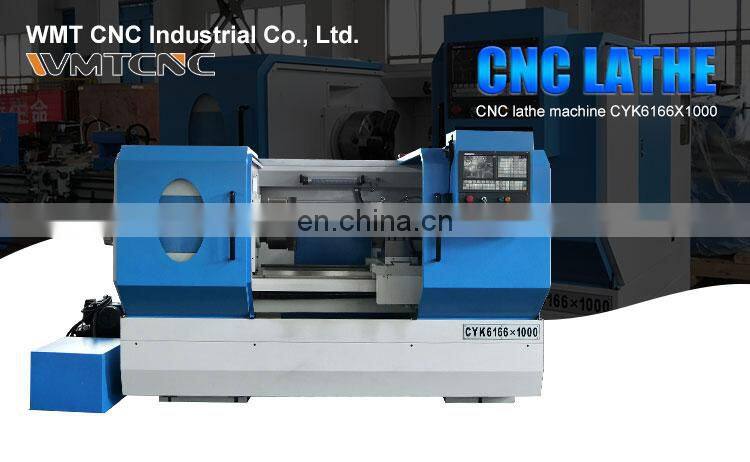

Siemens 808DA Horizontal Heavy Duty CNC Lathe CYK6166x1000 for Metal Working With CE
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
WMT CNC Lathe CK0620A Good Rigid CNC Lathe Machine With CE
-
SK50P Benchtop Cnc Lathe Machining Turning With CE
-
CK40D High Speed Electric Spindle CNC Lathe Machine
-
Professional Model CK0625A Horizontal Cnc Lathe Machine With Fanuc/Siemens/GSK Control System
-
CK36D Factory Sale China Automatic Cnc Turning Lathe Price
-
CAK6166B High Precision Cnc Lathe With Competitive Price
Product Description
Product Description
Machine features of CNC lathe:
1.A high strength,widening the carriage,suitable for heavy cutting.
2.Four position eletric turret
3.Frequency conversion stepless speed regulation
4.Standard configuration : manual chuck
5.Optional configuration : hydraulic chuck
2.Four position eletric turret
3.Frequency conversion stepless speed regulation
4.Standard configuration : manual chuck
5.Optional configuration : hydraulic chuck
Specification | CYK6150 | CYK6160 | CYK6166 | ||
Max swing over bed | 500mm | 600mm | 660mm | ||
Bed width | 420mm | 420mm | 420mm | ||
Max swing over cross slide | 260mm | 360mm | 420mm | ||
Max length of work piece | 1000mm | 1500mm | 2000mm | ||
Spindle bore | Ф82/105mm | ||||
Spindle taper | 1:20(C8/D11) | ||||
Power of the main motor | 5.5/7.5kw | ||||
Spindle speed | 40-180/180-720/720-1400rpm | ||||
Z axis screw Dia.xpitch | Ф50x10 | ||||
X axis screw Dia.xpitch | Ф25x4 | ||||
Tool positions of the turret | 4 25x25mm | ||||
Diameter of the tailstock | 75mm | ||||
Working travel of the tailstock | 150mm | ||||
Taper of the tailstock | MT5mm | ||||
Net weight | 2500kg | 2800kg | 3100kg | ||
Packing size | 1000mm 2880x1600x1850mm | ||||
1500mm 3380x1600x1850mm | |||||
2000mm 3880x1600x1850mm | |||||
Details Images

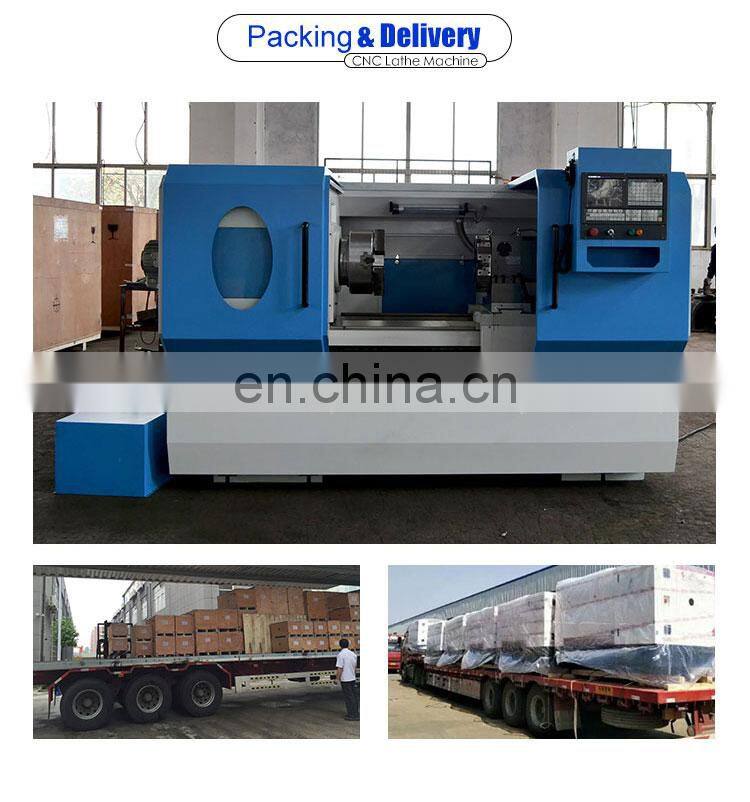

Package&Delivery
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
