Factory Direct Sell SWL550/1000 35-degree CNC Slant Bed Turning Center Lathe Machine From China
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Efficient TX700 3-axis CNC Turning Center Lathe Machine With 12-station Power Turret for MetalworkingNegotiableMOQ: 1 -
High Speed Spindle VK450 Vertical Type Cnc Lathe Machine With 8-station TurretNegotiableMOQ: 1
-
VK600 Vertical Type Cnc Lathe Machine With 8-station TurretNegotiableMOQ: 1
-
Dual Spindle SWL450S/650 35-degree CNC Turning Center Slant Bed Lathe Machine From ChinaNegotiableMOQ: 1
-
35 Degree Slant Bed TX500EY Cnc Lathe Turning CenterNegotiableMOQ: 1
Product Description

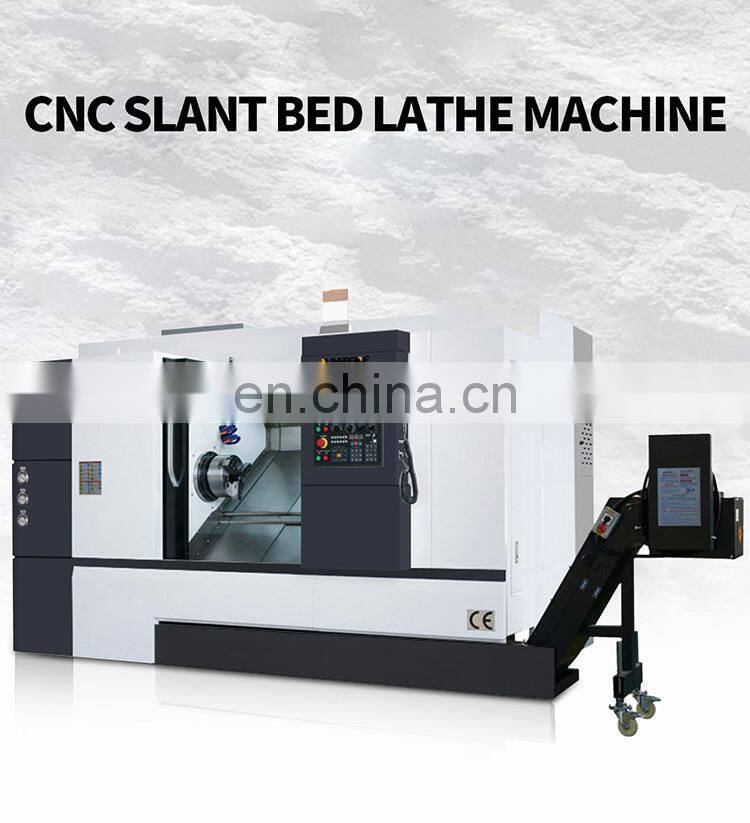

SWL550/1000 35-degree CNC slant bed turning center lathe machine
Main Features:
1. The SWL Series high-performance turning centers were designed from to provide setup flexibility, superb rigidity, and excellent thermal stability.
2. These machines offer high cost performance.

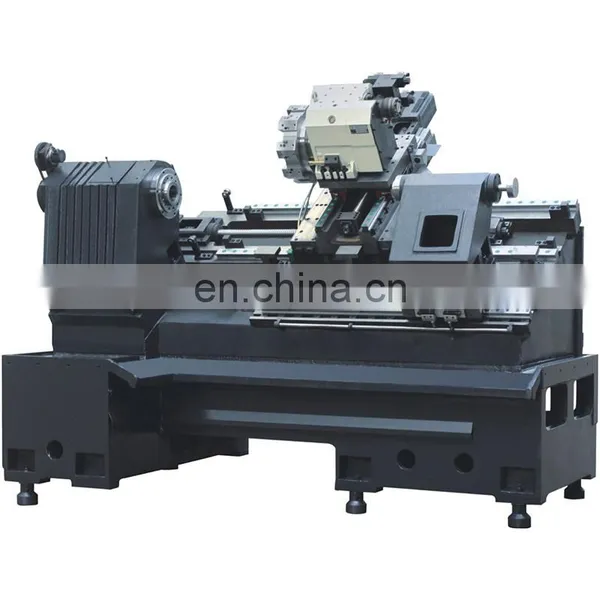

3. SWL lathe have a heavy-duty cast base with “true align” slant bed design.
4. The machine bed, headstock, turret and tailstock are aligned on the same plane.
5. This unique design feature reduces heat built-up and resulting thermal expansion.
6. The net result is higher precision machine tool.
7. Additional resulting efficiencies from the “true align” design are greater rigidity and smoother operation which provides a variety of benefits.
8. You can expect to produce highly accurate parts with extremely fine surface finishes.
9. There are multiple benefits to having a lathe that combines such a large sized “vibration damping” solid, cast base.
10. PLUS, properly aligned and balanced components.
11. True slant bed minimizes the impact of thermal expansion to precision.
12. 35 degree bed slant is more convenient for scrap iron.
13. Better dynamics and higher precision.
14. It realizes an optimized combination of high-precision, high bearing capacity, good running speed and it is more durable.
15. Increasing the versatility and automation of the lathe.
16. Better water-resistant and scrap-iron-resistant.
Some of these benefits include:
Smoother slide surface operation;
Higher speed and accuracy;
Fewer machine adjustments and lower maintenance costs;
Shortened machine warm-up time;
Lower power consumption.
Specification |
Unit |
SWL550/1000 |
||
Capacity |
Chuck size |
inch |
12",*15" |
|
Max. swing dia. over bed |
mm |
Ø550 |
||
Max. length of workpiece |
mm |
1000 |
||
Max. swing dia. over slide |
mm |
Ø300 |
||
Spindle |
Spindle bore |
mm |
Ø120 |
|
Max. dia. of through-hole |
mm |
Ø110 |
||
Spindle nose |
type |
A2-11 |
||
Spindle speed |
rpm |
1000 |
||
Main motor powe |
kW |
11/15,*15/18.5 |
||
Axis |
X axis travel |
mm |
280 |
|
Z axis travel |
mm |
1000 |
||
X/Z rapid traverse |
m/min |
15/20 |
||
Turret |
Center height |
mm |
100 |
|
No. of tool stations |
nos |
8, *12 |
||
Tool shank size |
mm |
25X25 |
||
Tailstock |
Type of tailstock |
Hydraulic,*HPT,*SST |
||
Taper of tailstock quill |
MT5 |
|||
Travel of tailstock quill |
mm |
150 |
||
Travel of tailstock |
mm |
100-1000 |
||
Structure |
Slant bed degree |
35 |
||
Guideway type |
LM |
|||
Others |
Power capacity |
kVA |
20 |
|
Overall dimension (LxWxH) |
mm |
3350X2000X2350 |
||
Weight (about) |
kg |
5900 |
||

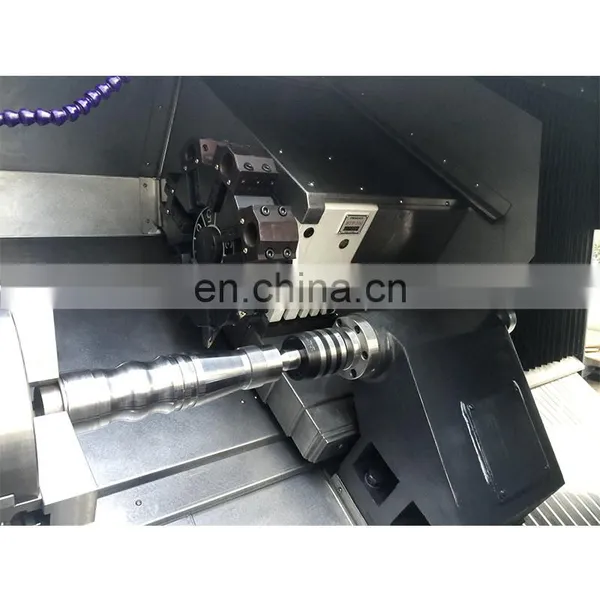

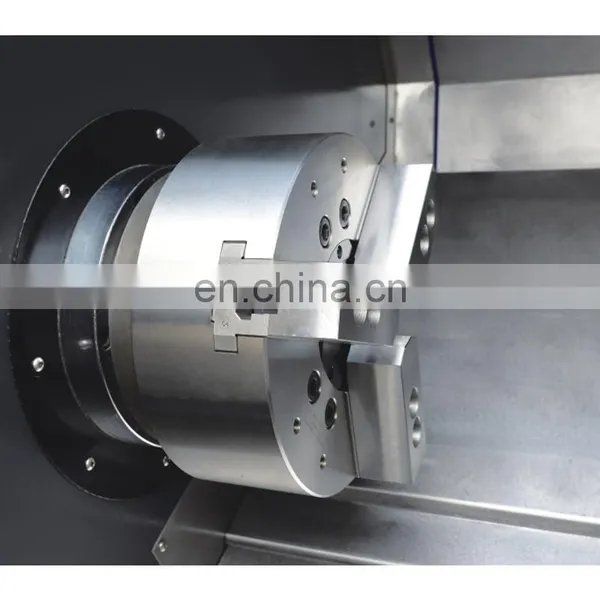

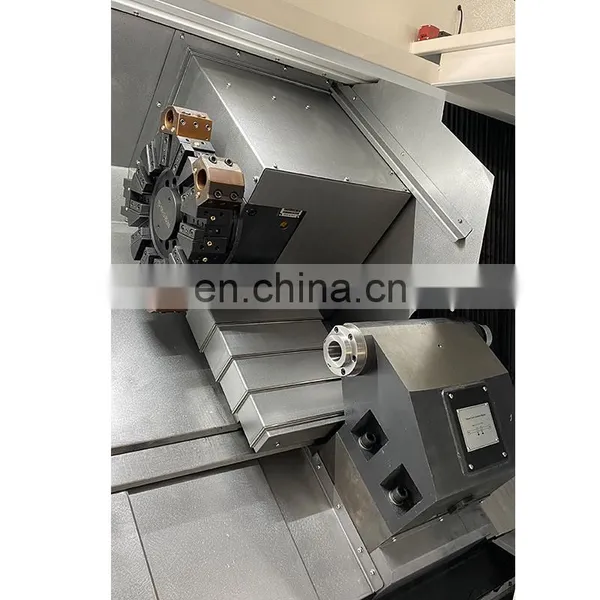

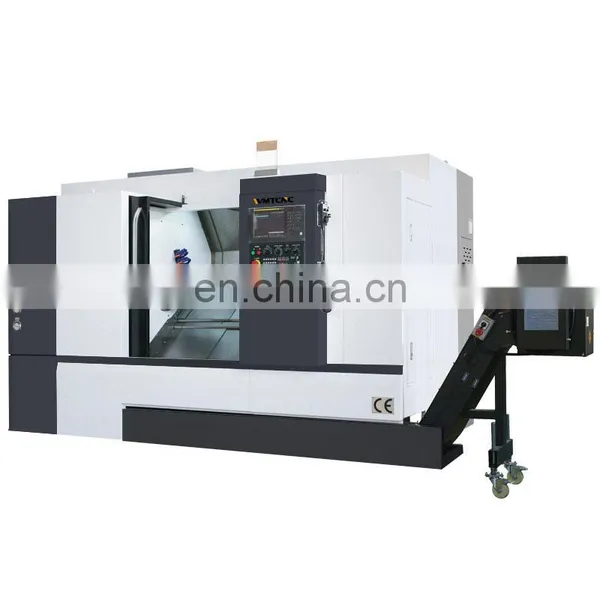

Detailed Images
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
