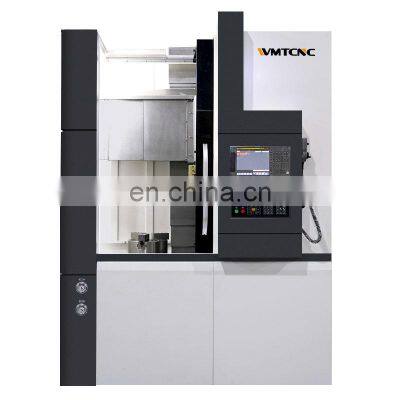

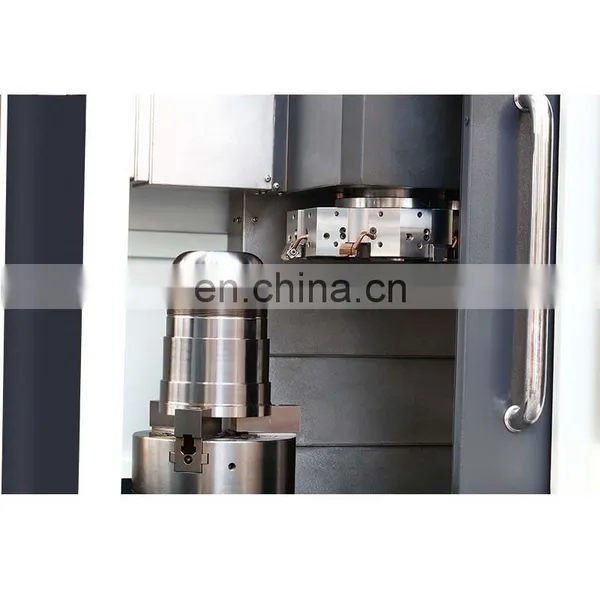

High Speed Spindle VK450 Vertical Type Cnc Lathe Machine With 8-station Turret

High Speed Spindle VK450 Vertical Type Cnc Lathe Machine With 8-station Turret thumbnail-1
High Speed Spindle VK450 Vertical Type Cnc Lathe Machine With 8-station Turret thumbnail-2
High Speed Spindle VK450 Vertical Type Cnc Lathe Machine With 8-station Turret thumbnail-3
High Speed Spindle VK450 Vertical Type Cnc Lathe Machine With 8-station Turret thumbnail-4
High Speed Spindle VK450 Vertical Type Cnc Lathe Machine With 8-station Turret thumbnail-5
High Speed Spindle VK450 Vertical Type Cnc Lathe Machine With 8-station Turret photo-1
High Speed Spindle VK450 Vertical Type Cnc Lathe Machine With 8-station Turret photo-2
High Speed Spindle VK450 Vertical Type Cnc Lathe Machine With 8-station Turret photo-3
High Speed Spindle VK450 Vertical Type Cnc Lathe Machine With 8-station Turret photo-4
High Speed Spindle VK450 Vertical Type Cnc Lathe Machine With 8-station Turret photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Jingjiang Fuji Technology Co., Ltd.
Gold Verified Supplier
4Yrs
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
High speed spindle VK450 vertical type cnc lathe machine with 8-station turret
Main Features:
1. Space saving, footprint 50% smaller. 2. Easy setup. 3. No deflection from gravity. 4. Weight doubled, power tripled. 5. Standard 8-station turret-stands up for versatile production requirements. 6. Compact design, plus, square base casting minimizes floor space requirements and increases anti-vibration forces. 7. High speed spindle unit with powerful servo drive motor-offers high speed finish cutting, and low speed heavy duty cutting in the same machine
Specification
Unit
VK450
Capacity
Max. swing dia
mm
Ø550
Max. cutting dia
mm
Ø450
Max. cutting height
mm
420
Chuck
Chuck type
Hydraulic chuck
Chuck size
inch
12"
Spindle
Spindle speed
rpm
2500
Main motor power
kW
15/18
Spindle nose
A2-8
Turret
Center height
mm
125
No. of tool
nos
8-station
Tool shank size
mm
32X32
Axis
X/Z axis travel
mm
350(+300:-50)/450
X/Z axis rapid traverse
m/mm
15/18
Accuracy
Positioning X/Z
mm
0.015/0.015
Repeatability X/Z
mm
0.005.0.008
Matching
IT
IT6
Others
Power consumption
kVA
22
Overall dimension (LxWxH)
mm
1850X1700X2500
Weight (about)
kg
7500

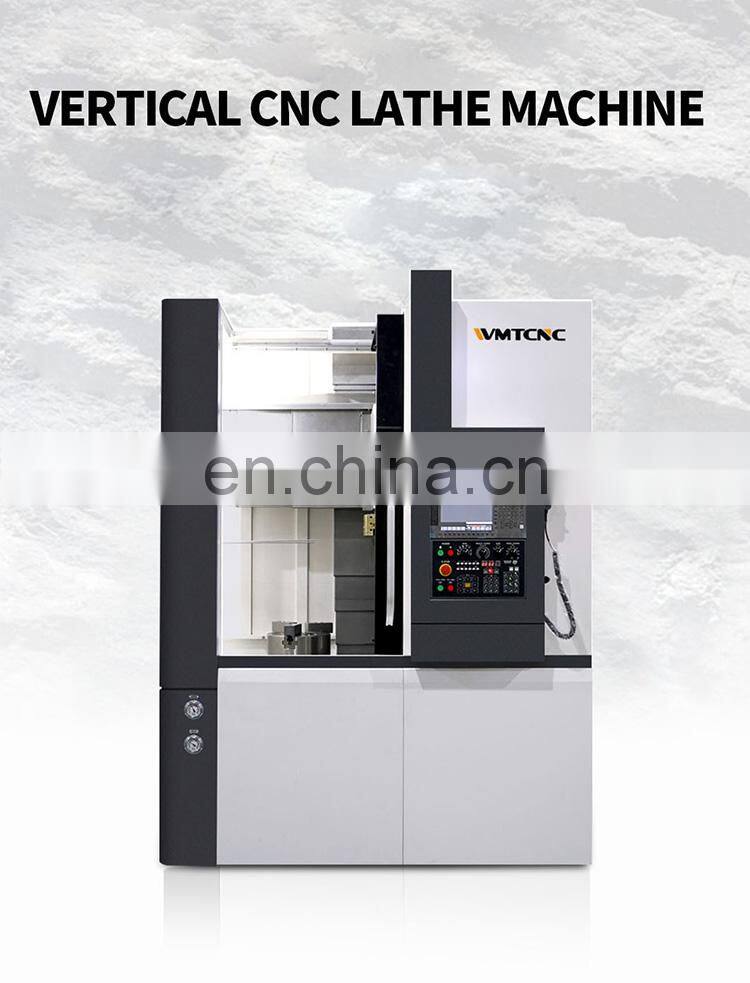

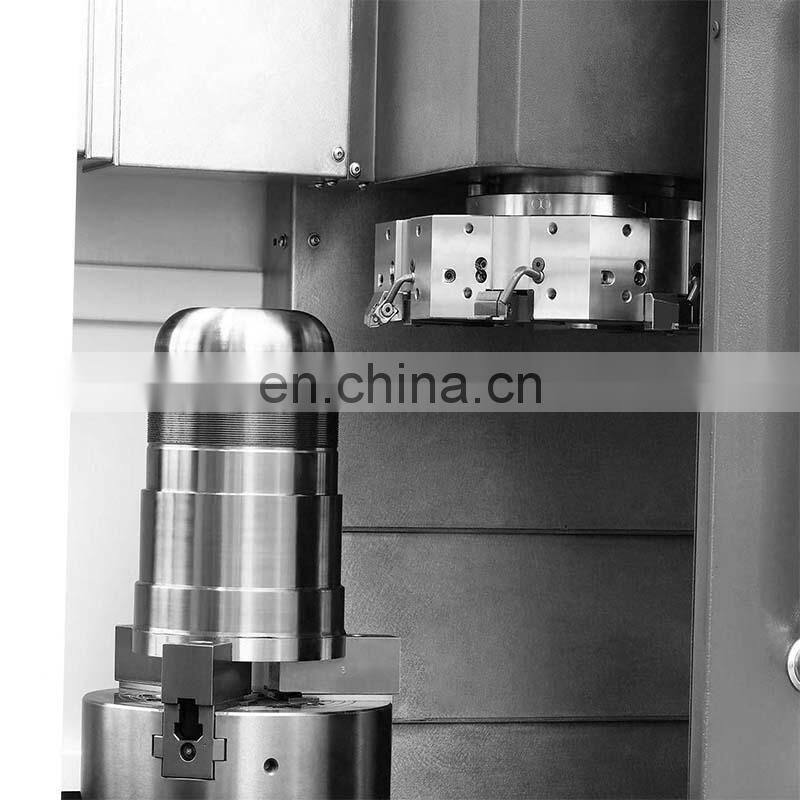

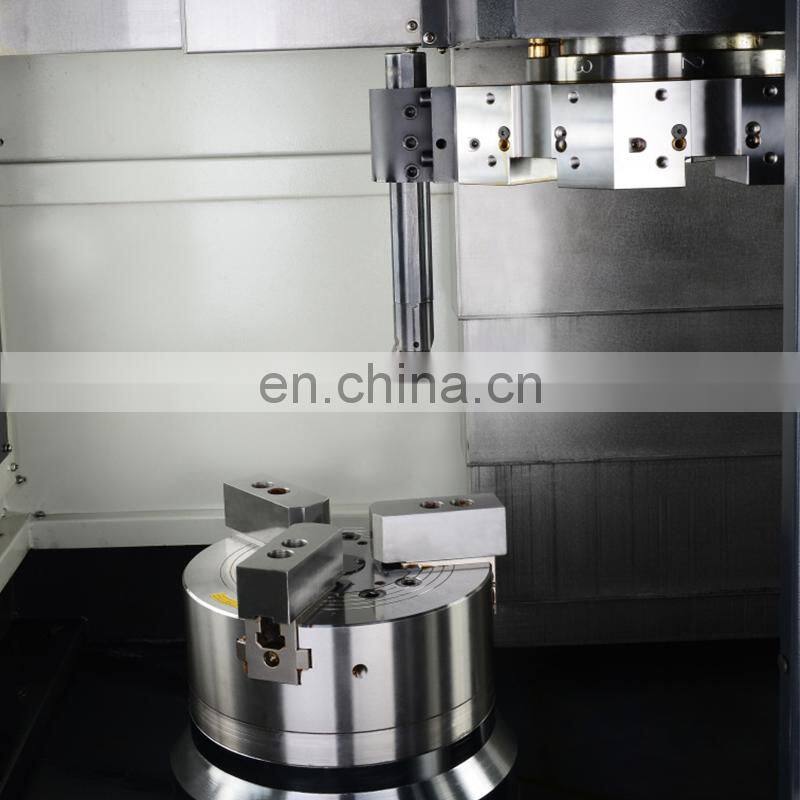

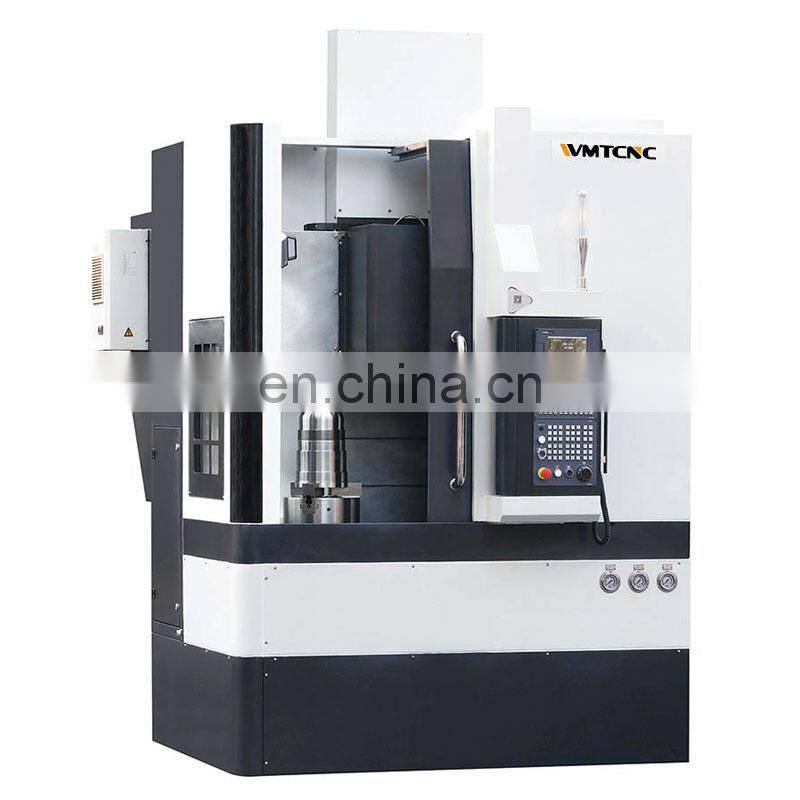

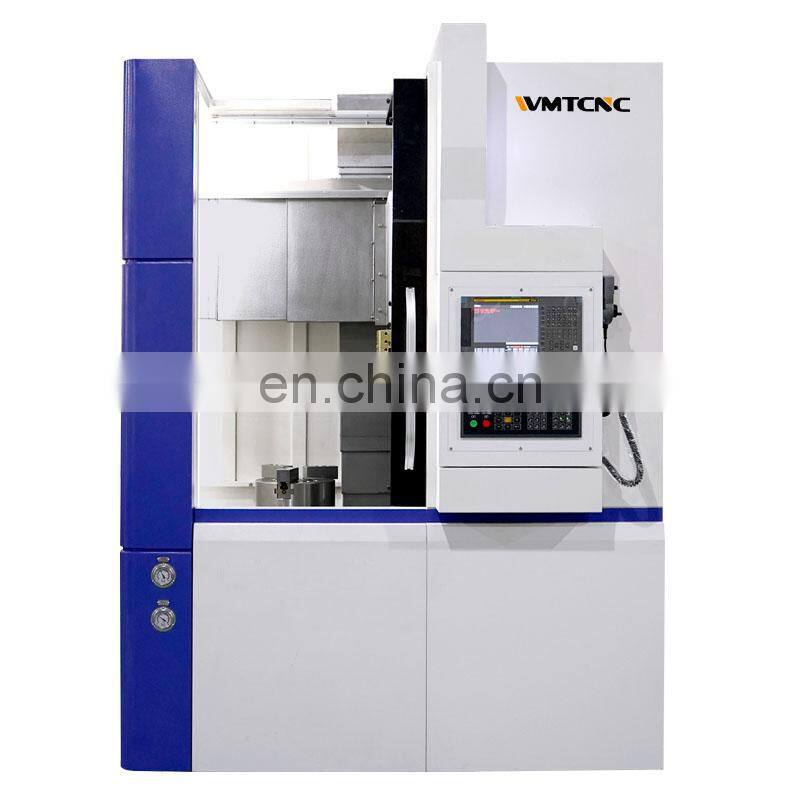

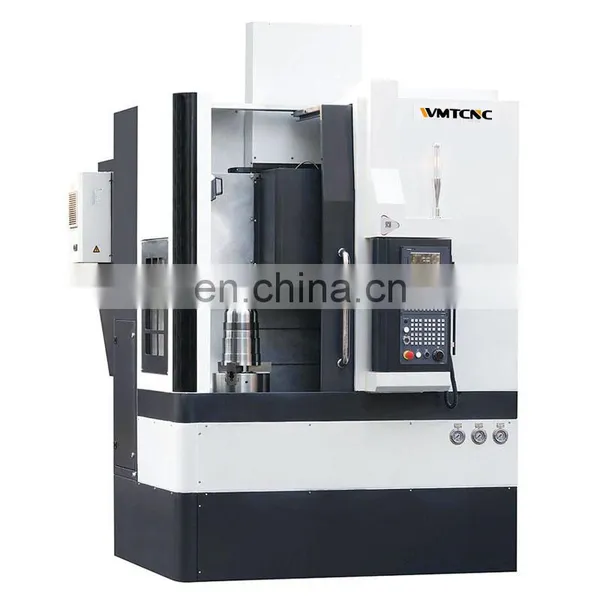

Detailed Images
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.

Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4: What’s the MOQ?
A4: One set only.

Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.

Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
