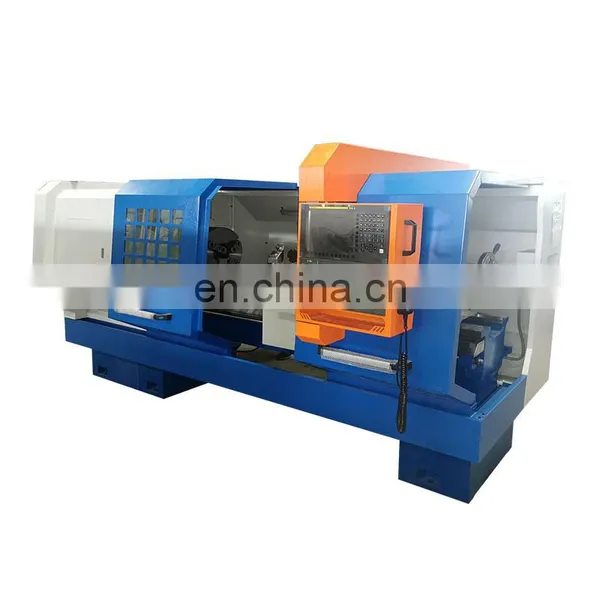

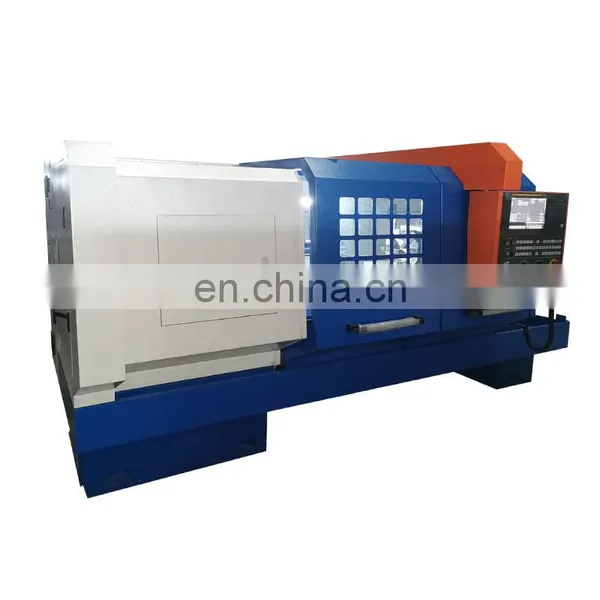

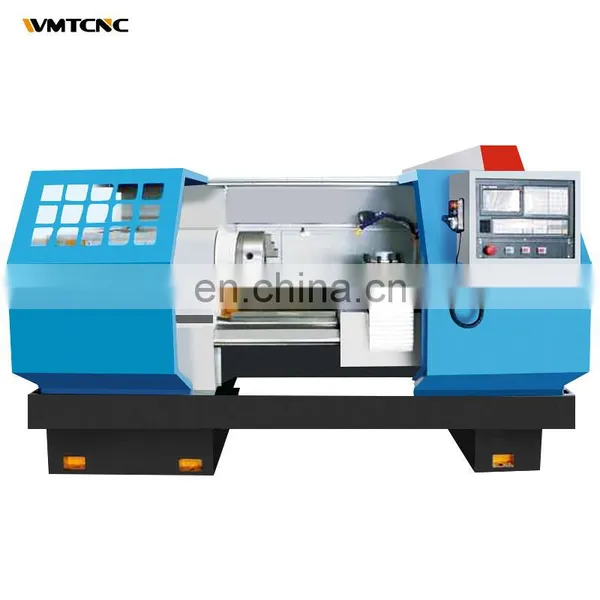

Cnc Lathe Machines Manufacturer China Big Spindle Bore Flat Bed Cnc Lathe CDK6150 With GSK Controller for Industry Metalworking
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cnc Lathe Machine CK32A3-S High Precision Cnc Lathe Swiss Type for Metal Turning and Milling in ChinaNegotiableMOQ: 1 -
Cnc Lathe CK32A3 High Precision Cnc Lathe Swiss Type for Metal Turning and Milling in ChinaNegotiableMOQ: 1
-
High Precision QK1319 1500mm Big CNC Pipe Threading Lathe MachineNegotiableMOQ: 1
-
Factory Sell SHL450/320 45-degree CNC Slant Bed Lathe MachineNegotiableMOQ: 1
-
Factory Direct Sell SWL550/1000 35-degree CNC Slant Bed Turning Center Lathe Machine From ChinaNegotiableMOQ: 1
Product Description
Big Spindle Bore Flat Bed CNC Lathe CDK6150 for Industry Metalworking
Specification |
CDK6150 |
CDK6160 |
|||||
NC System |
Standard: GSK980TC3 Optional: Fanuc 0i TF; Fanuc 0i Td; SIEMENS808D; KND K1000Ti; GSK980TDC |
||||||
Max. Dia. Swing over Bed |
mm |
500 |
600 |
||||
Max. Dia. Swing over Cross Slide |
mm |
270 |
370 |
||||
Max. Length of Workpiece |
mm |
1000 |
1000 |
||||
Width of Bed |
mm |
400 |
400 |
||||
Spindle Bore |
mm |
110/140/160/170 |
200 |
||||
Power of Spindle Motor |
kw |
7.5 |
7.5 |
||||
Mode of Spindle Speed |
SteplessFrequency Speed Adjustment |
SteplessFrequency Speed Adjustment |
|||||
Range of Spindle Speed |
rpm |
150-1000/70-800/70-700/70-700 |
70-600 |
||||
Max. Travel of X/Z |
mm |
X: 310 Z: 800 |
X: 310 Z: 800 |
||||
X/Z Rapid Speed |
mm/min |
4000 |
4000 |
||||
X Axis Motor |
Speed |
rpm |
2500 |
2500 |
|||
Torgue |
N.m |
6 |
6 |
||||
Power |
kw |
1.5 |
1.5 |
||||
Z Axis Motor |
Speed |
rpm |
1500 |
1500 |
|||
Torgue |
N.m |
10 |
10 |
||||
Power |
kw |
1.5 |
1.5 |
||||
Tailstock Quill |
Diameter |
mm |
75 |
75 |
|||
Travel |
mm |
150 |
150 |
||||
Taper |
Morse NO.5 |
Morse NO.5 |
|||||

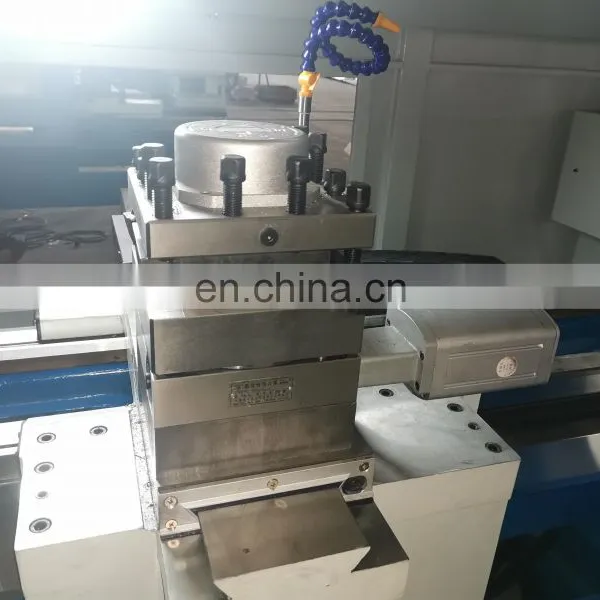

Electric Toolpost |
Toolpost |
Vertical 4-position Toolpost |
Vertical 4-position Toolpost |
||||
Size |
mm |
192*192 |
192*192 |
||||
Tool Change Time |
s |
2.6 |
2.6 |
||||
Chuck |
3-jaw Chuck |
3-jaw Chuck |
|||||
Positioning Accuracy |
mm |
0.02 |
0.02 |
||||
Repositioning Accuracy |
mm |
0.01 |
0.01 |
||||
Overall Dimension |
mm |
2700*1450*1730 |
2700*1450*1730 |
||||
Machine Weight |
T |
2.5/2.7/2.9/3.0 |
3.2 |
||||
Detailed Images
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
