High Precision QK1319 1500mm Big CNC Pipe Threading Lathe Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Sell SHL450/320 45-degree CNC Slant Bed Lathe MachineNegotiableMOQ: 1 -
Factory Direct Sell SWL550/1000 35-degree CNC Slant Bed Turning Center Lathe Machine From ChinaNegotiableMOQ: 1
-
Efficient TX700 3-axis CNC Turning Center Lathe Machine With 12-station Power Turret for MetalworkingNegotiableMOQ: 1
-
High Speed Spindle VK450 Vertical Type Cnc Lathe Machine With 8-station TurretNegotiableMOQ: 1
-
VK600 Vertical Type Cnc Lathe Machine With 8-station TurretNegotiableMOQ: 1
Product Description
QK1319 CNC pipe threading lathe machine main features:
1. CNC pipe thread lathe is a special machine tool for pipe thread turning machining.
1. CNC pipe thread lathe is a special machine tool for pipe thread turning machining.
2. Its feature is that the spindle bore is relatively large (usually 130 mm or more), and the spindle box has chucks before and after, in order to facilitate the clamping and processing of large-diameter pipes and rods.
3. Can turn metric, imperial cylindrical, tapered pipe thread, can also be used to replace outer lathes, boring holes, internal
and external taper surfaces, and planes, etc. in lathes.
4. The lathes are widely used in the petroleum sector, the gold manufacturing department, chemical industry, hydropower, and geological exploration.
5. Other departments deal with the machining of drill pipes, drill boats, and casings.
3. Can turn metric, imperial cylindrical, tapered pipe thread, can also be used to replace outer lathes, boring holes, internal
and external taper surfaces, and planes, etc. in lathes.
4. The lathes are widely used in the petroleum sector, the gold manufacturing department, chemical industry, hydropower, and geological exploration.
5. Other departments deal with the machining of drill pipes, drill boats, and casings.
Specification |
QK1319 |
Max.swing over bed |
Ф630mm |
Max.swing over carriage |
Ф340mm |
Max. cutting length |
1000/1500/3000mm |
Rail width |
550mm |
Spindle bore |
Ф200mm |
Taper of spindle bore |
MT6 |
Chuck size |
500mm |
Range of spindle speed |
(L):25-120rpm (H):100-500rpm |
X-axis travel |
350mm |
Z-axis travel |
850/1350/2850mm |
X/Z rapid speed |
4m/min |
Electronic turret |
4 -station |
Max.section of tool |
32x32mm |
Stroke of tailstock sleeve |
250mm |
Diameter/Hole of tailstock sleeve |
Ф100mm/MT5 |
Main motor power |
11kw |
Overall dimensions L x W x H |
2100/2420/2860/3320x1600x1830mm |
Packing size L x W x H |
2300/2620/3060/3520x1800x2030mm |
Net weight |
5000/5500/6000kg |
Gross weight |
6000/6550/7000kg |

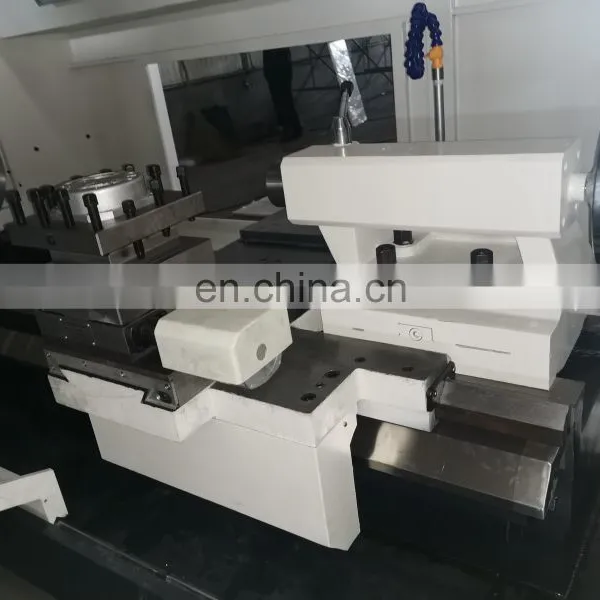

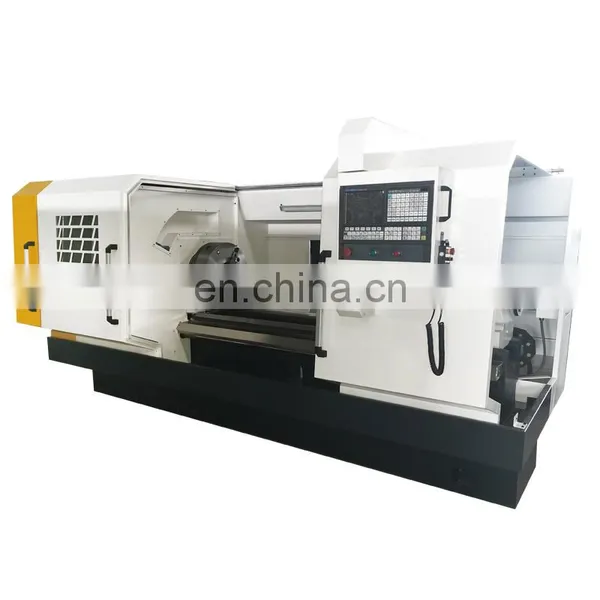

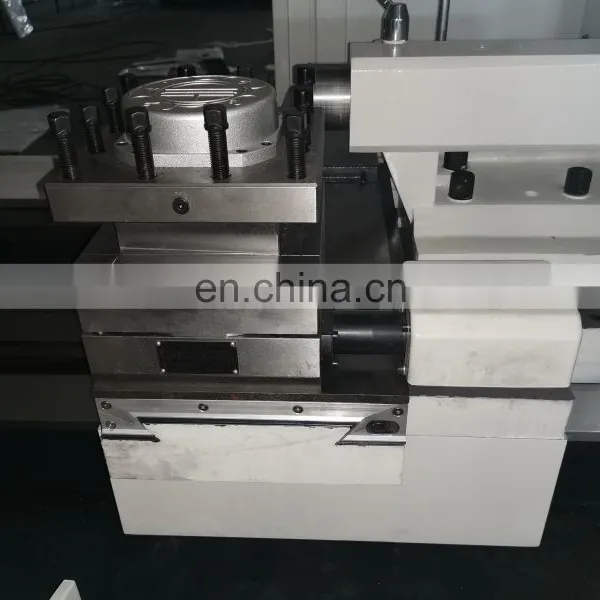

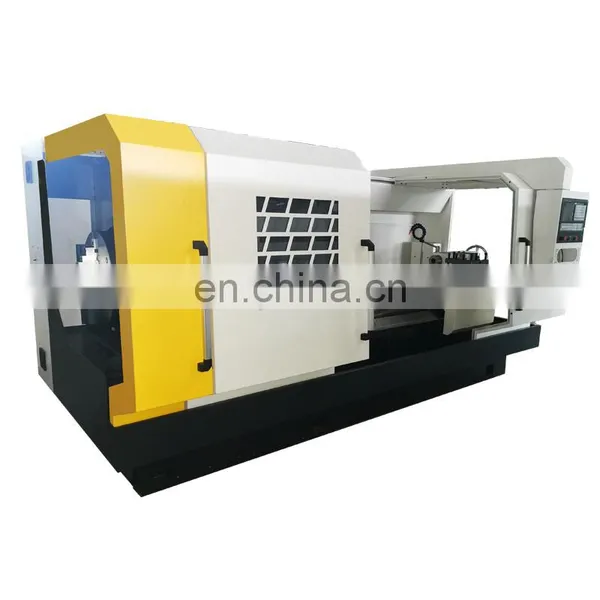

Detailed Images
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
