efficient TX700 3-axis CNC turning center lathe machine with 12-station power turret for metalworking
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
High speed spindle VK450 vertical type cnc lathe machine with 8-station turret
-
VK600 vertical type cnc lathe machine with 8-station turret
-
Dual spindle SWL450S/650 35-degree CNC turning center slant bed lathe machine from China
-
35 degree slant bed TX500EY cnc lathe turning center
-
China factory SWL500/750 35-degree slant bed CNC lathe machine for sale
-
Slant bed lathe TCK50A heavy duty slant bed cnc lathe machine
Product Description
Product Description

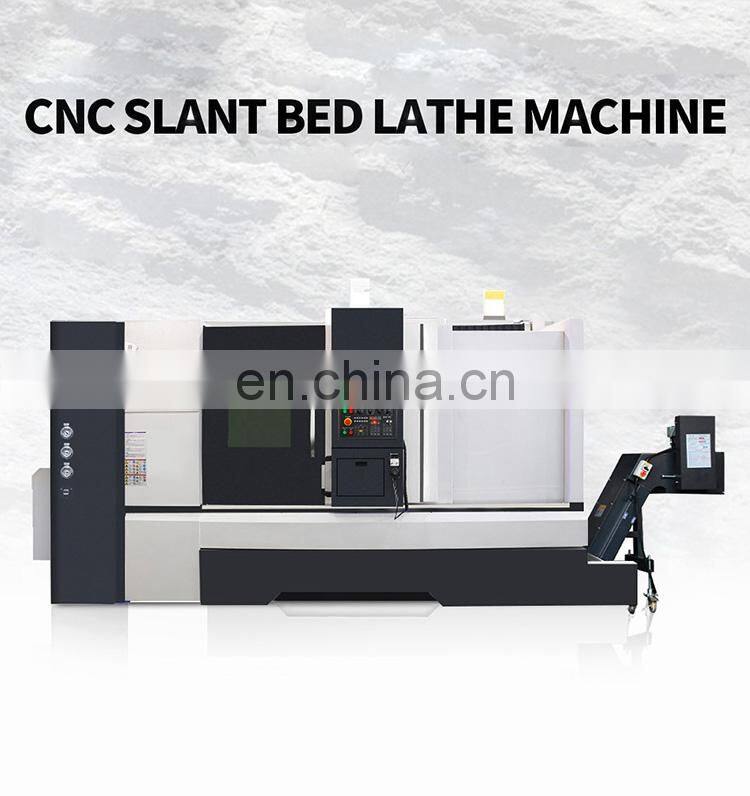

TX700 3-axis CNC turning center lathe machine
Main Features:
1. WMTCNC 3-Axis Turning Centers TX700 is a turning center able to flexibly handle various workpieces.

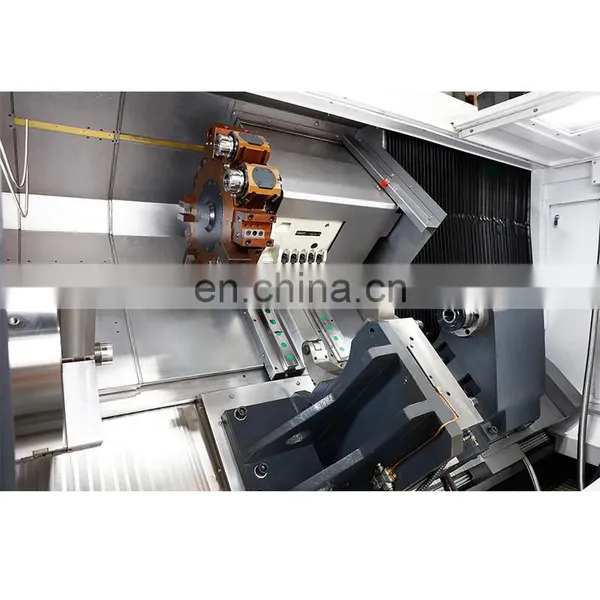

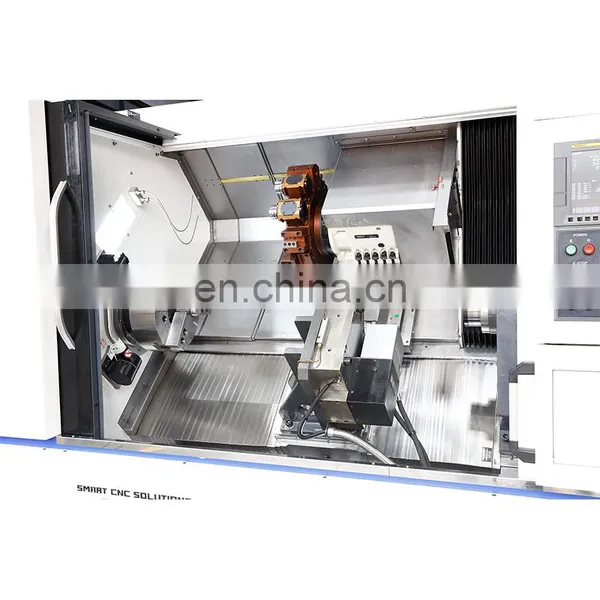

2. The 12-station Power Turret enables the operator to machine simple to complex workpieces with one easy setup operation.
3. These models also feature a Direct Drive Spindle( Integrated Motor) that reaches high speed while maintaining strict rigidity and exceptional C-Axis accuracy.
4. The models can satisfy a wide range of users from beginners of shop production to group corporation with experienced technicians.
5. WMTCNC Turning center have a heavy-duty cast base with "True Align"Slant bed design. 6. The machine bed, head stock, turret and tailstock are aligned on the same plane.
7. This Unique design feature reduces heat build-up and resulting thermal expansion.
8. Cylindrical Roller type guideways and large diameter high precision ballscrew provides improved rigidity and higher accuracy.
9. With a very low coefficient of friction, they consume less power and do not require adjustment.
10. The tailstock body is positioned by hydraulic traction bar on roller linear guideway.
11. Tremendous reduction in set up, compared to hydraulic sleeve type manual tailstock.
Unit | TX700 | ||
Capacity | Chuck size | inch | 15 |
Max. swing dia. over bed | mm | 1300 | |
Max. length of workpiece | mm | Ø650 | |
Max. swing dia. over slide | mm | Ø500 | |
Spindle | Spindle bore | mm | Ø105 |
Max. dia. of through-hole | mm | Ø91 | |
Spindle nose | type | A2-8 | |
Spindle speed | rpm | 1800 | |
Main motor power | kW | Belt:22/18.5 | |
Axis | X axis travel | mm | 280 |
Z axis travel | mm | 1300 | |
X/Z rapid traverse | m/min | 15/20 | |
Turret | No. of tool stations | pcs | 12 |
Tool shank size | BMT65 | ||
Max. speed of driving tool | rpm | 4000,*5000 | |
Tailstock | Type of tailstock | SST-LM,*SPT | |
Taper of tailstock quill | MT5 | ||
Travel of tailstock | mm | 100-1300 | |
Others | Power capacity | kVA | 45 |
Overall dimension (LxWxH) | mm | 4550X2270X2550 | |
Weight (about) | kg | 10500 |

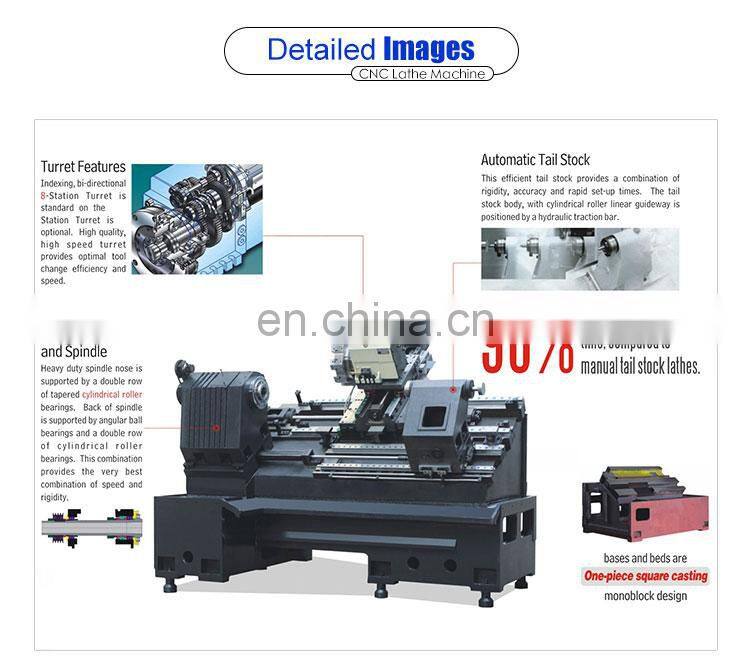

Detailed Images
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
