8-station Turret Linear Guideway SWL650/1500 Cnc Slant Bed Turning Center With CE Certificate

8-station Turret Linear Guideway SWL650/1500 Cnc Slant Bed Turning Center With CE Certificate thumbnail-1
8-station Turret Linear Guideway SWL650/1500 Cnc Slant Bed Turning Center With CE Certificate thumbnail-2
8-station Turret Linear Guideway SWL650/1500 Cnc Slant Bed Turning Center With CE Certificate thumbnail-3
8-station Turret Linear Guideway SWL650/1500 Cnc Slant Bed Turning Center With CE Certificate photo-1

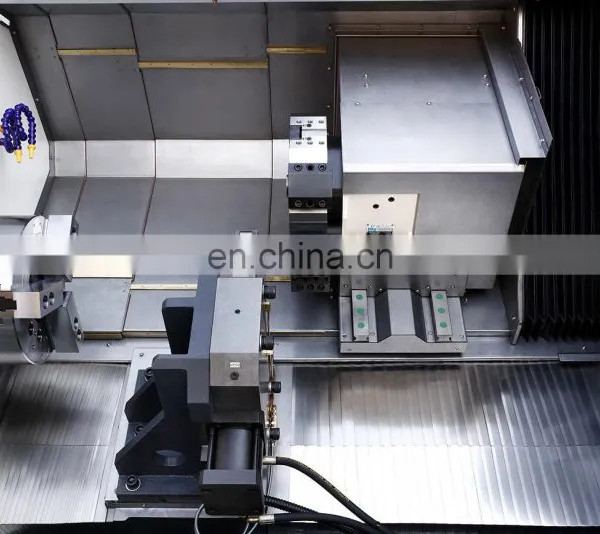

8-station Turret Linear Guideway SWL650/1500 Cnc Slant Bed Turning Center With CE Certificate photo-2

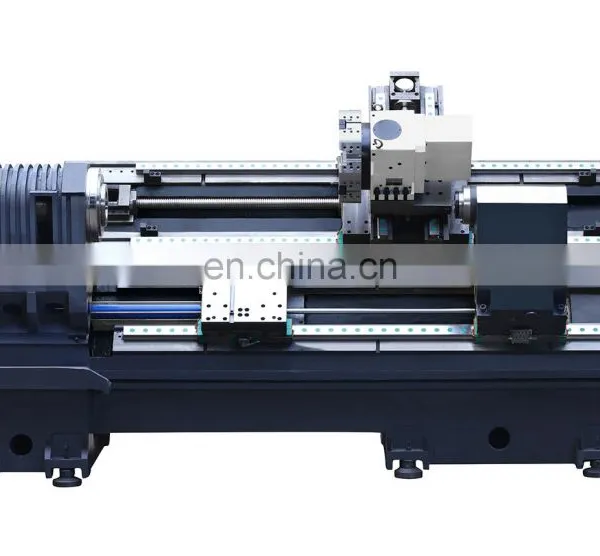

8-station Turret Linear Guideway SWL650/1500 Cnc Slant Bed Turning Center With CE Certificate photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Jingjiang Fuji Technology Co., Ltd.
Gold Verified Supplier
4Yrs
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Description
Some of these benefits include:
1. Smoother slide surface operation;
2. Higher speed and accuracy;
3. Fewer machine adjustments and lower maintenance costs;
4. Shortened machine warm-up time;
5. Lower power consumption.

Main Features:
1. The WMTCNC SWL Series high-performance turning centers were designed from to provide setup flexibility, superb rigidity, and excellent thermal stability. 2. These machines offer high cost performance. SWL lathe have a heavy-duty cast base with “true align” slant bed design. 3. The machine bed, headstock, turret and tailstock are aligned on the same plane. 4. This unique design feature reduces heat built-up and resulting thermal expansion. 5. The net result is higher precision machine tool. 6. Additional resulting efficiencies from the “true align” design are greater rigidity and smoother operation which provides a variety of benefits. 7. You can expect to produce highly accurate parts with extremely fine surface finishes. 8. There are multiple benefits to having a lathe that combines such a large sized “vibration damping” solid, cast base.
9. PLUS, properly aligned and balanced components. 10. True slant bed minimizes the impact of thermal expansion to precision. 11. 35 degree bed slant is more convenient for scrap iron; 12. Better dynamics and higher precision; 13. It realizes an optimized combination of high-precision, high bearing capacity, good running speed and it is more durable; 14. Increasing the versatility and automation of the lathe; 15. Better water-resistant and scrap-iron-resistant.
Specification
Unit
SWL650/1500 (/2000)
Capacity
Chuck size
inch
15",*12"
Max. swing dia. over bed
mm
Ø650
Max. length of workpiece
mm
1320,*1820(C2C 1500,*2000)
Max. swing dia. over slide
mm
Ø500
Spindle
Spindle bore
mm
Ø105
*Ø120
Max. dia. of through-hole
mm
Ø91
*Ø110
Spindle nose
type
A2-8
*A2-11
Spindle speed
rpm
2000
*1000
*1000
Main motor powe
kW
15/18.5
Axis
X axis travel
mm
300
Z axis travel
mm
1500,*2000
X/Z rapid traverse
m/min
15/20
Turret
Center height
mm
125
No. of tool stations
nos
8, *12
Tool shank size
mm
32X32
TailStock
Type of tailstock
SST-HPT
Taper of tailstock quill
MT5
Travel of tailstock quill
mm
0
Travel of tailstock
mm
100-1320
Structure
Slant bed degree
45
Guideway type
LM
Others
Power capacity
kVA
25
Overall dimension (LxWxH)
mm
4550X2270X2550
Weight (about)
kg
10500
Detailed Images
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.

Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4: What’s the MOQ?
A4: One set only.

Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.

Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
