Dual Spindle SWL450S/650 35-degree CNC Turning Center Slant Bed Lathe Machine From China
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
35 Degree Slant Bed TX500EY Cnc Lathe Turning CenterNegotiableMOQ: 1 -
China Factory SWL500/750 35-degree Slant Bed CNC Lathe Machine for SaleNegotiableMOQ: 1
-
Slant Bed Lathe TCK50A Heavy Duty Slant Bed Cnc Lathe MachineNegotiableMOQ: 1
-
SWL600/1100 Slant Bed Cnc Lathe Machine Turning Center CNC Turning MachineNegotiableMOQ: 1
-
8-station Turret Linear Guideway SWL600/750 Cnc Slant Bed Turning Center With CE CertificateNegotiableMOQ: 1
Product Description
Dual spindle SWL450S/650 35-degree CNC turning center slant bed lathe machine
Main Features:
1. The models can satisfy a wide range of users from beginners of shop production to group corporation with experienced technicians.
2. Meehanite advanced casting on main machine body adoption with reasonable design and optimized layout assures machine accuracy and reliability in long life service.
3. X, Z and E axes adopt precision linear guideway with big span layout, solid structure and rigidity machine bed for good accuracy in long term.
4. High speed rigidity spindle plus built-in electrical sub spindle realizes high precision, high load and high speed during machining.
5. 12-station double position turret with bi-directional positioning for fast tool change and accuracy positioning.
6. Precision ballscrews with preload technology on both axes minimizes thermal deformation, maximize transmission accuracy.
7. Applied in automatic production of autoparts, devices, electrical products, mechancial products etc.
Specification |
Unit |
SWL450S/650 |
||
Capacity |
Max. turning diameter |
mm |
320 |
|
Max. length of workpiece |
mm |
650,*1000 |
||
Max. swing dia. over bed |
mm |
600 |
||
Max. swing dia. over slide |
mm |
360 |
||
Spindle |
Hydraulic chuck/Collet chuck |
Inch |
8 |
|
Spindle bore |
mm |
Ø66 |
||
Max. dia. of through-hole |
mm |
Ø52 |
||
Spindle nose |
type |
A2-6 |
||
Spindle speed |
rpm |
4000 |
||
Main motor powe |
kW |
22/30 |
||
Sub Spindle |
Hydraulic chuck/Collet chuck |
Inch |
6 |
|
Spindle bore |
mm |
Ø55 |
||
Max. dia. of through-hole |
mm |
Ø46 |
||
Spindle nose |
type |
A2-5 |
||
Spindle speed |
rpm |
5000 |
||
Main motor power |
kW |
11/15 |
||
Axis |
X axis travel |
mm |
250 |
|
Z1/Z2 axis travel |
mm |
650,*1000 |
||
Y axis travel |
mm |
N/A |
||
X/Z/Y axis rapid traverse |
m/min |
20/20/N/A |
||
Turret |
Type of turret |
BMT55 |
||
No. of tool |
12 |
|||
OD tool shank size |
mm |
25X25 |
||
Boring tool shank size |
mm |
Ø32 |
||
Max. speed of live tooling |
rpm |
N/A |
||
Boring depth of sub spindle |
mm |
115,*145 |
||
Structure |
Slant bed degree |
degree |
35 |
|
Guideway type |
mm |
LM |
||
Others |
Weight (about) |
kg |
5200 |
|
Overall dimension (LxWxH) |
mm |
2900X1780X2050 |
||

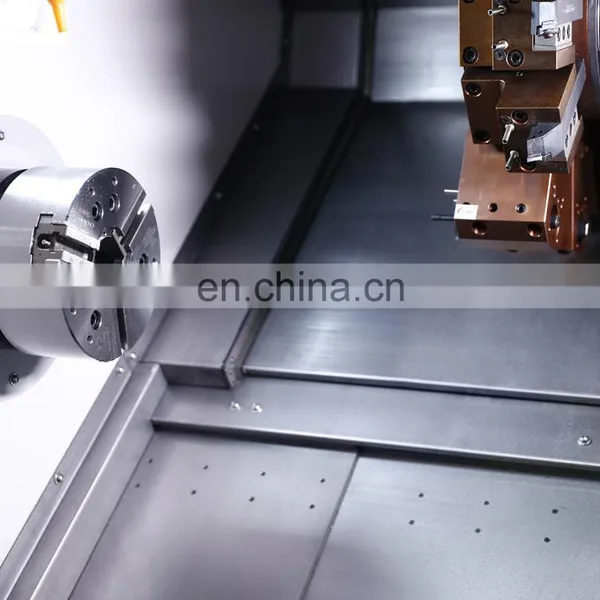

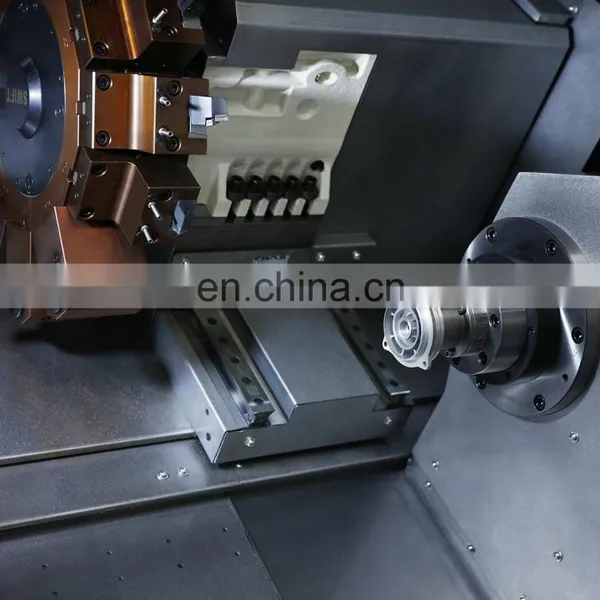

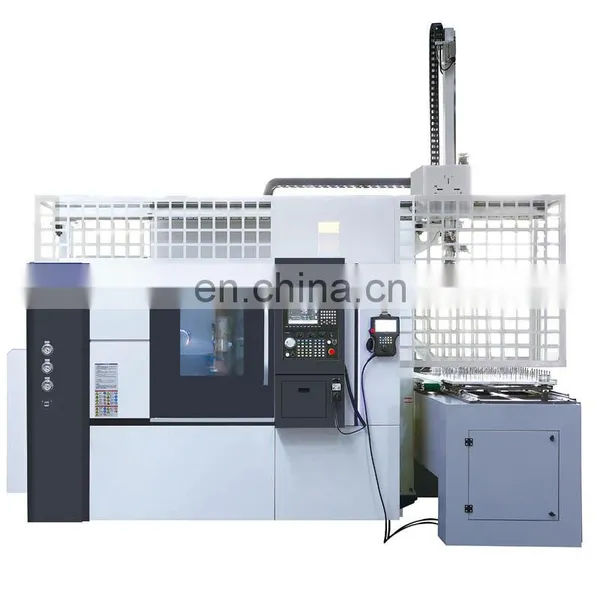

Detailed Images
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
