CK0620A high precision Chinese gang type cnc lathe flat bed with servo spindle
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Professional Lathe QK1335 CNC Pipe Threading Lathe Machine with CE
-
CK61200/6000 Heavy Duty CNC Lathe Machine for Industry
-
cnc lathe machines manufacturer china big spindle bore flat bed cnc lathe CDK6150 with GSK Controller for industry metalworking
-
cnc lathe machine CK32A3-S high precision cnc lathe swiss type for metal turning and milling in China
-
cnc lathe CK32A3 high precision cnc lathe swiss type for metal turning and milling in China
-
High Precision QK1319 1500mm Big CNC Pipe Threading Lathe Machine
Product Description
Products Description
Machine features of CNC lathe:

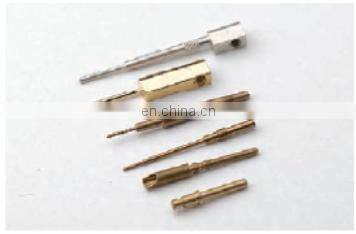

Practical small precision gang tool type CNC lathe, it has the characteristics of practicality, convenient operation and high machining accuracy. It can realize the processing of complex parts such as straight line, taper, arc, thread, etc. It is especially suitable for mass production processing of complicated shape parts. Working with the center frame to process slender shaft workpieces is as convenient as a walking machine. The CNC system has perfect functions and easy operation. Equipped with automatic feeder, automatic production can be realized.
Specification | CK0620A |
Max. bar throught hole | Φ20mm |
spindel through diameter | Φ26mm |
Max. revolving dia. | Φ300mm |
Spindle center height from the ground | 980mm |
Spindle speed range | 0-4000r/min |
spindle motor power | 2kw |
X stroke | 150mm（Diameter value） |
Z stroke | 250mm |
X axis servo motor power | 0.75kw |
Z axis servo motor power | 0.75kw |
Guideway | Linear guideway |
Minimum setting unit | 0.001mm |
Cutting speed | 1--4000mm/min |
X rapid travel speed | 18000mm/min |
Z rapid travel speed | 20000mm/min |
gang type | 6 |
Tool shank size | 12*12 |
Capacity of coolant container | 150L |
Motor power | 4.75kw |
Capacity | 1.5L |
Input air pressure | 0.4--0.6Mpa |
L*W*H | 1495x1010x1860 |
Weight | 800kg |

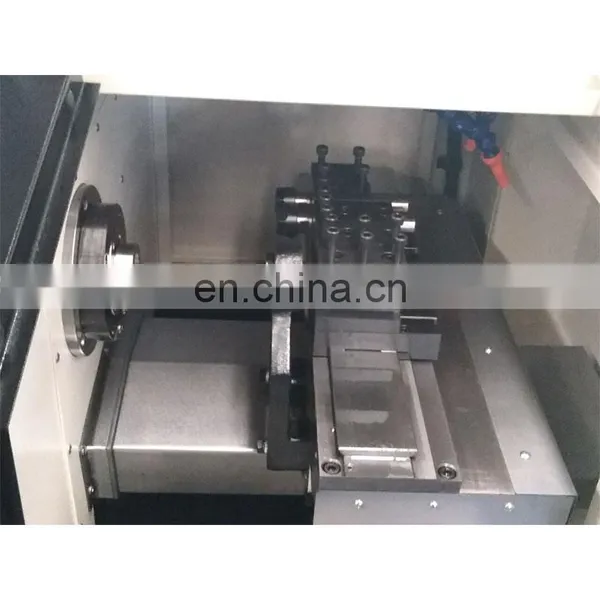

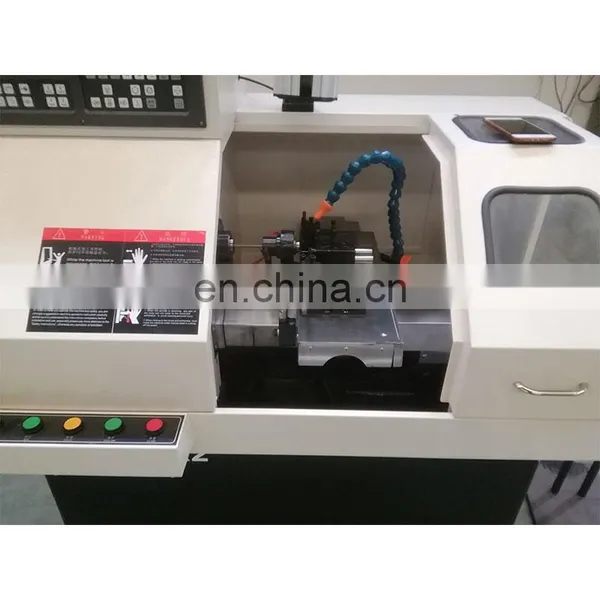

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.

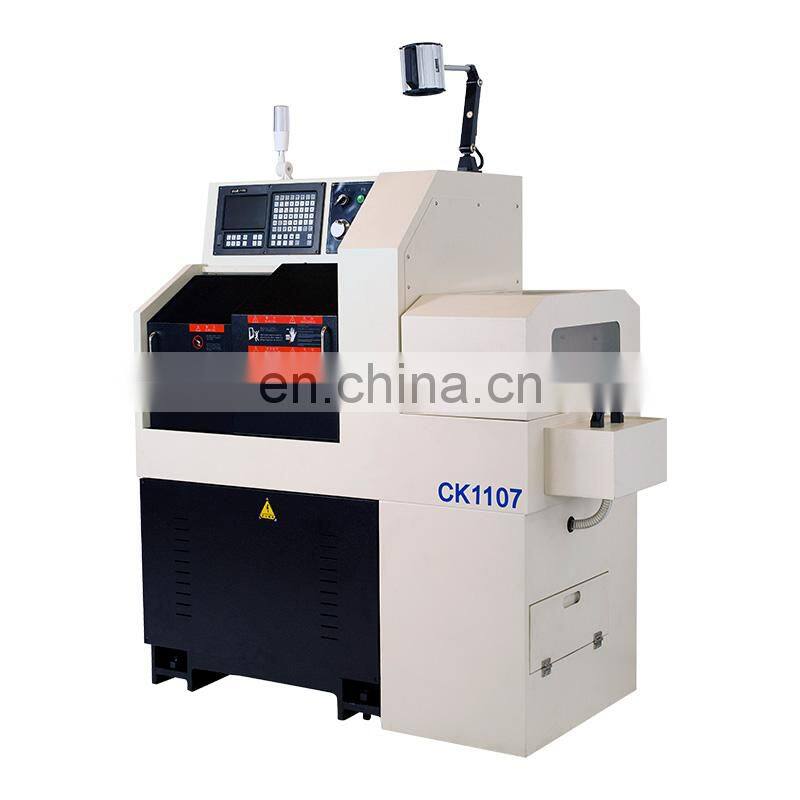

Swiss type CNC lathe CK1107

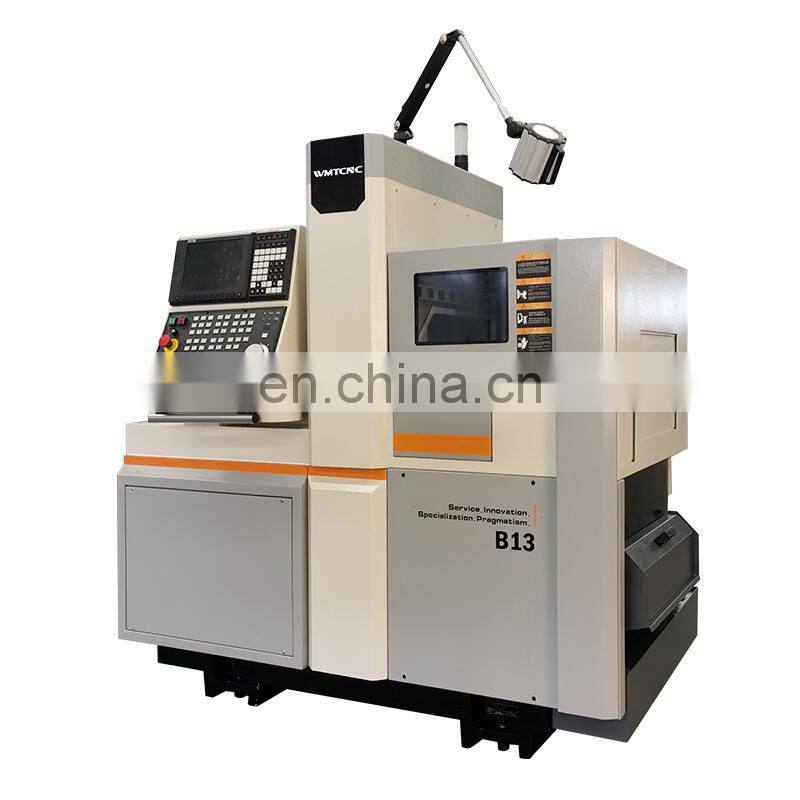

Swiss type CNC lathe B13
