Factory Direct Sell 35-degree Slant Bed Lathe Machine SWL550/400 From China Factory
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SWL650/2000 Cnc Slant Bed Lathe Machine Turning Center With 8-station Turret Linear GuidewayNegotiableMOQ: 1 -
8-station Turret Linear Guideway SWL650/1500 Cnc Slant Bed Turning Center With CE CertificateNegotiableMOQ: 1
-
Factory Sell SWL550/1500 35 Degree CNC Slant Bed Turning Center Lathe Machine From ChinaNegotiableMOQ: 1
-
Factory Sell SWL450/500 35 Degree CNC Slant Bed Turning Center Lathe Machine From ChinaNegotiableMOQ: 1
-
SGL450 Cnc Slant Bed Lathe Price Gang Type Cnc Lathe CNC Turning Machine From Chinese FactoryNegotiableMOQ: 1
Product Description
Main Features:
1. The SWL Series high-performance turning centers were designed from to provide setup flexibility, superb rigidity, and excellent thermal stability.
2. These machines offer high cost performance.
3. SWL lathe have a heavy-duty cast base with “true align” slant bed design.
4. The machine bed, headstock, turret and tailstock are aligned on the same plane.
5. This unique design feature reduces heat built-up and resulting thermal expansion.
6. The net result is higher precision machine tool.
7. Additional resulting efficiencies from the “true align” design are greater rigidity and smoother operation which provides a variety of benefits.
8. You can expect to produce highly accurate parts with extremely fine surface finishes.
9. It extremely minimizes the impact of thermal expansion to precision.
10. 35 degree slant bed is more convenient for scrap iron.
11. Better dynamics and higher precisions.
12. It realizes an optimized combination of high-precision, high bearing capacity, good running speed and it is more durable.
13. Increasing the versatility and automation of the lathe.
14. Better water-resistant and scrap-iron-resistant.
Specification |
Unit |
SWL550/400 |
||||||
Capacity |
Chuck size |
inch |
8",*10" |
|||||
Max. swing dia. over bed |
mm |
Ø550 |
||||||
Max. length of workpiece |
mm |
400,*550 |
||||||
Max. swing dia. over slide |
mm |
Ø320 |
||||||
Spindle |
Spindle bore |
mm |
Ø62 |
*Ø75 |
*Ø86 |
|||
Max. dia. of through-hole |
mm |
Ø52 |
*Ø65 |
*Ø75 |
||||
Spindle nose |
type |
A2-6 |
*A2-8 |
*A2-8 |
||||
Spindle speed |
rpm |
4000 |
*1600 |
*3000 |
||||
*2000 |
*3500 |
|||||||
Main motor power |
kW |
7.5/11,*11/15 |
||||||
Axis |
X axis travel |
mm |
260 |
|||||
Z axis travel |
mm |
400,*550 |
||||||
X/Z rapid traverse |
m/min |
20/20 |
||||||
Turret |
Center height |
mm |
100 |
|||||
No. of tool stations |
nos |
8,*12 |
||||||
Tool shank size |
mm |
25X25 |
||||||
Tailstock |
Type of tailstock |
Hydraulic,*HPT,*SST |
||||||
Taper of tailstock quill |
MT4 |
|||||||
Travel of tailstock quill |
mm |
90 |
||||||
Travel of tailstock |
mm |
100-400,*550 |
||||||
Structure |
Slant bed degree |
35 |
||||||
Guideway type |
LM |
|||||||
Others |
Power capacity |
kVA |
16 |
|||||
Overall dimension (LxWxH) |
mm |
2650X2000X2050 |
||||||
Weight (about) |
kg |
4500 |
||||||

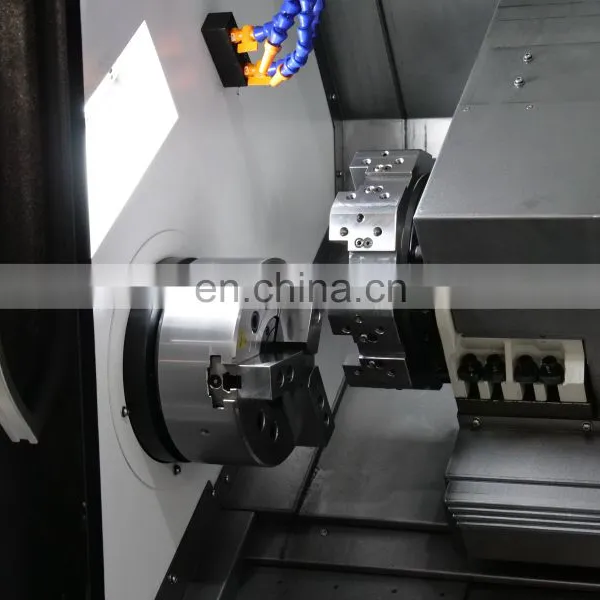

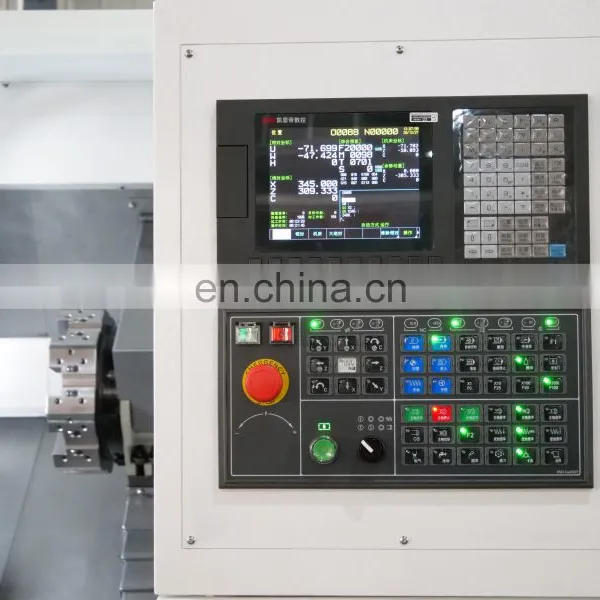

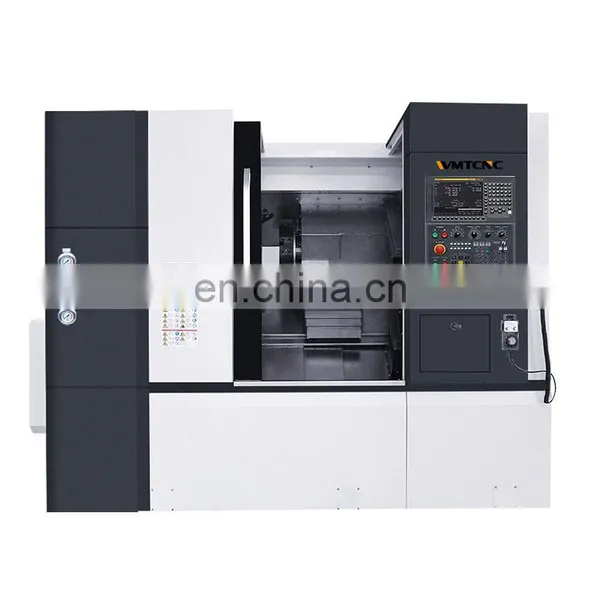

Detailed Images
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
