Slant Bed Lathe TCK50A Heavy Duty Slant Bed Cnc Lathe Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SWL600/1100 Slant Bed Cnc Lathe Machine Turning Center CNC Turning MachineNegotiableMOQ: 1 -
8-station Turret Linear Guideway SWL600/750 Cnc Slant Bed Turning Center With CE CertificateNegotiableMOQ: 1
-
Efficient SWL600/750 Cnc Slant Bed Turning Center CNC Turning MachineNegotiableMOQ: 1
-
Factory Direct Sell 35-degree Slant Bed Lathe Machine SWL550/400 From China FactoryNegotiableMOQ: 1
-
SWL650/2000 Cnc Slant Bed Lathe Machine Turning Center With 8-station Turret Linear GuidewayNegotiableMOQ: 1
Product Description

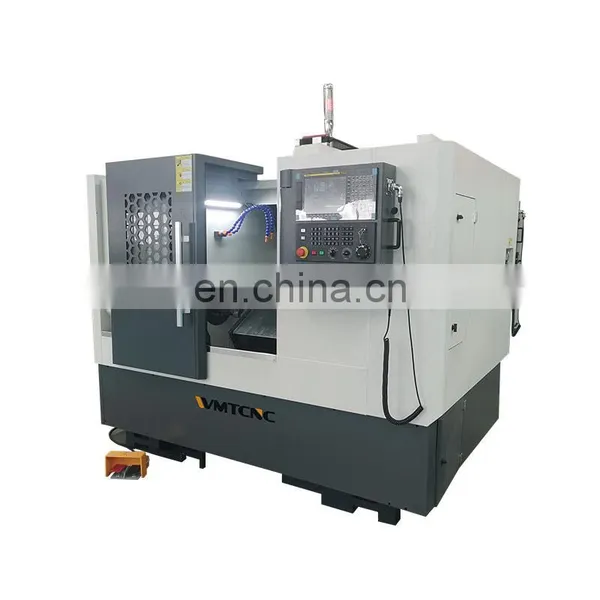

TCK50A SLANT BED AND LINEAR GUIDE WAY CNC LATHE MACHINE
CNC Lathe Features:
1. Higher accuracy Taiwan linear guideways;
2. Higher speed spindle unit,Optional homemade spindle;
3. Higher rigidity cast iror;
4. Integrated automatic lubrication;
5. One-piece Casting slant bed CNC lathe.
CNC Lathe use:
1. The machine is The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body.
2. This machine is widely used in sanitary valve, electrical appliance, instrument, automobile, motorcycle, bearings and so on.
Specifications |
TCK36А |
TCK46A |
TCK50A |
Max.swing over bed |
360mm |
460 |
560 |
Max.swing over cross slide |
170mm |
170 |
260 |
Max. processing length |
300 |
350 |
350/500 |
Spindle unit |
140mm |
170 |
200 |
The spindle nose (optional chuck) |
A2-5 |
A2-5 |
A2-6 |
The spindle motor power |
3.7kW |
5.5 |
7.5/11 |
Max. spindle speed |
4000rpm |
3500 |
3000 |
Spindle bore |
48mm |
56 |
66 |
Bar Capacity |
40mm |
45 |
55 |
The X/Z axis screw specifications |
2510/3210 |
3210/4010 |
32 |
The X-axis limit stroke |
310mm |
240 |
240 |
The z axis stroke limit |
350mm |
400 |
400/540 |
The X axis motor torque |
6N.m |
7.5 |
7.5/10 |
The Z axis motor torque |
6N.m |
7.5 |
7.5/10 |
X/Z axis repeatability |
0.003mm |
0.003 |
0.003 |
Tool Turret (Optional) |
63-8T/12T |
80-8T/12T |
100-8T/12T |
Turret center high dimensions |
63mm |
80 |
100 |
Hydraulic Quill dia. |
65mm |
70 |
70 |
Hydraulic Quill traverse |
50mm |
80 |
80 |
Hydraulic Quill taper |
Morse 4# |
Morse 5# |
Morse 5# |
Hydraulic tailstock travel |
220mm |
200 |
200/450 |
Machine dimension(LxWxH) |
2100x1450x1700mm |
2500x1700x1890 |
2500x1700x 1890/2600x1850x2000 |
Net. weight (about) |
2100 |
2600 |
2800/3000 |

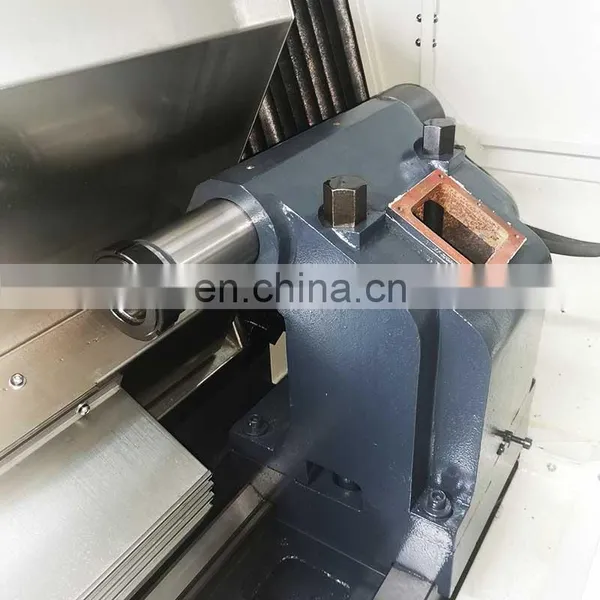

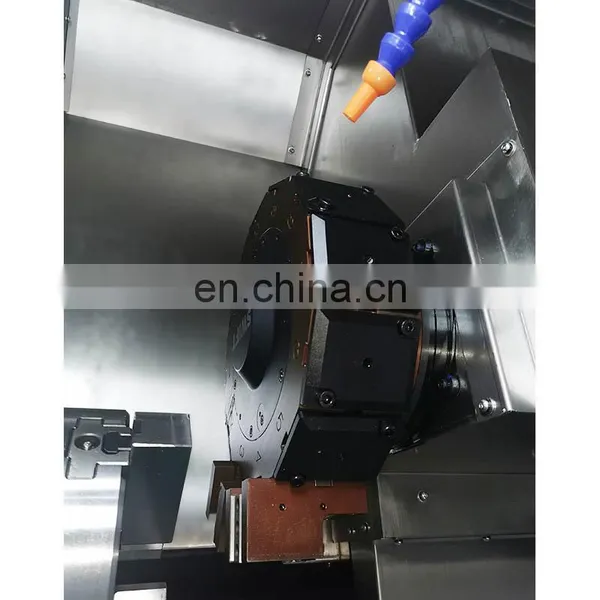

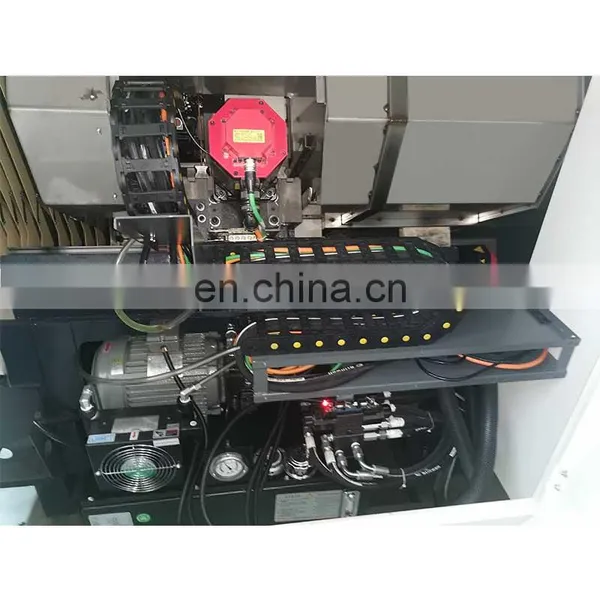

Details Images
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
