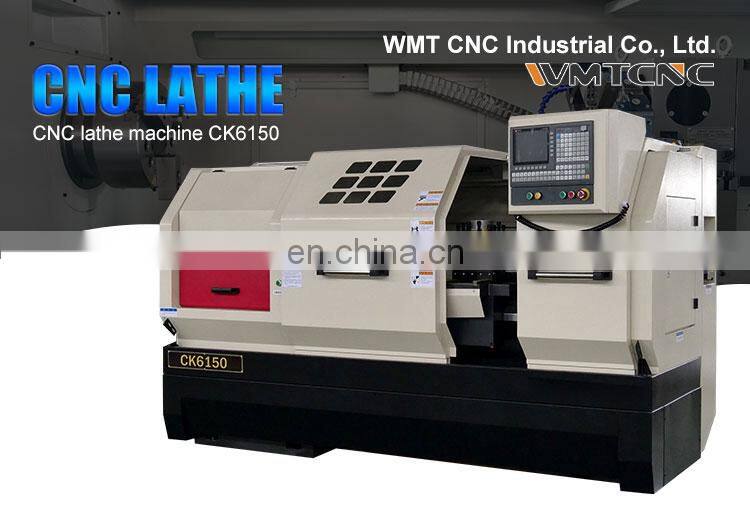

Wmtcnc Mini Cnc Lathe Machine Metal YCK-6150L Lathe Machine for Metal
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
New Pipe Thread Cutting Machine QK1327 Cnc Pipe Threading Lathe Machine With Auto Feed
-
Wmt Cnc Lathe Mini Cnc Metal YCK-6150B Lathe Machine for Metal
-
Wmt Cnc Lathe Mini Cnc Metal YCK-6180 Cnc Lathe Machine Automatic
-
Automatic Flat Bed Metal CNC Lathe CK6150x750 With High Precision
-
QK1322 Cnc Pipe Threading Machines for Sale
-
Linear Guideway Type CKL6140 Cnc Flat Bed Lathe Machine With One-piece Casting

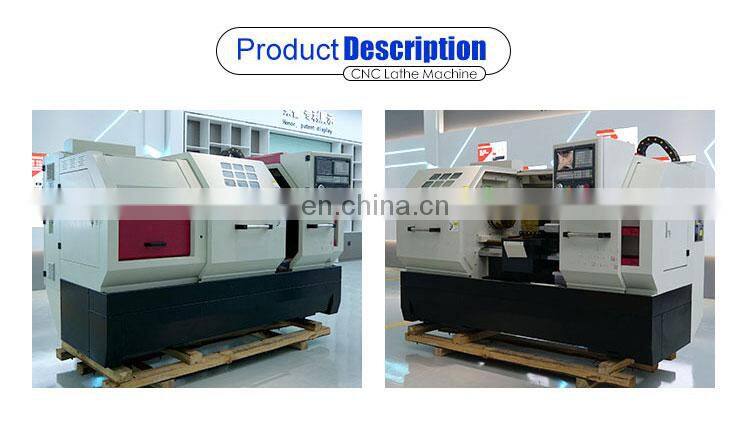

Product Description
Product Description
CNC Lathe Machine YCK-6150L Main Features: 1. YCK-6150L series economical CNC lathe belongs to our CNC series products. 2. It is a horizontal CNC lathe with two axis cont inuously control (Longi tudinal Z transverse X. ) 3. Machine uses integrated structure of mechanical, electrical and hydraulic power. 4. It has a reasonable structure with high rigidity high reliability. 5. This CNC lathe can process workpieces with low cost and high efficiency, which can effect rough procession, semi -precise procession and precise procession. 6. It can boost machine utility and competence, extremely suitable for workpieces with batch quantity, high precision and uniform size request. 7. It can be used widely in military, aviation automobile, mould and apparatus etc.
Specification | units | YCK-6150L |
Max. swing over bed | mm | 500 |
Max. swing over slide | mm | 270(X linear guide)/240(two-way linear guide) |
Max. workpiece length | mm | 500/1000/1500/2000 |
Max. turning length | mm | 450/920/1420/1920 |
Width of bed | mm | 390/405 |
Guideway type | type | Linear Guide |
Travel of X axis | mm | 290 |
Travel of Z axis | mm | 450/920/1480/1920 |
X axis servo motor torque | Nm | 6 |
Z axis servo motor torque | Nm | 10(500/750/1000/1500)/15(2000) |
Rapid feed for X/Z axis | mm/min | 8/12 |
Spindle type | type | 3 Steps manual inverter-driven motor |
Spindle nose | type | A2-8 |
Spindle bore dia. and inner hole taper | type | 82mm/90-M5(1:20) |
Range of spindle speed | rpm | 5-260,140-800,280-1600 |
Manual jaw chuck and through hole | mm | 250/80 |
Spindle motor power | kw | 7.5/11(2000) |
Electric tool post | type | 4 position |
Tool cross section | mm | 25x25 |
Tailstock quill dia./travel | mm | 75/L-150 |
Tailstock quill taper | type | MT5 |
Machining accuracy | grade | IT6 |
Re-positioning accuracy | mm | X axis 0.005, Z axis 0.008 |
Roughness | pm | Ra<1.6 |
Overall dimension | m | 2.5/2.9/3.5/3.9 x1.8x2.1 |
G.W | t | 2.7/3. 1/3.8 /4.2 |

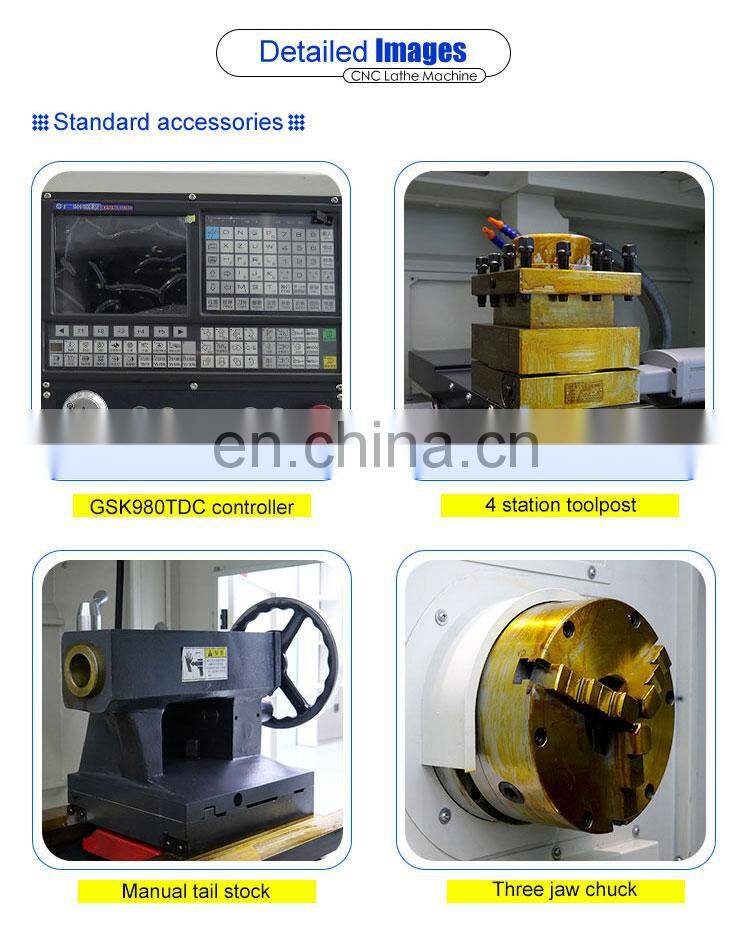

Detailed Images

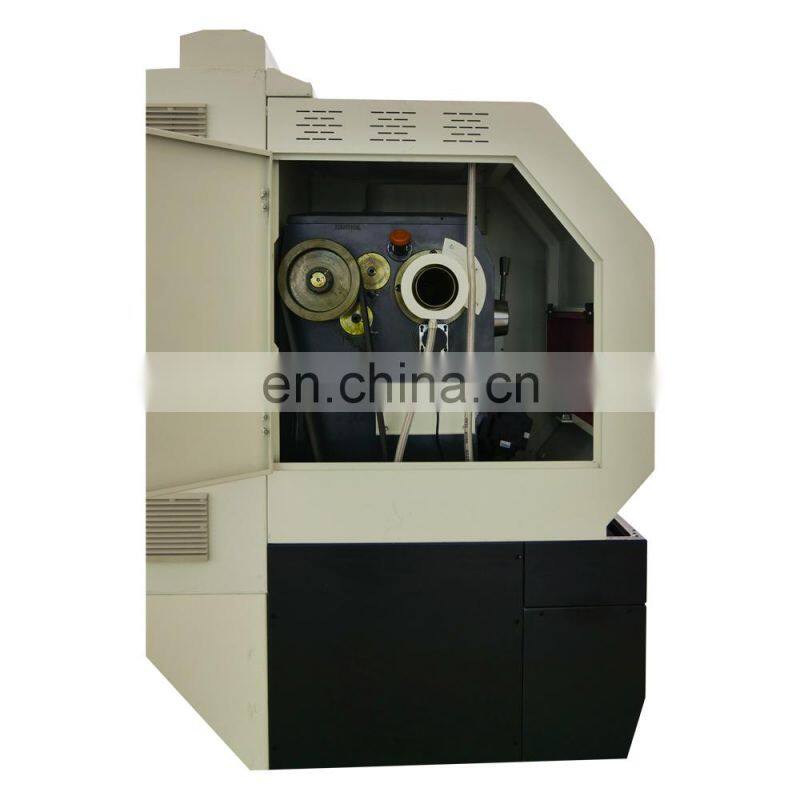

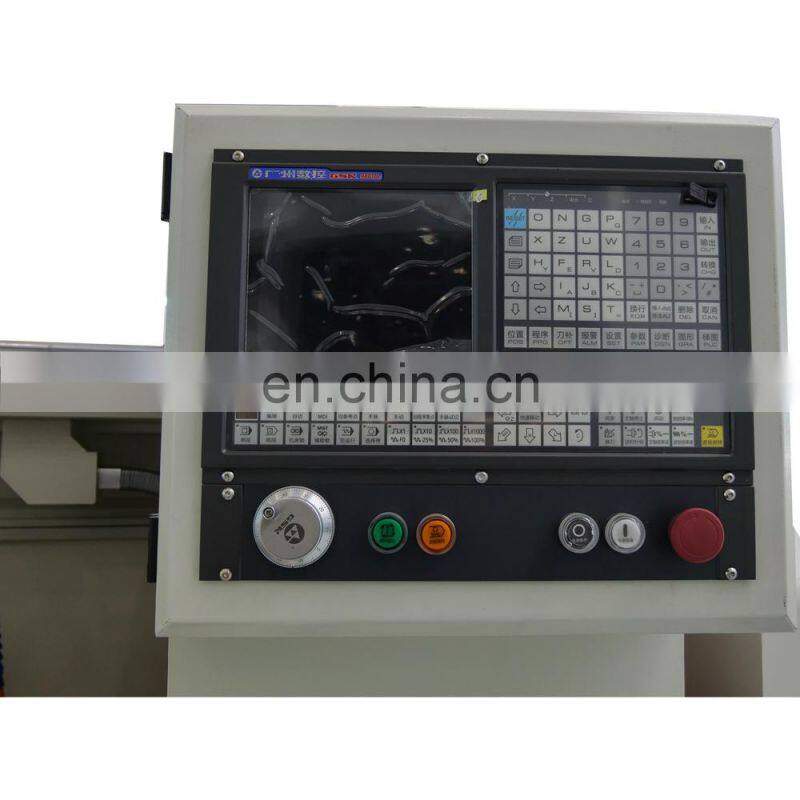

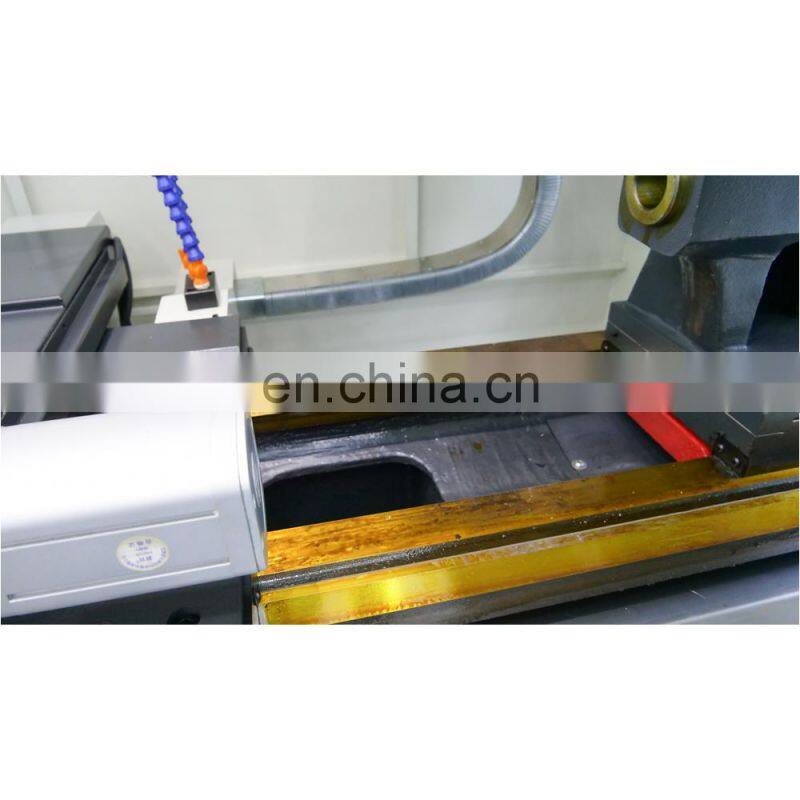

Machine images:
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
