Home > Auto, Motorcycle Parts & Accessories > Auto Engine Structure > Ignition System > WMT CNC Lathe CK0620A Good Rigid CNC Lathe Machine With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SK50P Benchtop Cnc Lathe Machining Turning With CENegotiableMOQ: 1 -
CK40D High Speed Electric Spindle CNC Lathe MachineNegotiableMOQ: 1
-
Professional Model CK0625A Horizontal Cnc Lathe Machine With Fanuc/Siemens/GSK Control SystemNegotiableMOQ: 1
-
CK36D Factory Sale China Automatic Cnc Turning Lathe PriceNegotiableMOQ: 1
-
CAK6166B High Precision Cnc Lathe With Competitive PriceNegotiableMOQ: 1
Technology Data
CNC Lathe CK0620A Specificaiton:
1. High rigidity casting bed;
2. High precision spindle bearing;
3. Bed guideways industively hardened.
1. High rigidity casting bed;
2. High precision spindle bearing;
3. Bed guideways industively hardened.
Specification | CK0620A |
rated voltage | 3 phase AC 380V |
rated frequency | 50HZ |
total input power | 3.2kw |
BYSK | YZ150 |
Minimum setting unit | 0.001mm |
Minimum moving unit X | 0.0005mm |
Minimum moving unit Z | 0.001mm |
maximum program size | ±9999.999 |
Cutting speed | 1-4000mm/min |
X rapid travel speed | 15m/min |
Z rapid travel speed | 18m/min |
Max. bar throught hole | Φ20mm |
spindel through diameter | Φ21mm |
Max. revolving dia. | Φ200mm |
Spindle center height from the ground | 1000mm |
Spindle speed range | 0-5000rpm |
spindle motor power | 2.0kw |
X stroke | 300mm（diameter value） |
Z stroke | 200mm |
X axis servo motor power | 0.4kw |
Z axis servo motor power | 0.4kw |
Guideway | Linear guideway |
Cutting motor power | 0.09kw |
Capacity of coolant container | 150L |
Motor power | 25W |
Capacity | 1L |
Input air pressure | 0.4--0.6Mpa |
L*W*H | 1068*980*1450mm |
Weight | 610kg |

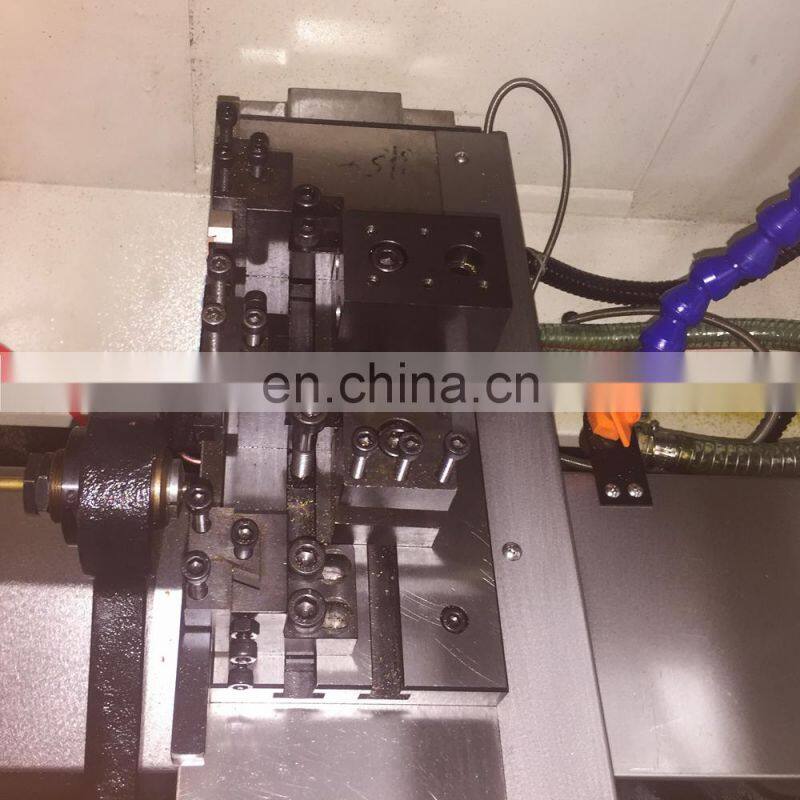

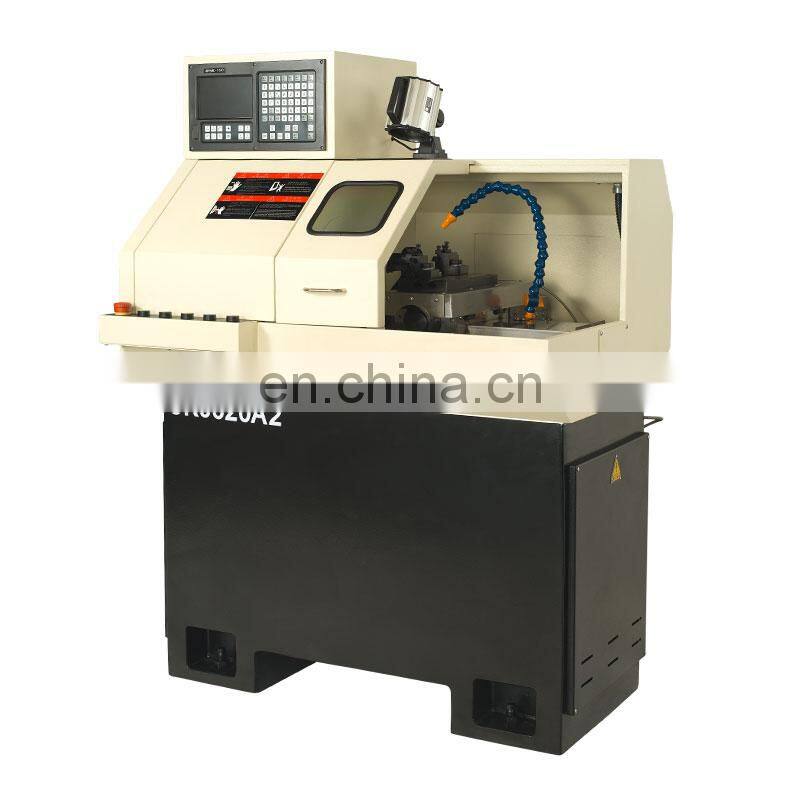

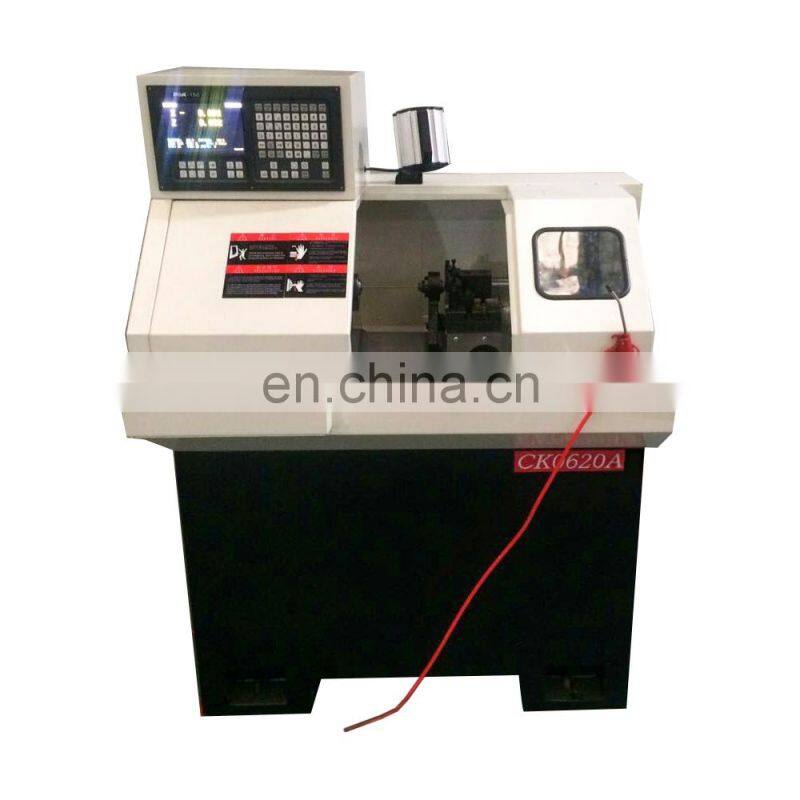

Detailed Images
Standard Accessories:
YZK180 system R & D
25mm spindle module unit R & D
2.2kw servo spindle servo motor Alpha
1kw absolute + bus line INOVANCE
1kwabsolute + bus line INOVANCE
403*2006 YUER
679*2510 YUER
HGH20 HIWIN/PMI
Optional Accessories:
Front live tool
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
