SK50P Benchtop Cnc Lathe Machining Turning With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CK40D High Speed Electric Spindle CNC Lathe MachineNegotiableMOQ: 1 -
Professional Model CK0625A Horizontal Cnc Lathe Machine With Fanuc/Siemens/GSK Control SystemNegotiableMOQ: 1
-
CK36D Factory Sale China Automatic Cnc Turning Lathe PriceNegotiableMOQ: 1
-
CAK6166B High Precision Cnc Lathe With Competitive PriceNegotiableMOQ: 1
-
CK0620A High Precision Chinese Gang Type Cnc Lathe Flat Bed With Servo SpindleNegotiableMOQ: 1
Product Description

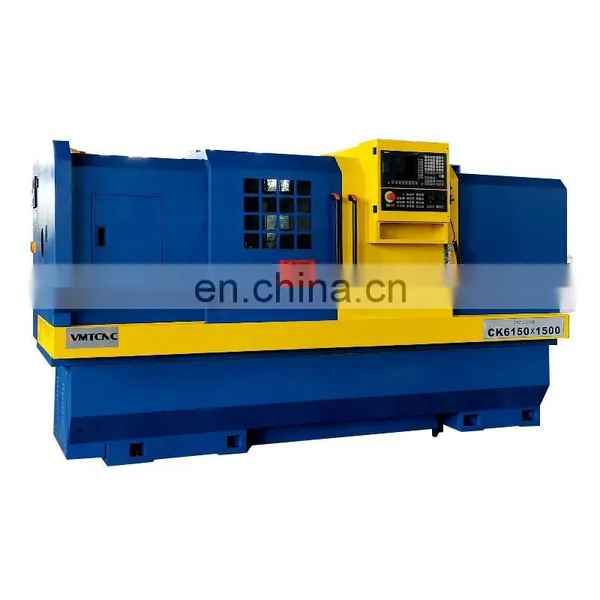

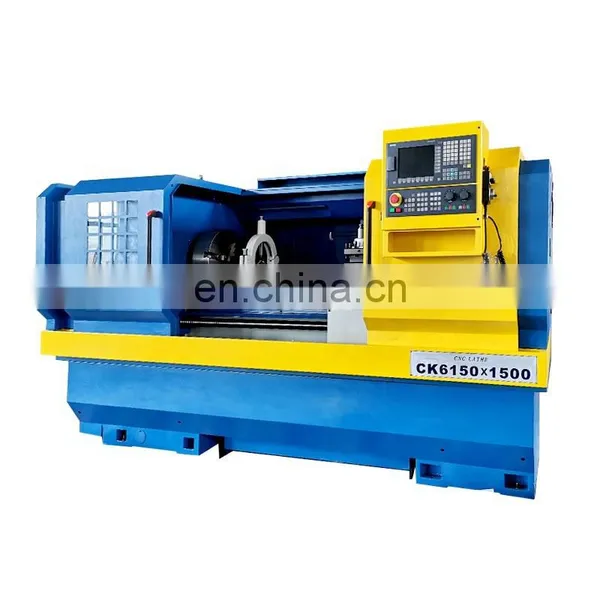

CNC lathe machine CK6150(sk50p)
MAIN FEATURE FOR CK6150 CNC LATHE FOR THREADS MAKING
High rigidity casting bed
High precision spindle bearing
Bed guideways industively hardened
High rigidity casting bed
High precision spindle bearing
Bed guideways industively hardened
Specification |
UNIT |
SK50P(CK6150) |
Max. swing dia. over bed |
mm |
500 |
Max. swing dia. over carriage |
mm |
280 |
Max. turning diameter |
mm |
500/350 |
Distance between centers |
mm |
710/960/1460/1960 |
Max. turning length |
mm |
570/820/1320/1820 |
Type of spindle nose |
ISO 702/Ⅱ D8 Short-taper cam-locking type |
|
Spindle bore diameter |
mm |
77 |
Spindle speed |
rpm |
3-step 21-1620 H:162-1620 |
M: 66-660 |
||
L: 21-210 |
||
Max. torque of spindle |
N.m |
800 |
Spindle drive motor power(continuous or 30minutes) |
kW |
7.5 |
Quill diameter |
mm |
75 |
Quill travel |
mm |
150 |
Tailstock quill taper |
. |
Morse No.5 |
X/Z rapid traverse rate |
m/min |
6/12 |
Number of tool stations |
4(6 Option) |
|
Tool section |
mm |
25x25 |
X travel |
mm |
300 |
Z travel |
mm |
650/900/1400/1900 |
Dimensions(L) |
mm |
2250/2500/3000/3500 |
(W) |
mm |
1370 |
(H) |
mm |
1690 |
Package dimensions (LxWxH) |
mm |
2550/2800/3300/3800x1920x2200 |
Net weight |
kg |
2100/2150/ |
2200/2260 |

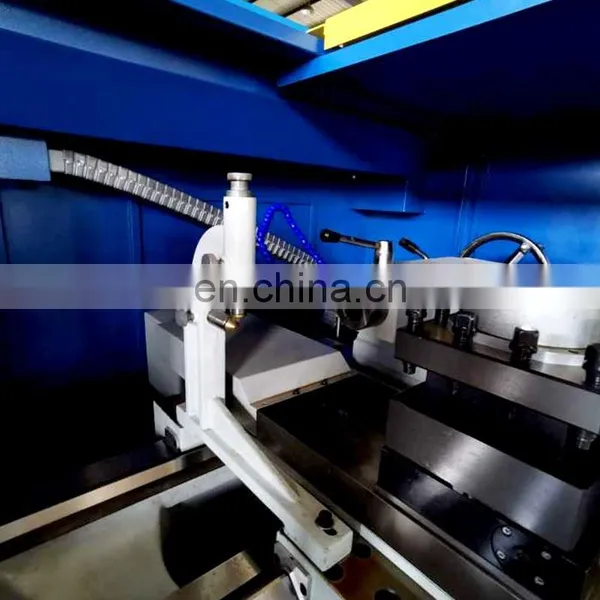

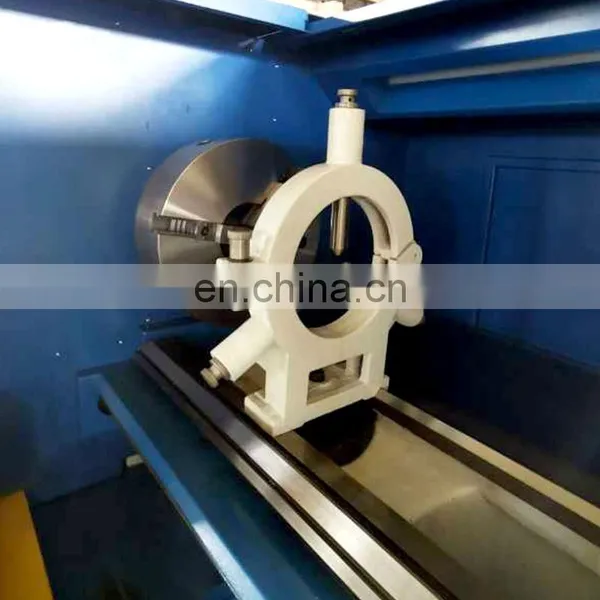

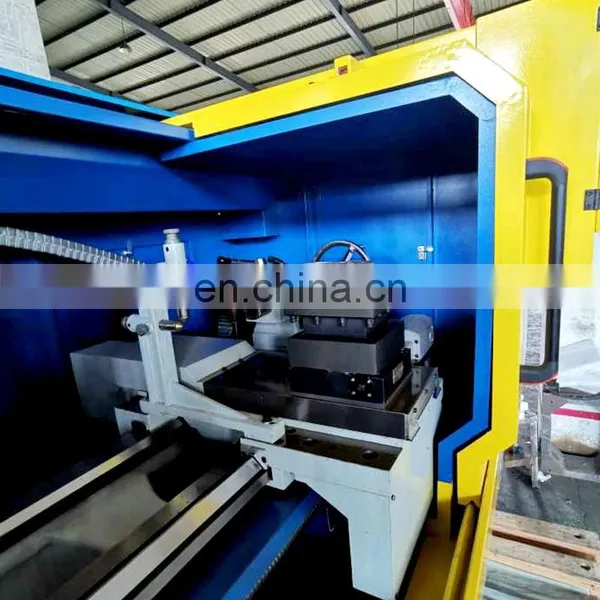

Detailed Images
