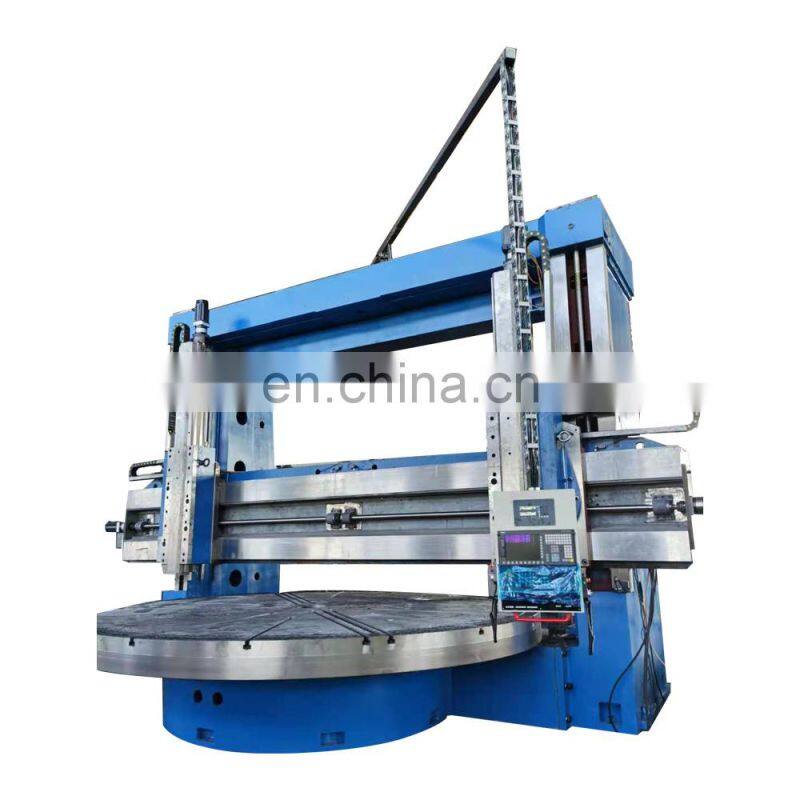

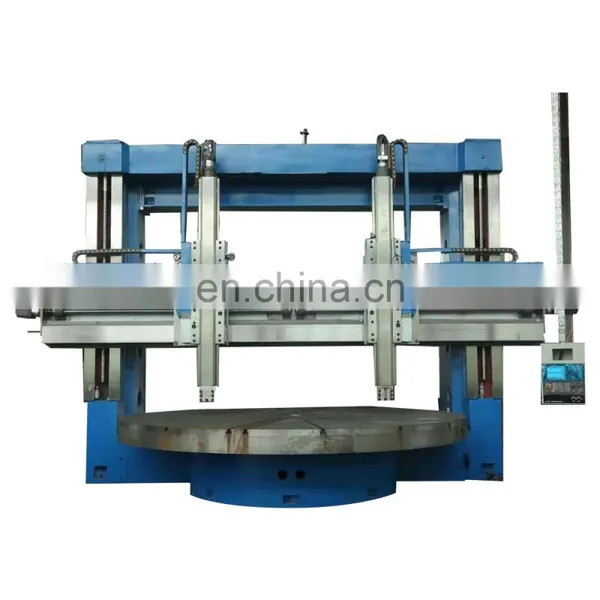

Vertical Lathe DVT5240 Heavy Duty Vertical Manual Lathe Machine for Metalworking
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Siemens 808DA Horizontal Heavy Duty CNC Lathe CYK6166x1000 for Metal Working With CE
-
WMT CNC Lathe CK0620A Good Rigid CNC Lathe Machine With CE
-
SK50P Benchtop Cnc Lathe Machining Turning With CE
-
CK40D High Speed Electric Spindle CNC Lathe Machine
-
Professional Model CK0625A Horizontal Cnc Lathe Machine With Fanuc/Siemens/GSK Control System
-
CK36D Factory Sale China Automatic Cnc Turning Lathe Price
Product Description
Product Description
Heavy CNC vertical lathe machine main features:
1. The vertical lathe machine is for heavy metal cutting;
2. DRO is included.
Vertical lathe machine | DVT5240 |
Table dia. | 3200mm |
Max. turning dia. | 4000mm |
Max. workpiece height | 1600mm |
Max. workpiece weight | 20T |
Max. tool size | 50mm |
Right toolpost max. cutting forece | 35000N |
Right toolpost max. cutting forece | 30000N |
Total cutting force | 43000N |
Worktable max. torque | 63000N.m |
Worktable speed steps | 16 steps |
Worktbale speed range | 2-63r/min |
Toolpost feeding range | 0.1-500mm/min/ |
Right toolpost travel (horizontal/vertical) | 2200/1000mm |
Right toolpost travel (horizontal/vertical) | 2200/1000mm |
Slider section | 240x240mm |
Left/right toolpost fast moving speed | 2000mm/min. |
Cross beam max. travel | 1400mm |
Corss beam up/down speed | 350mm/min. |
Main motor power | 55kw |
Cross beam up/dowm motor power | 11KW |
Left/right toolpost feeding motor torque | 27N.m (Beijing CTB servo motor) |
Total power of the machine | 72KW |
Machine weight | 40T |
Machine size | 7200x5400x5200MM |

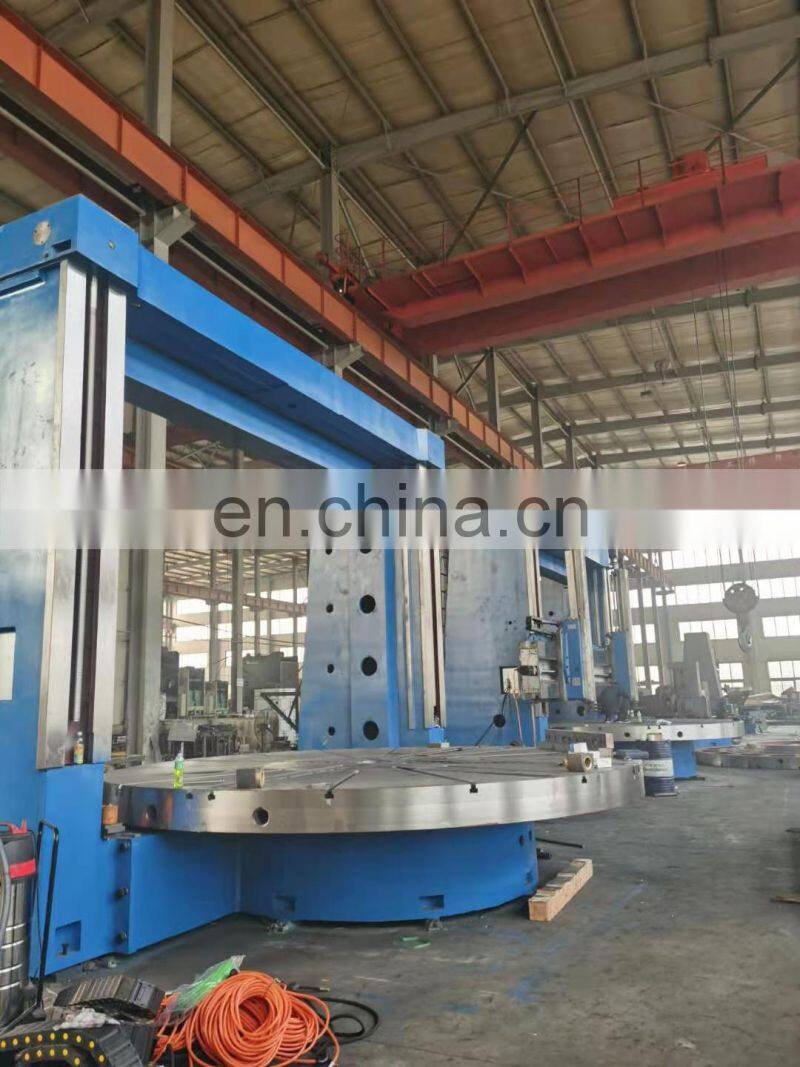

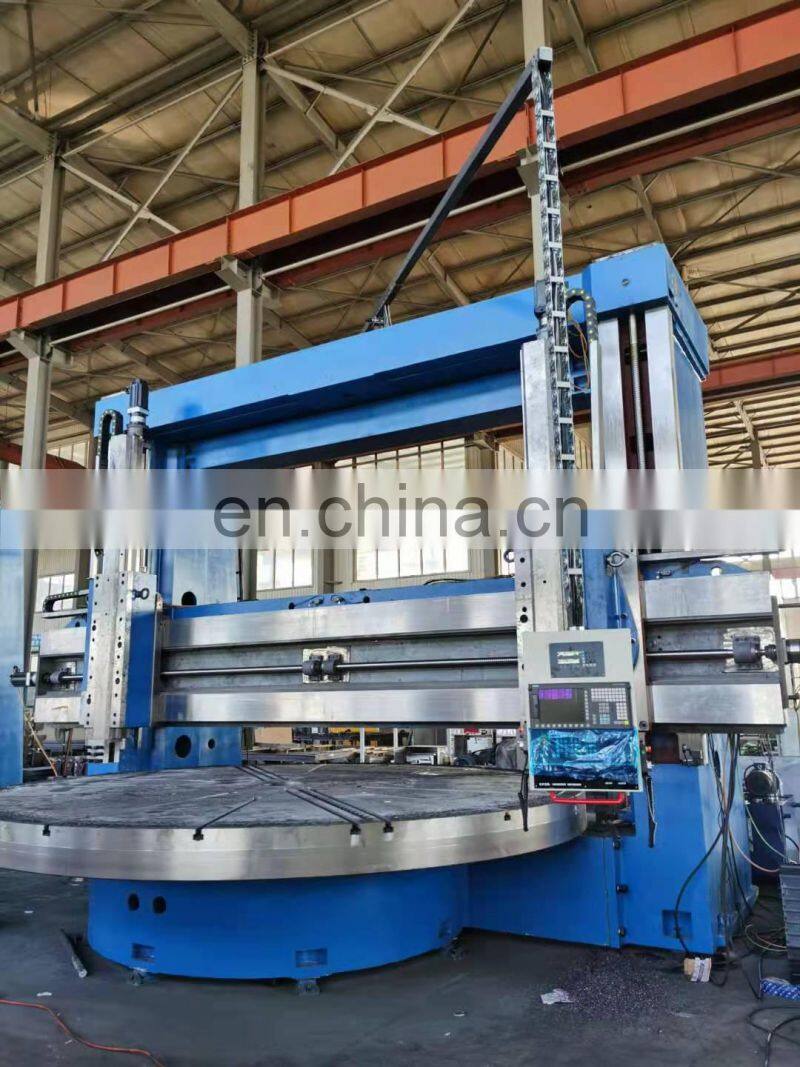

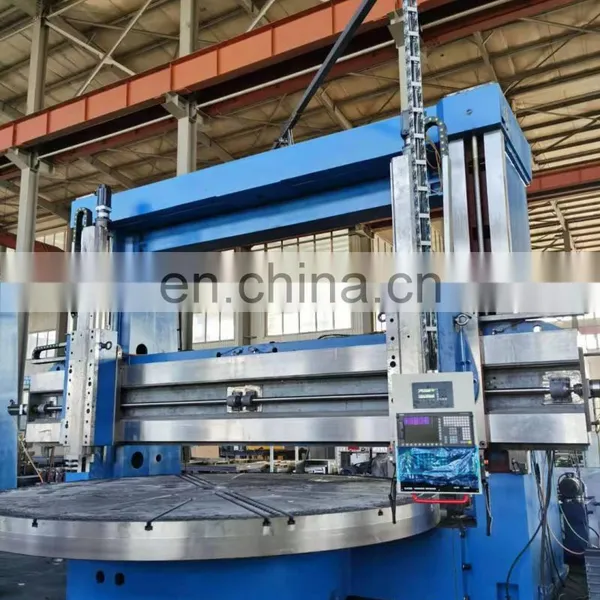

Detailed Images
Company Profile

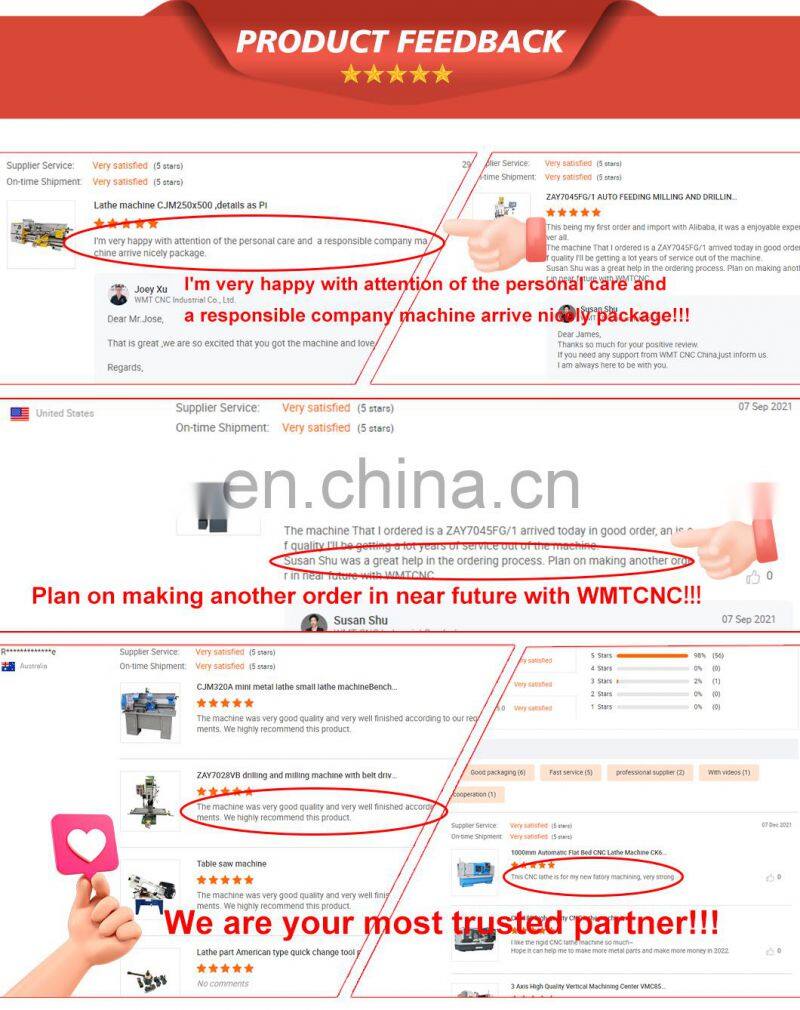

Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
