1. Concrete Block Machine QT6-15
2.cycle time:15-20s
3.power:37.4kw
4.bamboo pallet:850*680*20mm
5,approvel:ISO9001&SGS&CE
Huayuan machinry manufacturer which is a professional manufacturer and supplier in China manufacturing heavy machine such concrete block machine.It specialized in the production of concrete block machine, brick machine,cement brick machine, Concrete block making machine ,

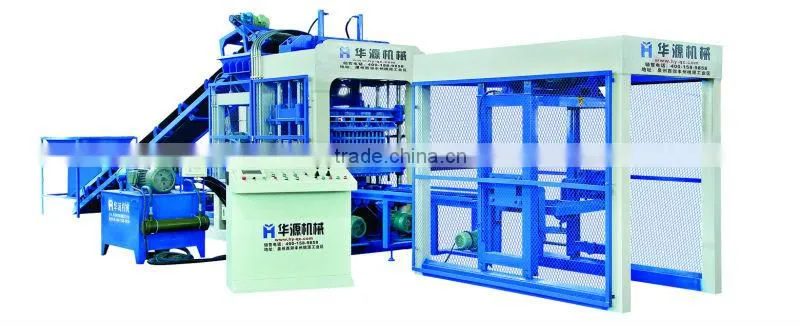

Best quality concrete block machine of QT6-15 automatic block making machine

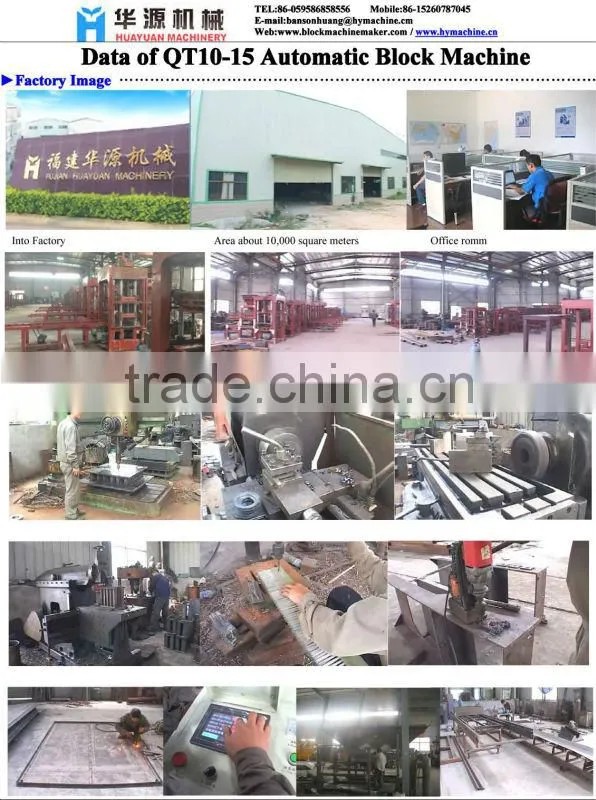

♥ Our factory Image for concrete block machine:
♥Main concrete block machine Introduction and Advantages
1,Main Technical Specifications of concrete block machine:
Dimension: |
9450×3300×2700mm |
Rating pressure : |
31.5Mpa |
Vibration: |
Hydraulic vibration |
Vibration Frequency |
2,800 – 4,500 r/min( rolls per minute) |
Vibrating Force: |
68kn |
Motors Power: |
37.4KW |
Pallet size |
900x680 x thickness( Bamboo pallet,PVC pallet) |
Raw Materials: |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag,gangue, gravel, perlite, and other industrial wastes. |
Applied Products: |

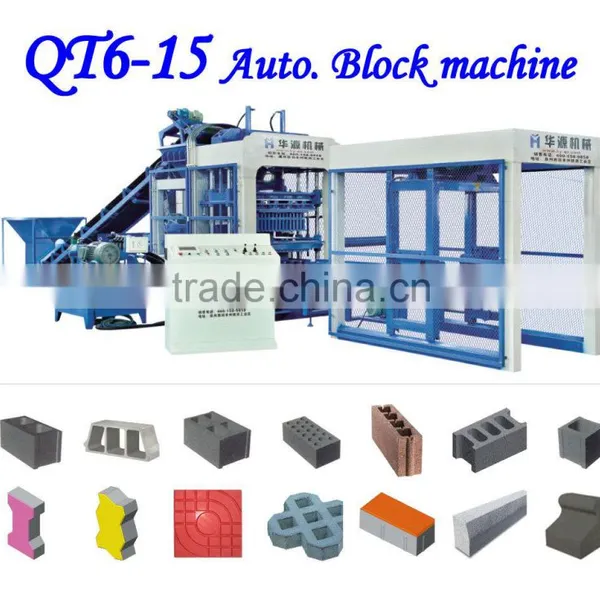

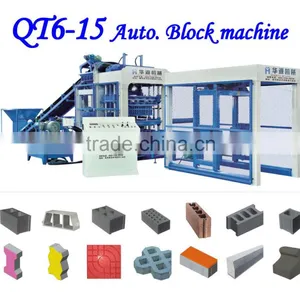

concrete block machine can produce:concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products,slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied Fields: |
widely used in buildings, road pavings, squares, gardens, landscaping,city constructions,etc. |
Note: All the production parameters are subject to change, without prior notice. | |
2, Production output in QT6-15 concrete block machine:
Brick |
Sizes |
Output/ mould |
Output/Shift(8hours) |
Perforated brick |
240x115x90mm |
15 |
21600-28800Pcs |
Solid brick |
240x115x51mm |
30 |
43200-57600Pcs |
Hollow brick |
390x190x190mm |
6 |
8640-11520Pcs |
Color paver |
200x100x60mm |
21 |
25200-30240Pcs |
Note:
- QT6-15 concrete block machine can produce hollow block, paving stone, curb stone by changing the mould only.
- All the mould can be made according to customer’s design.
3,Raw Material Ratio for Concrete Products by concrete block machine:
Items |
load-bearing block |
Colored paver 250x250x60mm |
Solid brick |
kerb |
||
Specification |
Size:400x400x200mm |
Bottom layer |
Color layer |
240x115x53mm |
1000x150x300mm |
|
Ratio% |
Weight(kg) |
Ratio% |
Weight(kg) |
Ratio% |
Ratio% |
|
Cement P.O425 |
10 |
1.7 |
17% |
———— |
10% |
17% |
Sand |
30 |
5.1 |
33% |
50% |
35% |
33% |
Aggregate |
60 |
10.2 |
50% |
———— |
55% |
50% |
White Cement |
—————— |
———— |
45% |
———— |
———— |
|
Pigment |
—————— |
———— |
5% |
———— |
———— |
|
Weight |
17kg |
6.8kg |
3kg |
85kg |
||
strength |
10Mpa |
30Mpa |
10Mpa |
30Mpa |
||
Consumption report:
Take the hollow block at 400x200x200mm as example:
Hollow Block: 400x200x200 mm, about 17 kgs (with wall thickness at 30mm)
Strength: 6-15 MPA (according to different ratio of material)
Production per hour : 1,350 pcs
Production per Shift (8 working hours): 10,800 pcs
Material Ratio: 10% Cement, 30% Sand, 60% aggregate
Water Consumption: 4% of the total weight of the block
No. |
Name |
Consumption/hour (ton) |
Consumption/Shift(ton)8h |
Consumption/year(ton)300days |
1 |
Cement |
2.295 |
18.36 |
5,508 |
2 |
Sand |
6.885 |
55.08 |
16,524 |
3 |
Crushed Stone |
13.77 |
110.16 |
33,048 |
4 |
Water |
1.08 |
8.64 |
2,592 |

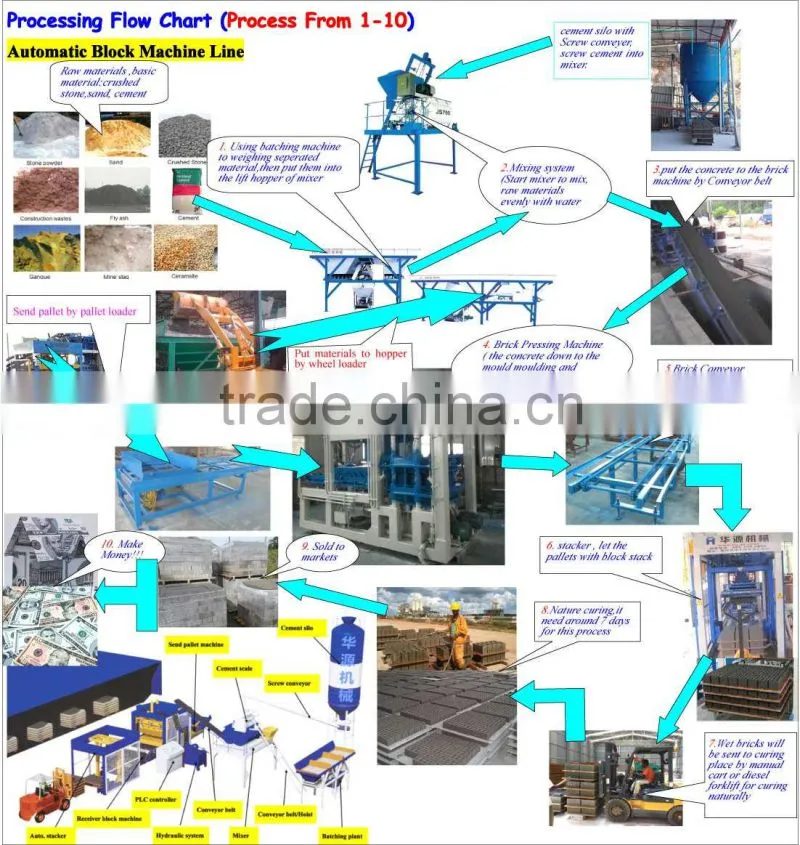

♥Processing flow chart for automatic concrete block machine:
♥Advantages of Huayuan concrete block machine………………………………………………
(1) our cocrete block machine was Uses Famous PLC control system and Touch Screen.
A. Human-computer interface screen with easy operation;
B. Concrete block machine is able to set up, update and amend the production perimeters, to maximize the production output;
C. Dynamic display of the system’s status, automatic trouble shooting and warning notice;
D. Has advanced logical safety lock function, avoiding mechanical accidents caused by operational mistakes;
E. Is able to troubleshoot the machinery via remote control.
(2) automatic block machine Uses proportional electrical and hydraulic control relief valves, which automatically adjust the oil flow and pressure as per specific working requirements, to buffer the
hydraulic cylinder when working; uses integrated high-pressure and soft oil pipes, with easy installation;
(3) Optimun structure of vibrating shafts, which assures vibration distributed uniformly in the range of vibrating table, thereby improves the uniformity and stability of blocks,
produces better quality of product than before when using the same ratio of raw material, and effectively reduces the noise.
(4) concrete block making machine were Use special design of fixing table and knock type vibration, improves the speed of making product and the accuracy of the size of product.
(5) Uses multi-shaft rotating and compulsory feeding, which greatly improves the density and intensity of the blocks, and reduces the feeding time as well;
(6) Heavy-duty machine frame, which uses high-intensity steel and advanced heat treatment, is wear resistant.
(7) Mould frame is made with inlaid structure, and mould are processed via the procedures of carburizing, nitriding and quenching which guarantee the strength of mould core
and mould surface could be HRC52-HRC61.
(8)The lifespan of mould is not less than100 thousands times.
5,Our concrete block machine had saled to The World:

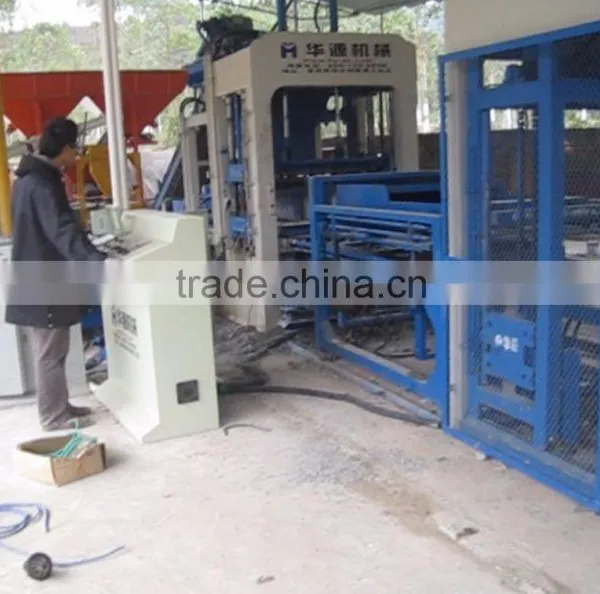

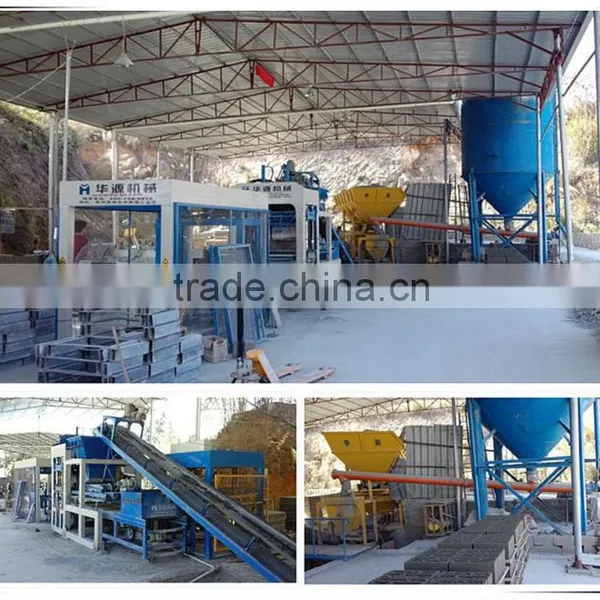

6,Huayuan concrete block machine Show Room:
