Help CenterSale Well QT4-15 Automatic Cement Brick Making Machine Price in India
Related Products
-
QT8-15 Automatic Brick Making Machine Price Made in ChinaUS$ 48,000 - 55,000MOQ: 1 Set -
HYM High Pressuer Baking-free Brick Machine QT10-15 Limestone Brick Making MachineUS$ 55,000 - 75,000MOQ: 1 Set
-
2013 Concrete Block and Hollow Block Maker Machine With High Degree of Automatic QT6-15US$ 37,500 - 50,000MOQ: 1 Set
-
QT4-15 Automatic Block and Brick Making Machines 13400860405US$ 25,000 - 45,000MOQ: 1 Set
-
QT8-15 Automatic Brick Making Machine Price/hydraulic Brick Making Machine LineUS$ 45,000 - 65,000MOQ: 1 Set
Specifications
1. Hydraulic control2. Hollow, proous, standard brick
3. High efficiency, low
cement brick making machine QT4-15
1.Germany Ytong technology.
2.Best steel with heating process.
3.Siemens electric component.
4.Good product appearance
Sale well QT4-15 automatic cement brick making machine
1. Brief introduction of QT series brick making machine
1).QT series brick machine can produce hollow&solid bricks by clay,shale,flyash,slag or mixed waste material,
2) .The spiral cut reamer of the machine adopt wear-resistance metal spray painting technology;
3).The upper stage mixing shaft, the cut reamer big shaft, the up-down body etc. are all passed the aging, quenching and tempering process.
4).The reducer gearwheel is the hardened tooth face;
5). Reasonable design, compact structure, the equipment can work steadily without installing of foundation bolts;
6). It can largely reduce the consumption of power for vibration in working process.
2. Characteristics of QT series brick making machine
1).Hi-Technology---It's full automatic control by computer system with LCD Touch Panel;
2).Reliable Operation---All the equipments have adopted the Europe hi-technology;
3).Remote Communication System---The whole production line is controlled by computer system ;
4).Long Service Life--- The after-sale service provide you best security;
5).Sound Quality--- We are proffesional in brick making machines;
6).Multi-products Function---This machine can be used to produce all kinds of bearing blocks ,split blocks, multi-tow-hole blocks, common clay bricks, color pavement bricks, grass-planting bricks, curbs, etc
1. Technical parameters of QT4-15 cement brick making machine
Cycle Time |
15-20(s) |
Total Power |
23.6(kw) |
Vibration Type |
hydraulic vibration |
Motor Frequency |
50HZ |
Machine Dimension |
8200×4350×2700(mm) |
Pallet Size |
850×560×20(mm) |
Vibration Force |
58KN |
Gross Weight |
6200(kg) |
2.Sample Brick Sizes and capacity:
Brick |
Sizes |
Output/ mould |
Output/Shift(8hours) |
picture |
Blocks |
390x190x190mm |
4 |
5,760-7,680 |
|
Porous bricks |
240x115x90mm |
12 |
17,280-23,040 |
|
Interlocking block |
200x100x60mm |
15 |
21,600-28,800 |
|
Solid bricks |
240x115x53mm |
24 |
34,560-46,080 |
|
The type QT4-15 can produce all kinds of hollow blocks and solid bricks and color paving bricks,only by changing different moulds
3.Some sample Raw-materials:

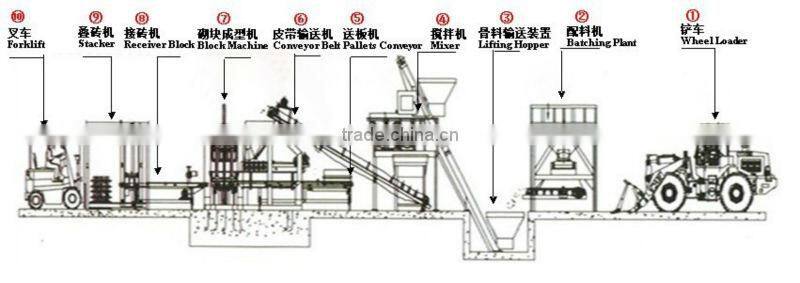

4.Block making production line:
5.Products display:

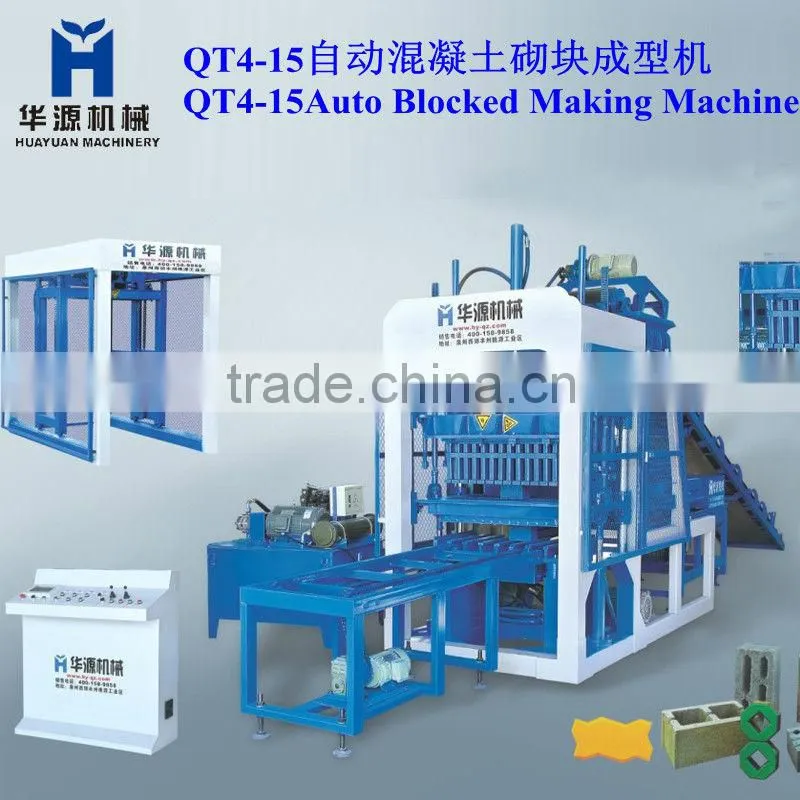

a,main cement brick making machine :

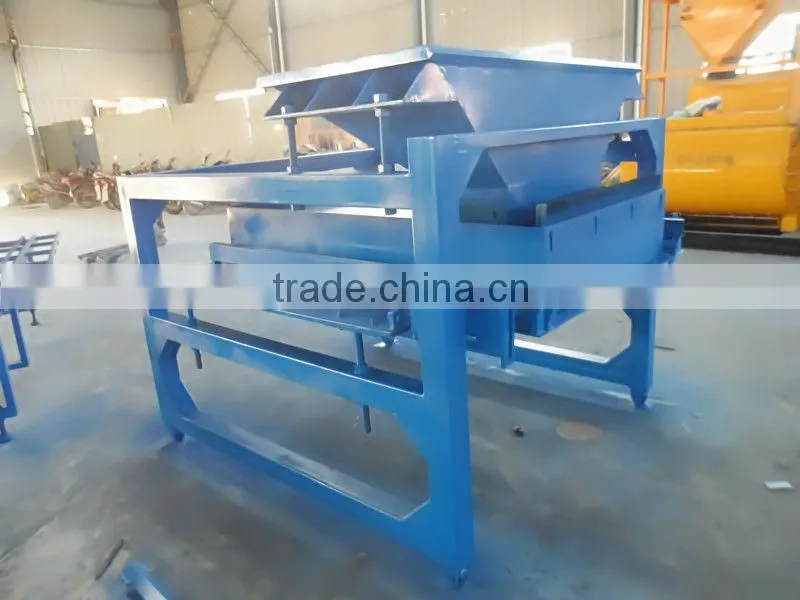

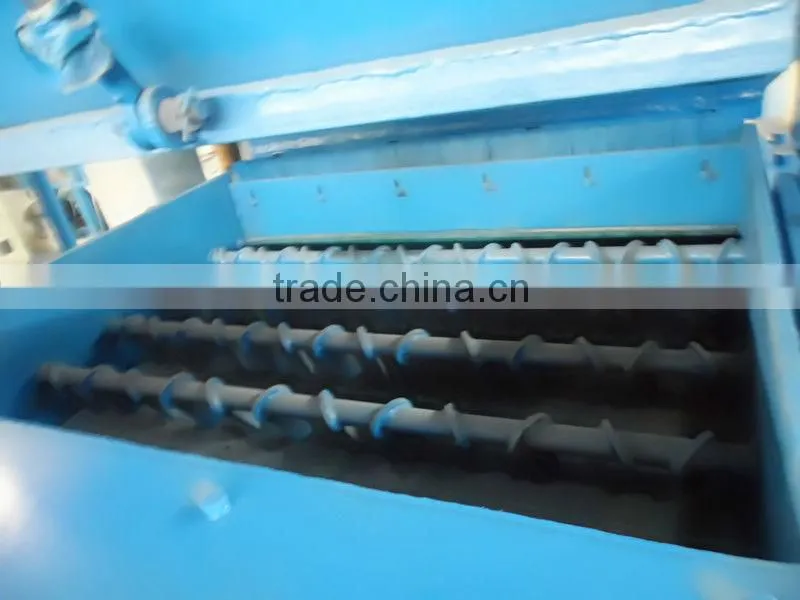

b,feeding materials:
c,color feeding machine:

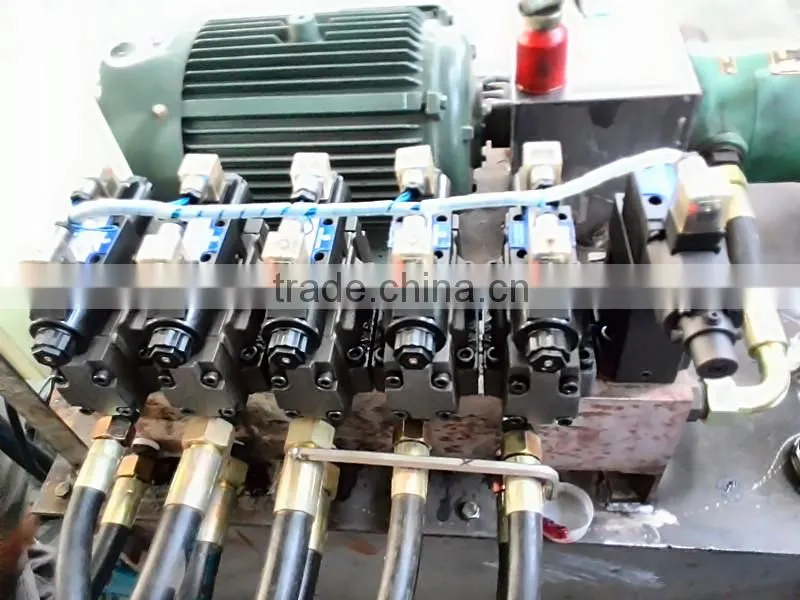

d,hydraulic system:
6.Block & Brick Sample:
7.The Customers From All Over The World:
Welcome to visit my company anytime, we have machines in customer site available for you to see running plant, for any technique support, please contact with us
ph:0086-189-59962883, Skype:Johnson.wei688 QQ:912108212
