QT4-15 Automatic Block And Brick Making Machines 13400860405

FOB Price

US$ 25,000 - 45,000 / Set

1 Set(Min. Order)

Port xiamen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Hollow Block Making Machine
Brick Raw Material	Concrete	Processing	Brick Production Line
Method	Hydraulic Pressure	Automatic	Yes
Capacity	20sets per month	Place of Origin	Fujian, China
Brand Name	HYM	Model Number	QT4-15 concrete block machines for sale
Voltage	220V/380V	Power	22.9KW
Dimension(LWH)	820043502700MM	Certification	ISO
Warranty	one year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1.Heavy-duty machine frame
2.PLC Controller with touch screen
portional electrical and hydraulic control relief valves

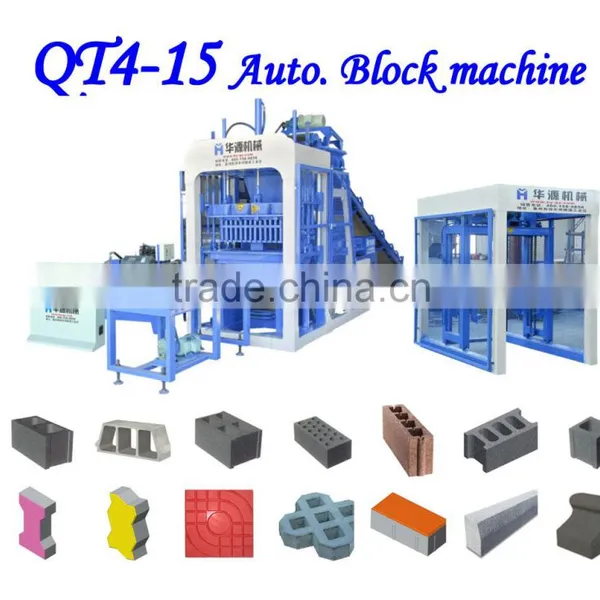

QT4-15 Automatic block and brick making machines

Concrete Brick making machine,brick making machine,concrete brick machine,concrete block making machine,hollow brick machine,hollow brick making machine..

1. bricks Sizes and capacity of QT4-15 automatic brick making machine

A: Production capacity of QT4-15 as following:

Brick	Sizes	Output/ mould	Output/Shift(8hours)	picture
Blocks	390x190x190mm	4	5760-7680
Porous bricks	240x115x90mm	12	17280-23040
Interlocking block	200x100x60mm	15	21600-28800
Solid bricks	240x115x53mm	26	37440-49920

2.Main technical parameters of QT4-15 automatic brick and block making machine

Cycle Time	15-20(s)	Total Power	22.9(kw)
Vibration Type	hydraulic vibration	Vibration Frequency	3800-4500(Times/sub)
Machine Dimension	820043502700(mm)	Pallet Size	85056020(mm)
Vibration Force	58KN	Gross Weight	6200(kg)

3.Character of QT4-15 automatic brick and block making machine

(1) Uses Famous PLC control system and Touch Screen.

(2) Uses proportional electrical and hydraulic control relief valves

(3) Optimun structure of vibrating shafts,

(4) Use special design of fixing table and knock type vibration,

(5) Uses multi-shaft rotating and compulsory feeding

(6) Heavy-duty machine frame

(7) Mould frame is made with inlaid structure, and mould are processed via the procedures ofcarburizing

(8)The lifespan of mould is not less than100 thousands times.

4.Raw Material Ratio for Concrete Products

No.	Name	Consumption/hour (ton)	Consumption/Shift(ton)8h	Consumption/year(ton)300days
1	Cement	2.295	18.36	5,508
2	Sand	6.885	55.08	16,524
3	CrushedStone	13.77	110.16	33,048
4	Water	1.08	8.64	2,592

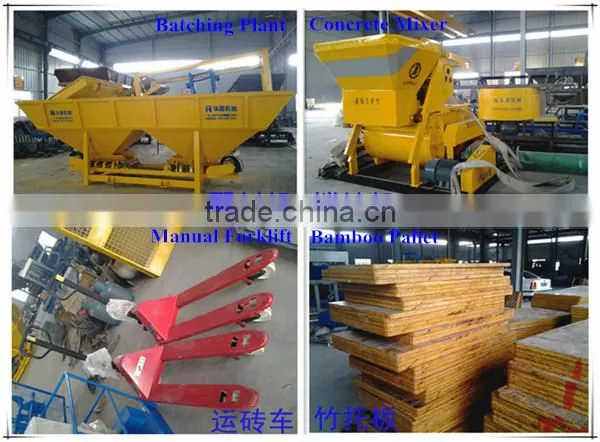

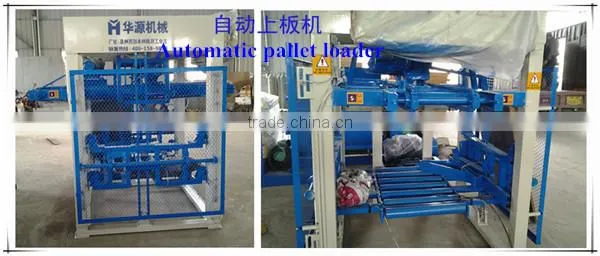

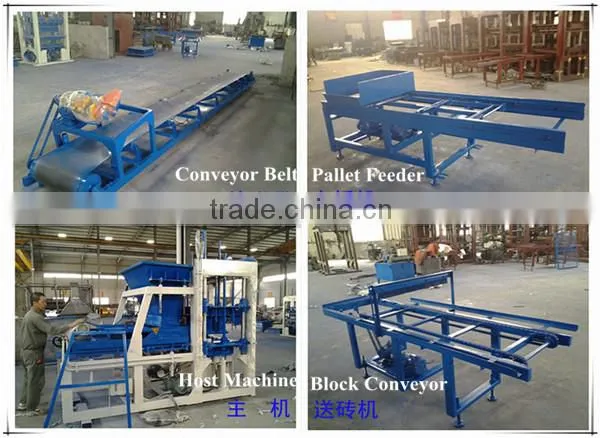

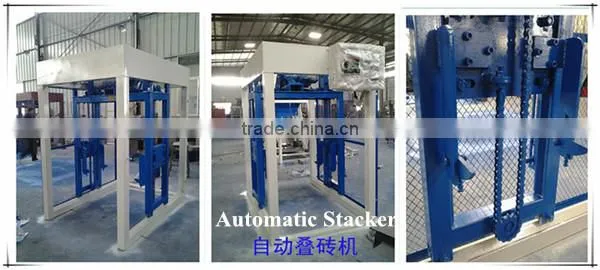

5.Block making production line:

6.Products display
