2014 Promotion Hydraulic Pressure Concrete Block Machine With Top Quality QT8-15 Hollow Block Making Machine Price

  concrete block machine QT8-15
1,PLC controller and touch screen
2,cycle time:15-20s
3,pallets size:900*840*25mm

  2014 Promotion Hydraulic Pressure concrete block machine with Top Quality QT8-15 hollow block making machine price

HYM concrete block machine Company profile:

♣Huayuan machinery manufacturer is located in Quanzhou city and establish in 1 9 8 8 , huayuan manufacturer is the Lean Expert

of the municipal engineering cocrete block machine and equipments.

♣ Huayuan manufacturer was produce all kinds of concrete block machine, hollow block machine,hydraulic press machine,color paver machine,

curb-stone brick machine and all kinds of equipments.

♣Huayuan concrete block machine through more twenty years production, the machine was high automatic, high durability and lower failure rate.

♣Huayuan all insist of “Quality decision value” and provide machines to each clients with the lowest price but high quality.

 In last one year, huayuan have export to more 20 country such Congo,Mozambique,Phillippenes,Algeria and so on.

  Huayuan manufacturer have approve the Certification of I S O 9 0 0 1, S G S, B V

1,Main technical parameters of QT8-15 concrete block machine:

2,Output of QT8-15 automatic concrete block machine:

Note:

- QT8-15 concrete block machine can produce hollow block, paving stone, curb stone by changing the mould only.

- All the moulds can be made according to customer’s design.

3,Raw Material Ratio of Concrete Products by  QT8-15 concrete block making machine:

Consumption report:

Take the hollow block at 400x200x200mm as example:

Hollow Block: 400x200x200 mm, about 17 kgs (with wall thickness at 30mm)

Strength: 8-15 MPA (according to different ratio of material)

Production per hour : 1,350 pcs

Production per Shift (8 working hours): 10,800 pcs

Material Ratio: 10% Cement, 30% Sand, 60% aggregate.

Water Consumption: 4% of the total weight of the block.

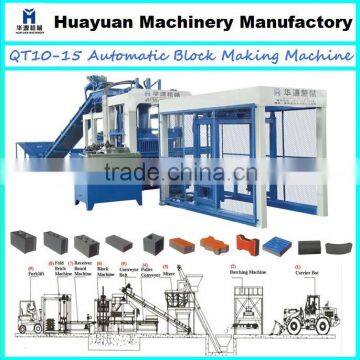

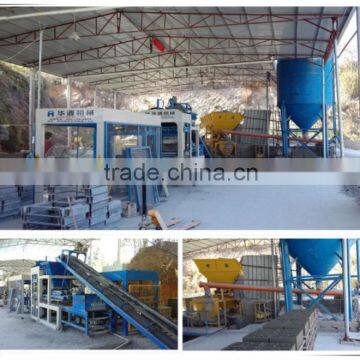

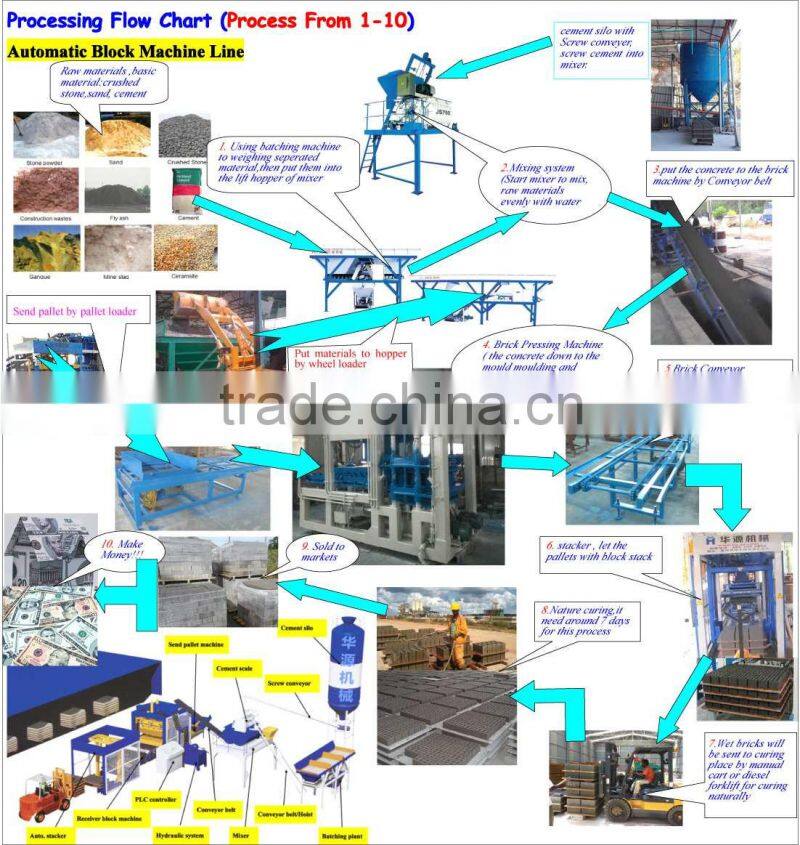

4,QT8-15 concrete block machine simple production line

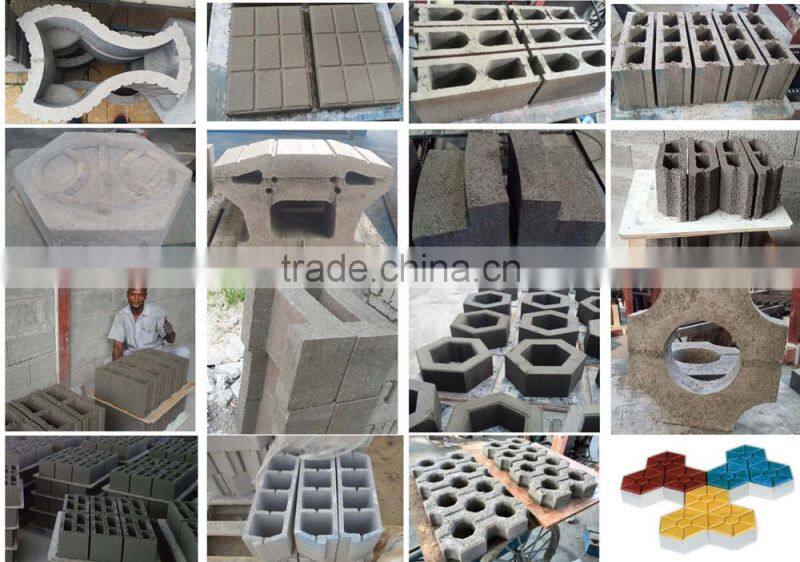

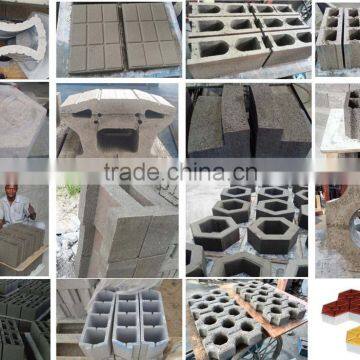

6, Sample brick * blocks by concrete block machine

7,Our world Clients for concrete block machine:

9,Advantages of Huayuan concrete block Machine………………………………………………

(1) Our concrete block machine Uses Famous PLC control system and Touch Screen.

A. Human-computer interface screen with easy operation;

B.The concrete block machine Is able to set up, update and amend the production perimeters, to maximize the production output;

C. Dynamic display of the system’s status, automatic trouble shooting and warning notice;

D. automatic concrete block machine has advanced logical safety lock function, avoiding mechanical accidents caused by operational mistakes;

E. automatic concrete block machine is able to troubleshoot the machinery via remote control.

(2) Uses proportional electrical and hydraulic control relief valves, which automatically adjust the oil flow and pressure as per specific

working requirements, to buffer the hydraulic cylinder when working; uses integrated high-pressure and soft oil pipes, with easy installation;

(3) Optimun structure of vibrating shafts, which assures vibration distributed uniformly in the range of vibrating table, thereby improves the

uniformity and stability of blocks, produces better quality of product than before when using the same ratio of raw material, and effectively reduces the noise.

(4) Use special design of fixing table and knock type vibration, improves the speed of making product and the accuracy of the size of product.

(5) Uses multi-shaft rotating and compulsory feeding, which greatly improves the density and intensity of the blocks, and reduces the feeding time as well;

(6) Heavy-duty machine frame, which uses high-intensity steel and advanced heat treatment, is wear resistant.

(7) Mould frame is made with inlaid structure, and mould are processed via the procedures of carburizing, nitriding and quenching which guarantee the strength

of mould core and mould surface could be HRC52-HRC61.

(8)The lifespan of mould is not less than100 thousands times.

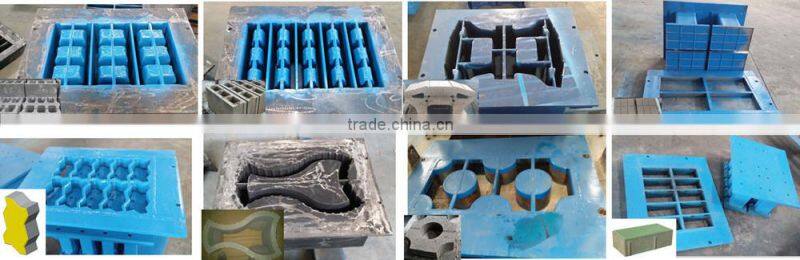

 10, The sample molds of concrete block machine:

the concrete block machine can produce all kinds of molds, such as: hollow block, solid brick, color paver,curstone and others molds.Just Change a mold.

11,The main Equipments for automatic conrete block machine:
