1,concrete block machine for sale QT8-15
2,cycle time:15-20s
3,power:38.1kw
4,approvel:ISO9001
5,pallet:900*840*25mm
QT8-15 Good Quality intelligent hollow block machine ,low price block making machine saled in Africa Concrete Brick making machine,brick making machine,concrete brick machine,concrete block making machine,hollow brick
machine,hollow brick making machine, brick making machinery.blok machine , hollow block machine, automatic block machine , block making machine,block making machine price,block making machine for sale
1,Main technical Specifications of QT8-15 intelligent hollow block machine :
Oriented column: made of special steel, chrome plated , and can bear powerful suppress and wears well.
Mold head: synchronize with mechanic, electricity and hydraulic. Products made by the same pallet are
within narrow degree of errors.
Feeding: Sensor and hydraulic are droved synchronically in proportion, the force to swing material and
arch-breaking generates strong centrifugal power to feed materials, which results in rapid feeding and particularly
good for thin-walled products with multi-holes.
Vibration: Hydraulic drive and multi-source vibration system, the computer-controlled hydraulic drive generated
vertical synchronization. Adjustable frequency makes it possible to feeding in low-frequency. High frequency
operation guarantees good effects of different raw materials and the vibration acceleration is up to 17.5.
Control system: Computer control, HMI, electric parts uses brands like Mitsubishi. With experienced production
actions, design philosophy integrated international and Chinese trends. To operate it requires small training and no
experts. Its strong memory makes it possible to be upgraded.
Store and distribute materials devices: the computer-controlled material supply avoids suppressing materials,
and ensures well-distributed feeding and stable and well product intensity.
Raw materials : concrete block machine can used crushed stone ,sand, cement, etc; many type of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite, ect. .
multiple uses, intelligent hollow block machine can produce all type of standard building blocks by changing mould.
1,Multi-holes block and hollow block .
2,Ceram site heat preservation block.
3,Composite heat preservation concrete block
The above production come with good heat preservation performance, and it meets the new national energy conservation policy.
2,Main technical parameters of QT8-15 intelligent hollow block machine
Cycle Time | 15-20(s) | Total Power | 38.1(kw) |
Vibration Type | hydraulic vibration | Vibration Force | 85KN |
Gross Weight | 10500(kg) | Motor Frequency | 50HZ |
Pallet Size | 900×840×25(mm) | Machine Size | 9800×3600×2800(mm) |
Rated Pressure | 31.5Mpa | Stacking Power | 2.25kw |
Output of QT8-15 intelligent hollow block machine :
Bricks | Brick sizes | Production per Mold(pcs) | Production per Shift(8 hours) | Picture |
Perforated brick | 240x115x90mm | 18 | 25920-34560Pcs |
|
Solid brick | 240x115x51mm | 42 | 60480-80640Pcs |
|
Hollow brick | 390x190x190mm | 8 | 11520-15360Pcs |
|
Color paver | 200x100x60mm | 28 | 31600-40320Pcs |
|
Sample blocks&bricks produced by intelligent hollow block machine
3,QT8-15 intelligent hollow block machine production line
4,QT8-15 intelligent hollow block machine other informations:
1. Area: Workshop area: 150-200m2, all factory area 3000m2, the bigger, the better.
2. Workers : three or four.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight::
(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG
5. raw material consumption per day:220-230T
6. water consumption per day:3%-5% of raw material .Weight.
5.QT8-15 intelligent hollow block machine guarrantee:
We give our automatic concrete block machine one year guarantee,
during the period we can supply spares if they are broken.
6.Block strength made by QT8-15 intelligent hollow block machine
Hollow blocks can reach 8-10Mpa,Solid bricks can reach 10-12Mpa,so they have a higt pressure,
can be widely used.
7.Advantages of QT8-15 intelligent hollow block machine :
A:Hydraulic from Taiwan, Hydraulic valve from Japan ,well-known brand,the quality is very good.
B:the PLC is Siemens,touch screen.
C:the steel is our best national standard No.45 steel.
D:the welding is the best welding technology in our country,anti-wear, aseismatic,anti Moist
E:the mould is high temperature carburizing heat treatment through 900 Degrees Celsius

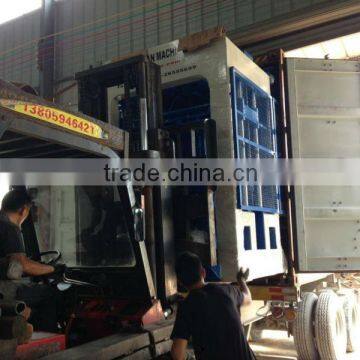

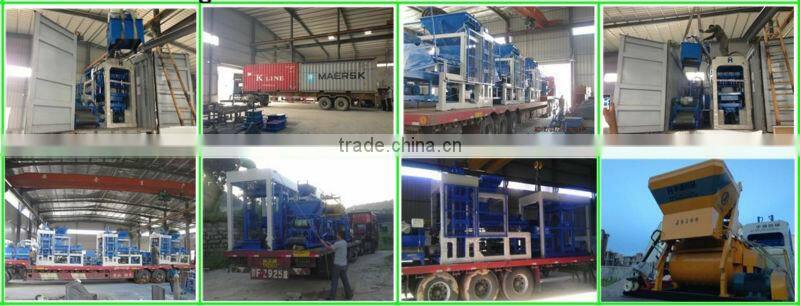

8,Workshop and block machine Shows:
9, Recommended hollow block machine:
10,Our world Clients for intelligent hollow block machine :
11,Pls don`t hesitate to contact me for knowing more infomations of intelligent hollow block machine :
