Help CenterHYM High Competitive QT4-15 Hydraulic Interlocking Brick Machine Price
Related Products
-
QT5-15 Hollow/solid/interlock/pavers Blocks Making Machine Price Paving BlockUS$ 30,000 - 50,000MOQ: 1 Set -
2013 China Supplier Best Seller for Buiding Block Machine QT4-15 Automatic Simple Block Production LineUS$ 18,000 - 25,000MOQ: 1 Set
-
HY Small Size Block Making Machine Clc Block Making MachineUS$ 29,000 - 35,000MOQ: 1 Set
-
HY-QT4-15 Hydraulic Concrete Hollow Block Making Machine PriceUS$ 29,000 - 35,000MOQ: 1 Set
-
Warm Welcomeed Block Making MachineUS$ 30,000 - 36,000MOQ: 1 Set
1,block making machine price
2,price concrete block machine
3.Hydraulic Concrete Block Machine
Approve:ISO9001:2000
Concrete Brick making machine,brick making machine,concrete brick machine,concrete block making machine,hollow brick machine,hollow brick making machine
1.Introduction of interlocking brick machine price :
HuaYuan is a famous designated enterprise by the state of concrete block machinery specialized manufacturer, with over 20 years of history in producing the concrete blocks, HuaYuan use a source of reference from foreign country and local advance technical to produce all type of concrete block making equipments and production line.
HuaYuan has many of excellent technicians, perfection technique equipments, advanced testing system and a whole quality assurance system. The products have a good market at home and abroad, highly trusted and applauded by consumers. Up still now with the high degree of automation, reliable and stable quality with first-class after-sales service,HuaYuanhas fabricated the“Qualitycreates Value” for almost 80 countries in the world.
The leading position of market share in both domestic and international markets, advanced R&D and innovation capability in the block making machine industry and reliance by our clients over the world——all these fully prove our comprehensive strength.
2.Technical Specifications for interlocking brick machine price :
1)Used Japan`s Mitsublishi PLC control system and touchscreen, with data input and ouput;easy operation and lowest failure rate.
2)Compact design and semi-automatic control,with easy operation. Low investment brings you cost-saving.
3)Our machines with harmonic cooperation between mechanical,eletrical and hydraulic machines functions,guaratees a reliable and high production output of concrete products.
♦Raw materials:crushed stone;sand;cement;lime;fly ash;coal gangue;gravel;perlite;and etc.many type od industrial waste.
♦On machine with multiple uses, by changing mould it can produce all type of standard building blocks.
1>Multi-holes block and hollow block;2>Ceramsite heat preservation block;3>Composite heat preservation concrete block.
♥The above production come with good heat preservation performance,can satify the national new energy conservation policy demand.
3. Advantages for interlocking brick machine price :
1).It is a compact machine with electric and hydraulic system, each procedure action locks with each other to guarantee the machine operate safely, easily and dependablely.
2)Through mold-releasing oil cyclinder, the mold box was locked into the vibration table with high rigidity to reach the synchronous vibration, so that the concrete can be fluidified and exhausted in two or three seconds to ensure the high-density, especially suitable to produce the standard blocks, which can be piled up immediately so that the pallet investment can be saved directly.
3)The unique forcing charge system can make use of various kinds of industrial waster and material such as coal ash, cement, sand, stone, slag, and so on. The machine can severs several purposes and produce various specification standard bricks, concrete blocks, porous blocks, paving bricks etc
4.Cement block making machine bricks Sizes and capacity:
A.HY6-15 interlocking brick machine price Blocks Sizes & Output:
Brick |
Sizes |
Output/ mould |
Output/Shift(8hours) |
picture |
Blocks |
390x190x190mm |
4 |
5760-7600 |
|
Porous bricks |
240x115x90mm |
12 |
17280-23040 |
|
Interlocking block |
200x100x60mm |
15 |
21600-28800 |
|
Solid bricks |
240x115x53mm |
26 |
37440-49920 |
|
B.Other Block Machine Output
5.Main technical parameters of QT4-15 interlocking brick machine price
Cycle Time |
15-20(s) |
Total Power |
23.6(kw) |
Vibration Type |
hydraulic vibration |
Vibration Frequency |
3800-4500(Times/sub) |
Machine Dimension |
8200×4350×2700(mm) |
Pallet Size |
850×560×20(mm) |
Vibration Force |
68KN |
Gross Weight |
6200(kg) |
Production/Mould |
4pcs/m(390x190x190mm) 12 pcs/m (240x115x90mm) 26 pcs/m (240x115x53mm) 15 pcs/m (200x100x60mm) |
Productions/8h |
5236-7680pcs(390x190x190mm) 17280-23040pcs(240x115x90mm) 37560-49080pcs(240x115x53mm) 9636--28800pcs (200x100x60mm) |

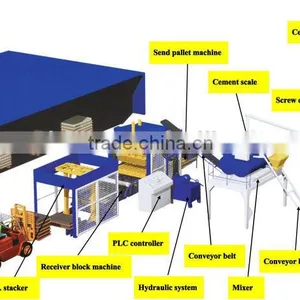

6.Block making production line:
7.Products display & Workingshop:
8.Block & Brick Sample:
9.Contact Me:
