Specifications
1.Reasonable structure2.Can make extensive use of raw materials
3.Variety of specifications mould
Specifications
1.Reasonable structure
2.Can make extensive use of raw materials
3.Variety of specifications mould

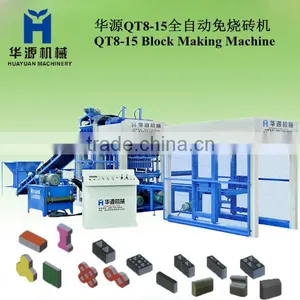

1. Brief introduction of QT series brick making machine
1).QT series brick machine can produce hollow&solid bricks by clay,shale,flyash,slag or mixed waste material,
2) .The spiral cut reamer of the machine adopt wear-resistance metal spray painting technology;
3).The upper stage mixing shaft, the cut reamer big shaft, the up-down body etc. are all passed the aging, quenching and tempering process.
4).The reducer gearwheel is the hardened tooth face;
5). Reasonable design, compact structure, the equipment can work steadily without installing of foundation bolts;
6). It can largely reduce the consumption of power for vibration in working process.
2. Characteristics of QT series brick making machine
1).Hi-Technology---It's full automatic control by computer system with LCD Touch Panel;
2).Reliable Operation---All the equipments have adopted the Europe hi-technology;
3).Remote Communication System---The whole production line is controlled by computer system ;
4).Long Service Life--- The after-sale service provide you best security;
5).Sound Quality--- We are proffesional in brick making machines;
6).Multi-products Function---This machine can be used to produce all kinds of bearing blocks ,split blocks, multi-tow-hole blocks, common clay bricks, color pavement bricks, grass-planting bricks, curbs, etc
QT8-15 Type brick machine to change the mold can produce road hard shoulder, river brick, slope protection brick, square brick piers brick, grass brick products, the use of a machine. The low-frequency feeding, high frequency tap, desk is molded together vibration let the concrete in two to three seconds to fully liquefied exhaust, to achieve high-density, high strength. Advanced hydraulic proportional control technology can easily control any branch oil line pressure and the amount of oil in the hydraulic system, enabling the use of different raw materials to produce the same high-quality products. PLC intelligent control of the whole process, with data input and output devices, to achieve the ideal of the man-machine dialogue, the control system also includes a advanced security logic control and fault diagnosis system. Integrated oil system, the use of international standardization mode, high-life, low-power design, the introduction of a large number of imported components is another guarantee of high quality. Vibration system is composed of two parts, both the vibration and the pressure vibration, product molding density uniformity. Novel system of fabric feeding accuracy and consistency of high density products.
Technological Process |
|
Material → Activation→ Batching → Mixing → Conveyance ↓
Delivery ← Curing ← Palletization ← Moulding |
Description of Brick Making Machine
Concrete brick machine, concrete Brick Making Machine , concrete hollow brick machine, concrete Brick Making Machine
1.Our Brick Making Machine Use Germany Siemens PLC control system and Siemens Touch Screen, use Schneider and
Omron relays and contactors:
A. Siemens PLC, with great adaptability, guarantees the stability and reliability of the machine;
B. Visualization touch screen, with easy operation;
C. High-quality electrical components from Schneider and Omron;
2. Use Frequency Conversional Control Technology, which controls the block making:
A. Frequency Conversion Control: Guarantees the precise and parallel movement between tamper head and mould,
protects the products from transfiguration; Increases the production rate by improving the vibrating efficiency;
B. Controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;
C. Power saving: 30%;
3. Use Double high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure
A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;
B. Guarantee production stability;
4. 360° Multi-Shaft Rotating and Compulsory Feeding:
A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products
are guaranteed;
B. This uniform feeding is applicable for different kinds of raw materials and moulds;
5. Use heat treatment on moulds and main parts of the machines:
A. Heavy duty machine structure and wear resistant moulds;
B. The hardness reaches up to HRC 52-58;
C. Greatly improves the using lifetime of the machine by 50%.
Main technical parameters
Cycle Time |
15-20(s) |
Total Power |
31.7(kw) |
Vibration Type |
hydraulic or moto vibration |
Vibration Frequency |
3800-4500(Times/Sub) |
Machine Dimension |
9800×3600×2800(mm) |
Pallet Size |
1100×680×25 (mm) |
Vibration Force |
95KN |
Gross Weight |
10500(kg) |
Rated Pressure |
31.5(mpa) |
Stacking Mac Power |
2.2(kw) |
Production/Mould |
8pcs/M (390x190x190mm) 21 pcs/M (240x115x90mm) (240x115x53mm) 28 pcs/M (200x100x60mm)
|
Production /8h |
11520--15360pcs (390x190x190mm) 30240--40320pcs (240x115x90mm 57600--76800pcs (240x115x53mm) 40320--53760pcs (200x100x60mm)
|
Other information
1. Area: Workshop area: 150-200m2, all factory are 3000m2,the bigger, the better.
2. Labors : five to eight
3. Ratio of raw material: cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
Welcome to visit my company anytime, we have machines in customer site available for you to see running plant, for any technique support, please contact with us
