HY-QT8-15 Cement Block Making Machine Fly Ash Brick Making Machines

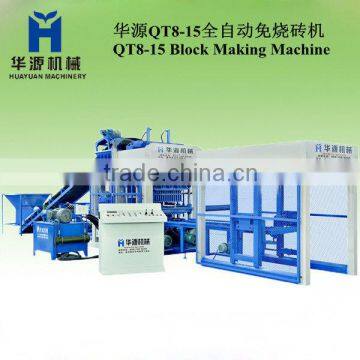

HY-QT8-15 Cement Block Making Machine Fly Ash Brick Making Machines photo-1
US$ 35,000 - 41,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Concrete
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Hollow Block Making Machine
Brick Raw Material Concrete
Processing Brick Production Line
Method Hydraulic Pressure
Automatic Yes
Capacity 20sets per month
Place of Origin Fujian, China
Brand Name HYM
Model Number QT8-15
Voltage 31.5mpa
Power 38.1kw
Dimension(L*W*H) 9800*3600*2800mm
Certification ISO9001:2000
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1,full automatic block machine
2,fly ash brick making machines
3.manual block making machine
il brick making machine

1,full automatic block machine
2,fly ash brick making machines
3.manual block making machine
il brick making machine



1,Main technical parameters:



Cycle time: 15-20(s)Vibration Type: hydraulic vibration
Total Power: 31.7(kw)Vibration Force: 95(KN)
Vibration Frequency: 3800-4500(times/sub)Gross Weight: 10500(kg)
Pallet size : 1100×700×25mmMachine Size: 9800*3600*2800mm
Rated Pressure: 31.5(mpa)
Block Specification :Production per shift (8 hours)
390×190×190mm 8(pcs)11,520-15,360(pcs)
240×115×53mm 40(pcs)57,600-76,800(pcs)
240×115×90mm 21(pcs)30,240-40,320(pcs)
200×100×60mm 28(pcs)40,320-53,760(pcs)



2,Main Technical Specifications:



A. Intelligence PLC touch screen and pure electrical element (high automatic and easy to operate ) ;

B. Arch breaking type of rapid feeding device (better feeding multi-hole bricks with better uniformity) ;

C. Forming production faster and with higher compactedness ;

D. High-heat treatment special technology (to make the mould more durable and more firm) .



Raw materials :crushed stone ,sand, cement, many types of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite , etc.

Multiple uses. It can produce all types of standard building blocks by changing mould.

A, Multi-holes block and hollow block ;

B, Ceramsite heat preservation block;

C, Composite heat preservation concrete block.



3.Clay Brick Sizes and capacity:

Brick

Sizes

Output/

mould

Output/Shift(8hours)


Blocks

390x190x190mm

8

11,520-15,360

HY-QT8-15 cement block making machine fly ash brick making machines

Porous bricks

240x115x90mm

21

30,240-40,320

HY-QT8-15 cement block making machine fly ash brick making machines

Interlocking block

200x100x60mm

28

40,320-53,760

HY-QT8-15 cement block making machine fly ash brick making machines

Solid bricks

240x115x53mm

40

57,600-76,800

HY-QT8-15 cement block making machine fly ash brick making machines



4. Production Flow Introduction:

HY-QT8-15 cement block making machine fly ash brick making machines

HY-QT8-15 cement block making machine fly ash brick making machines
5.Products display:

 HY-QT8-15 cement block making machine fly ash brick making machines
HY-QT8-15 cement block making machine fly ash brick making machines
HY-QT8-15 cement block making machine fly ash brick making machines
HY-QT8-15 cement block making machine fly ash brick making machines

6.Block and brick Sample:



HY-QT8-15 cement block making machine fly ash brick making machines

 7.World Customers & Contact :

HY-QT8-15 cement block making machine fly ash brick making machinesHY-QT8-15 cement block making machine fly ash brick making machinesHY-QT8-15 cement block making machine fly ash brick making machines
