Home > Products > Automatic Block making mchine > HYM high pressuer baking-free brick machine QT10-15 limestone brick making machine
HYM high pressuer baking-free brick machine QT10-15 limestone brick making machine
- 20 Set / Sets per Month
- xiamen
- T/T
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Concrete |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 20sets block machine per month | Place of Origin: | Fujian, China | Brand Name: | HYM |
Model Number: | QT10-15 cement brick making machine | Voltage: | 220V/380V | Power: | 45.1KW |
Dimension(L*W*H): | 11500*4050*2800MM | Certification: | ISO | Warranty: | 1 year for cement brick making machine |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
(1) High quality and low costing(2) PLC control system
(3) Latest technic
(4)Special design
(5)Easy maintance
HYM high pressuer baking-free brick machine QT10-15 limestone brick making machine

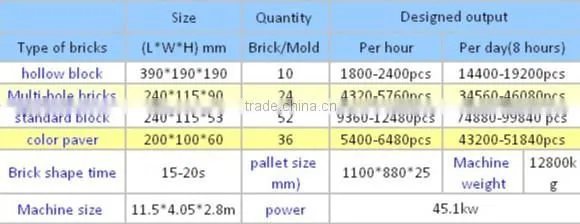

Main specification:
materials :crushed stone ,sand, cement, etc; many type of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite, ect. .
multiple uses, it can produce all type of standard building blocks by changing mould.
1,Multi-holes block and hollow block .
2,Ceram site heat preservation block.
3,Composite heat preservation concrete block
The above production come with good heat preservation performance, and it meets the new national energy conservation policy.
QTY10-15 automatic limestone brick making machine other information:
1. Area: Workshop area: 150-200m2, all factory area 3000m2, the bigger, the better.
2. Workers : three or four.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight::
(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG
5. raw material consumption per day:220-230T
6. water consumption per day:3%-5% of raw material .Weight.
Advantages of concrete block machine QT10-15
A:Hydraulic from Taiwan, Hydraulic valve from Japan ,well-known brand,the quality is very good.
B:the PLC is Siemens,touch screen.
C:the steel is our best national standard No.45 steel.
D:the welding is the best welding technology in our country,anti-wear, aseismatic,anti Moist
E:the mould is high temperature carburizing heat treatment through 900 Degrees Celsius

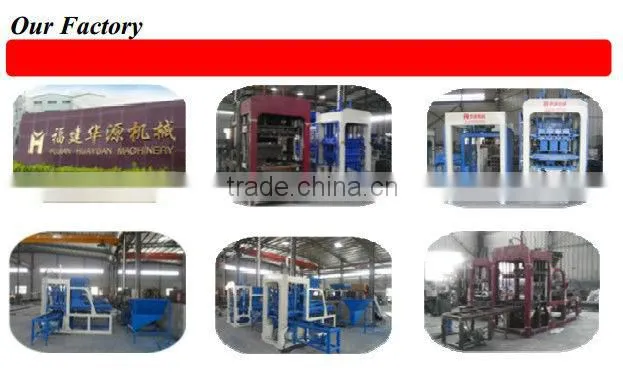

Our factory is a professional manufacturer of block machine, batching plant, mixer with over 20 years' experience in china. We have many designs of block machine from Semi-automatic to full automatic , from small capacity to big capacity.
We have been exported to south Asia , Middle east, Africa area and so on .
And the certificate we can get SGS certificate, BV certificate and any certificated you need.
Pls don`t hesitate to contact me for knowing more infomations of hollow block machine:
