QT8-15 automatic brick making machine price/hydraulic brick making machine line
- 20 Set / Sets per Month
- xiamen
- T/T
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Concrete |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 20sets per month | Place of Origin: | Fujian, China | Brand Name: | HYM |
Model Number: | QT8-15 automatic brick making machine | Voltage: | 220V/380V | Power: | 38.1KW for automatic brick making machine |
Dimension(L*W*H): | 9800*3600*2800MM | Certification: | ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
QT8-15 automatic brick making machine price/hydraulic brick making machine line
Multifunctional brick machine like solid block making machine,concrete block making machine,hollow block making machine,cement block making amchine and fly ash block making machine
Advantages of QT8-15 automatic brick making machine price
1. Automatic weighing system
2. Twin shaft compulsory mixer
3. Mitsubishi PLC, Touch screen control unit
4. Hydraulic proportional relief valve automatically adjust the oil flow and speed
5. Heave duty frame of steel structure for heave working
6. Mould heat treatment with wire cutting
7. One production line can make all kinds block, just only change the mould
Bricks size and Output of QT8-15 automatic brick making machine price
Main Features and Parameters of QT8-15 automatic brick making machine price
Cycle Times | 15-20s | Vibration Type | Hydraulic Vibration |
Total Power | 38.1(kw) | Vibtation Force | 85(kn) |
Motor Frequency | 50Hz | Gross Weight | 10500kg |
Pallet Size | 900*840*25mm | Machine Size | 9600*3600*2800mm |
Rated Pressure | 31.5 (mpa) | Stacking Machine Power | 2.25 (kw) |

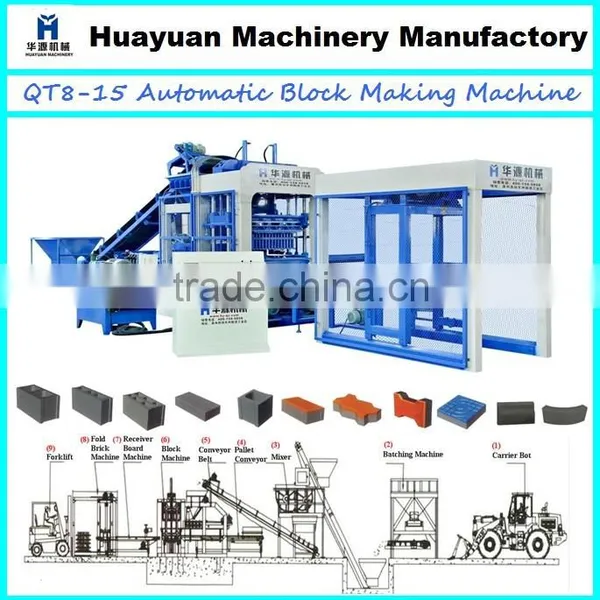

Whole line production of QT8-15 automatic brick making machine price
Itroduction of QT8-15 automatic brick making machine production line

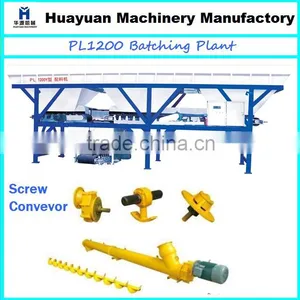

Batching Plant: This is the starting point of block making productione process. It consists of two loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.
Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. The mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mix automatically, as per requirement.
Conveyer Belt: When the Batching plant’s weighing bin trips according to the PLC control, the material comes to this conveyer belt. The material is then carried to the Mixture Machine.
Block making machine:This is the key of the production line.It can press the mixed material.It can make various hollow block,solid brick,paver brick and kerbston.
Stacker:Stacker is used to lay the block automatically,it is high effiicent and labor saving
QTY8-15 automatic brick making machine price other information:
1. Area: Workshop area: 150-200m2, all factory area 3000m2, the bigger, the better.
2. Workers : three or four.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight::
(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG
5. raw material consumption per day:220-230T
6. water consumption per day:3%-5% of raw material .Weight.
Brick strength made by QT8-15 hollow block machine
Hollow blocks can reach 8-10Mpa,Solid bricks can reach 10-12Mpa,so they have a higt pressure,can be widely used.
Our brick making machine clients all over the world
Buying tips
We have nine kinds of block machine, from small size to big size, when you want to buy, please tell me
1.Which block/brick you wanted?(picture is better)
2.Your brick size( length, width and height)
3.Your brick picture and brick production
4.What's your capacity?
5.How big is your land.
