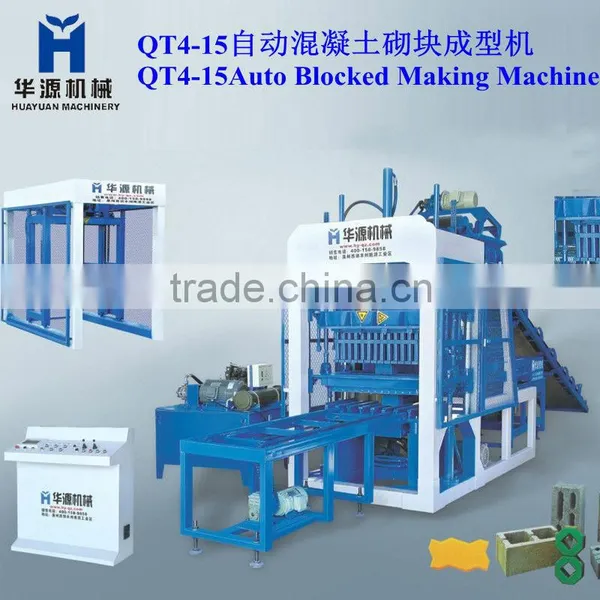

QT4-15 auto brick making machine
1.lifetime:more than 20years
2.responable price
3.manufacturer factory
4.lower power:22.9k
2014 Newly automatic brick making machine QT4-15 cement brick making machine price
1.Huayuan brick making machine Manufactory Introduction:
HuaYuan brick making machine manufactory is a famous designated enterprise by the state of brick making machine specialized manufacturer, with over 20 years of history in producing the concrete blocks, HuaYuan use a source of reference from foreign country and local advance technical to produce all type of concrete block making equipments and production line.
HuaYuan has many of excellent technicians, perfection technique equipments, advanced testing system and a whole quality assurance system. The products have a good market at home and abroad, highly trusted and applauded by consumers. Up still now with the high degree of automation, reliable and stable quality with first-class after-sales service,HuaYuan has fabricated the“Qualitycreates Value” for almost 80 countries in the world.
The leading position of market share in both domestic and international markets, advanced R&D and innovation capability in the block making machine industry and reliance by our clients over the world——all these fully prove our comprehensive strength.
2.1, Structure of brick making machine:
QT4-15 brick making machine is weldely by using special thick-walled rectangle welding method.
The transmission shaft and gears are made of alloy steel which entitles them much stronger and more durable.
The skip working platform is made of manganese steel. Which extends it’s service life.
Other parts of brick machine machine are all in accordance with national’s standard, besides, we also import spare parts from famous international company, such as Siemens from Germany.
2.2, Automatic Device of brick making machine:

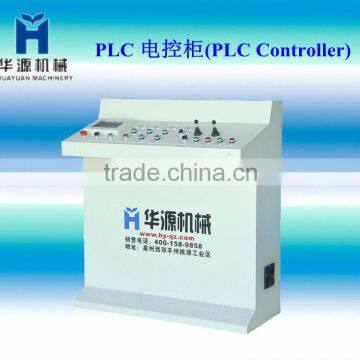

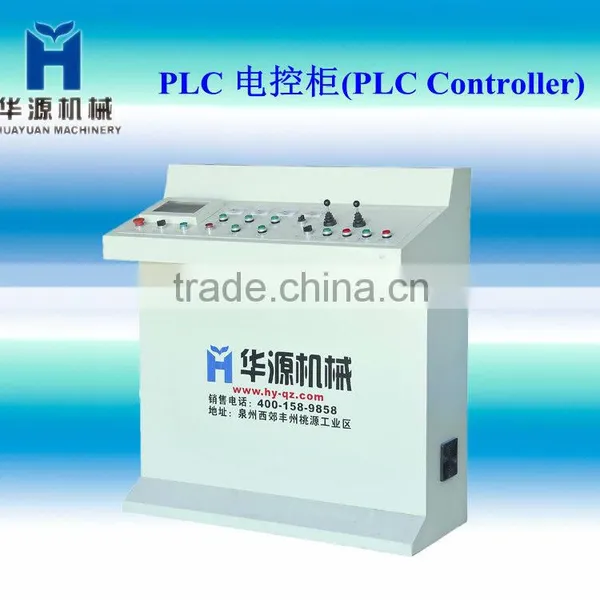

Our brick making machine employs the famous international PLC control of Siemens, besides, other electrics elements are also imported from world famous manufacturers .It can work automatically, semi-automatically and manually according to your preference.
2.3, Design Characteristics of our brick making machine:

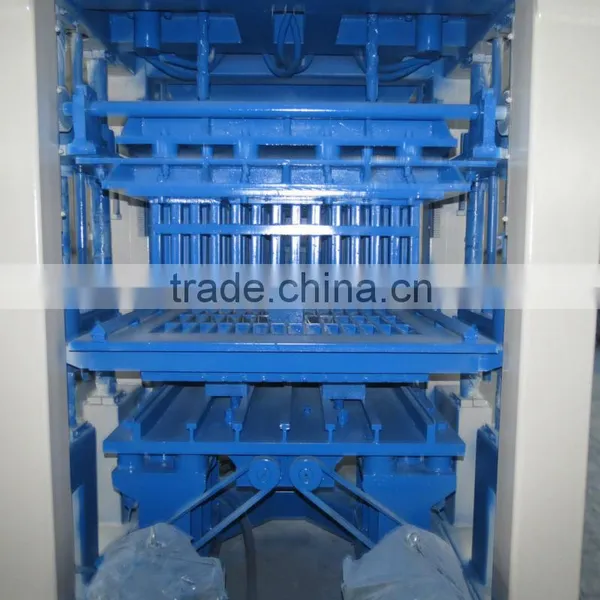

Vibration superiority: Table and Mould vibration work together to achieve products of high density.
The upper mould and mould case are driven by gears and racks, Chain which ensures the upper mould and mould case move accurately.
There are rubber vibration absorbing shims on both the upper mould and vibration platform, which can reduce energy consumption.
It is easy to modify the vibration force and obtain the best vibration frequency.
In the process of sending pallets. The rocker converts its circular motion into liner motion of the connection rod , so pallets will uniformly accelerate and move smoothly.
2.4, Production Area of autoatic brick making machine:
Production scale: | 3700-6000m² (300-500m² for production, 300-600 m² for warehouse, 100-200m² for office and 3000-5000m²for the site ground) |
Workers: | 4-6 people |
Water Consumption | 12 Ts of water per day for production |
Power Consumption | 220-380V power supply, total installed capacity of 60KW, and average efficiency of 38KW. |
2.5, QT4-15 Cement brick making machine bricks Sizes and capacity:
Brick | Sizes | Output/ mould | Output/Shift(8hours) | picture |
Blocks | 390x190x190mm | 4 | 5760-7680 |
|
Porous bricks | 240x115x90mm | 12 | 17280-23040 |
|
Interlocking block | 200x100x60mm | 15 | 21600-28800 |
|
Solid bricks | 240x115x53mm | 26 | 37440-49920 |
|
3.Main technical parameters of QT4-15 brick making machine:
Cycle Time | 15-20(s) | Total Power | 22.9(kw) |
Vibration Type | hydraulic vibration | Motor Frequency | 50HZ |
Machine Dimension | 8200×4350×2700(mm) | Pallet Size | 850×560×20(mm) |
Vibration Force | 58KN | Gross Weight | 6200(kg) |
4.automatic brick making machne simple production line:

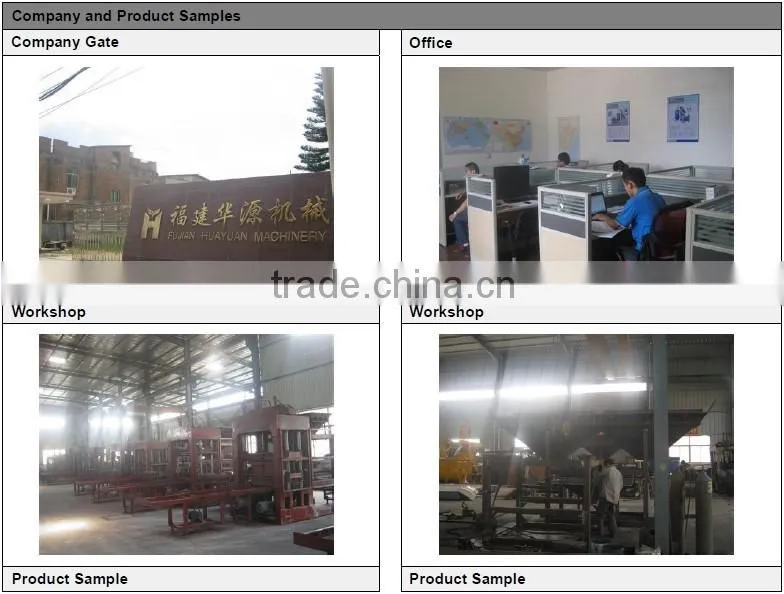

5.Products display & Workingshop produce brick making machine:

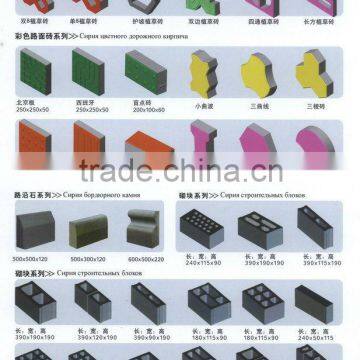

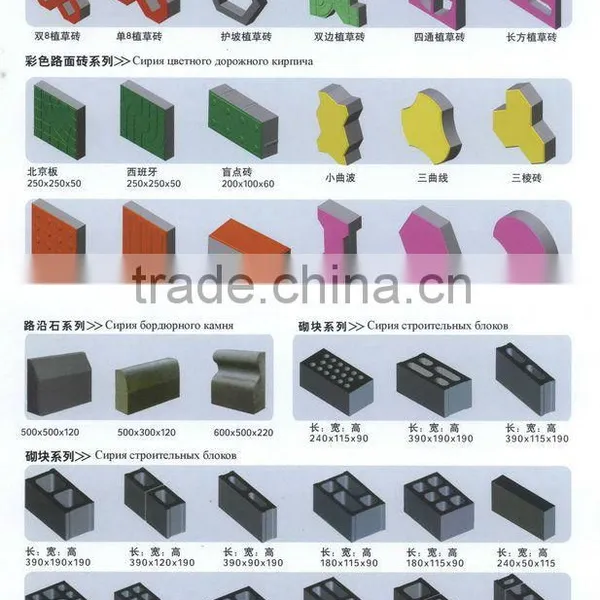

6.Block & Brick Sample were producted by brick making machine:
7. Our Customers for our brick making machine:
8.Contact Me to know more about brick making machine:
11.Auxiliary Products suit for auto brick making machine:
