Specifications
1.automatic block making machine2.ISO9001,SGS,BV
3.PLC-Siemens
4.Various high density bricks
5.Patented product
2013 concrete block and hollow block maker machine with high degree of automatic QT6-15
| ycle Time | 15-20(s) | Total Power | 37.4(kw) |
| Vibration Type | hydraulic vibration | Vibration Frequency | 3800-4500(Times/Sub) |
| Machine Dimension | 9450×3300×2700(mm) | Pallet Size | 880×680×20(mm) |
| Vibration Force | 68KN | Gross Weight | 7500(kg) |
| Rated Pressure | 25(mpa) | Stacking Machine Power | 2.25(kw) |
| Production per Mould | 6pcs/M (390x190x190mm) 15pcs/M (240x115x90mm) 33pcs/M (240x115x53mm) 20pcs/M (200x100x60mm) |
Production /8hours | 8640--11520pcs (390x190x190mm) 21600--28800pcs(240x115x90mm) 47500-63360pcs (240x115x53mm) 27200-30000pcs (200x100x60mm) |
Our Advantage:
1. Automatic weighing system
2. Twin shaft compulsory mixer
3. Simens PLC, Touch screen control unit
4. Hydraulic proportional relief valve automatically adjust the oil flow and speed
5. Heave duty frame of steel structure for heave working
6. Mould heat treatment with wire cutting
7. One production line can make all kinds block, just only change the mould
.

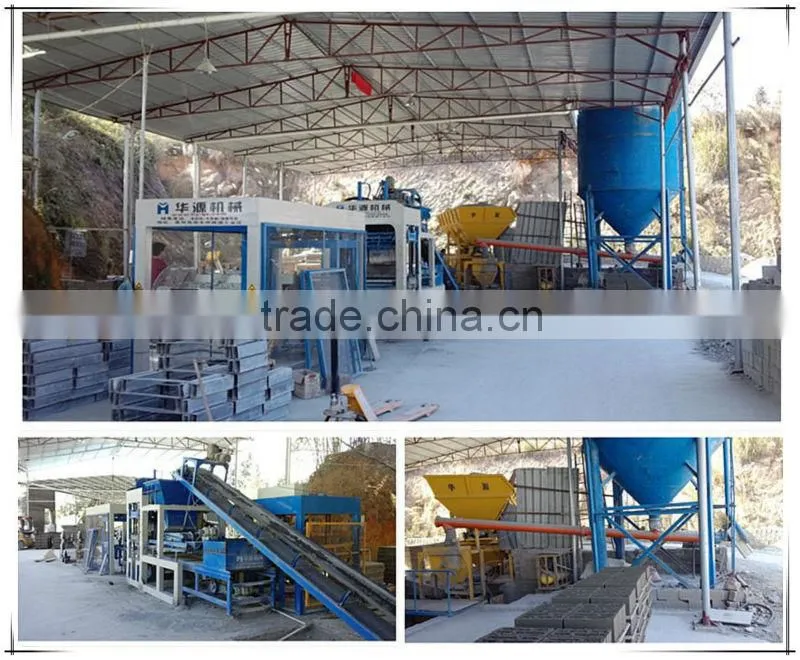

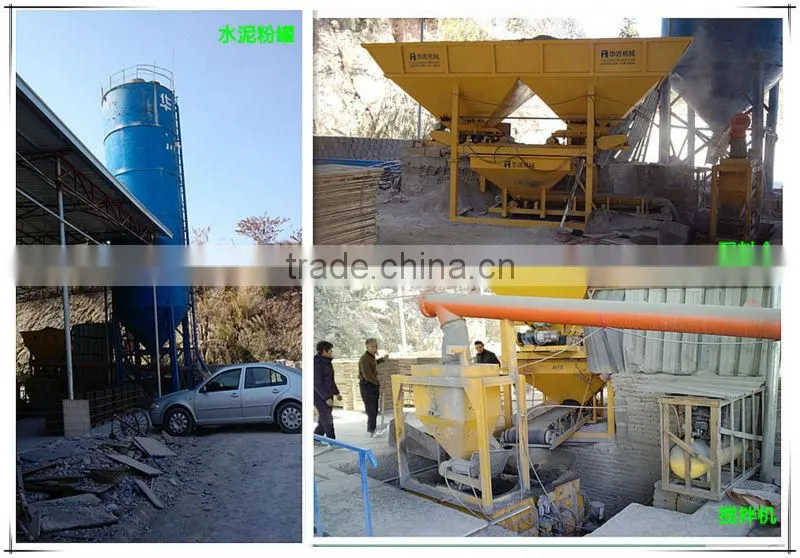

Batching Plant: This is the starting point of block making productione process. It consists of two loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.
Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. The mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mix automatically, as per requirement.
Conveyer Belt: When the Batching plant’s weighing bin trips according to the PLC control, the material comes to this conveyer belt. The material is then carried to the Mixture Machine.

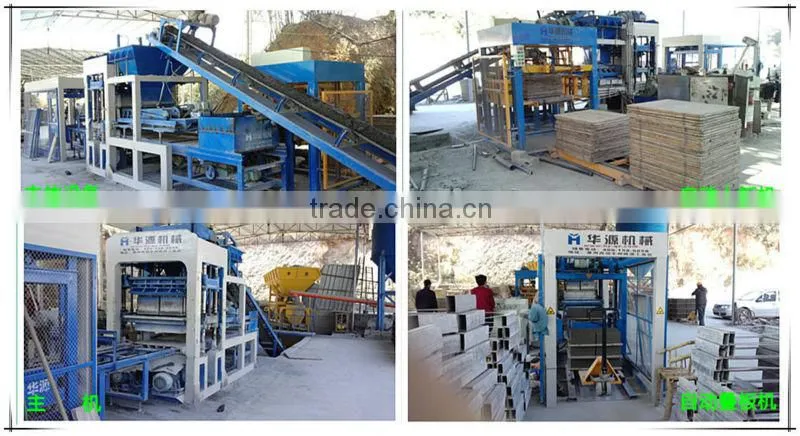

Block making machine:This is the key of the production line.It can press the mixed material.It can make various hollow block,solid brick,paver brick and kerbston.
Stacker:Stacker is used to lay the block automatically,it is high efficent and labor saving
1.Semi-automatic block machine
2.Automatic block machine
3.Pipe block making machine
4.Accessory equipmentw with block machine

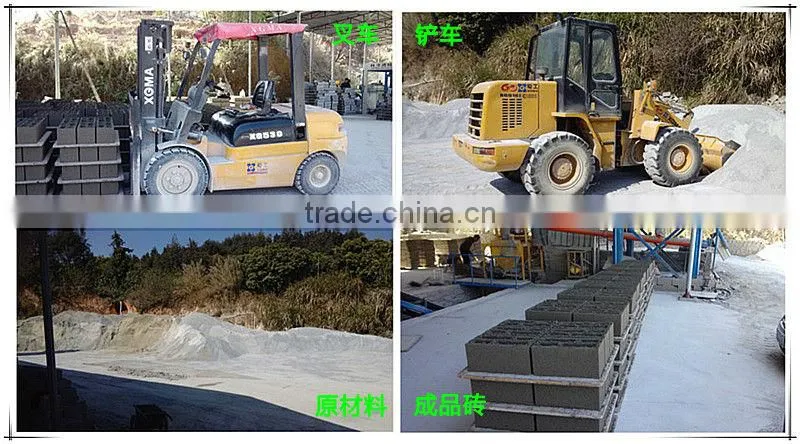

cement silo, forklift, wheel loader, concrete mixer, cement scale , screw conveyor
bamboo pallet.PVC pallet etc.
5.Concrete Mixer Station
6.Paving block machine
1. what is the capacity?
15s-20s/ Mold 1200-1500M/ 8 hours
Please provide the brick sizes and types.It varies from different sizes.
2.How many power needed?
Bathing plant (2 bins) 6.6KW /Batching plant (3bins) 10.6kw
Concrete Mixer JS 500 18.75KW
Host Machine 37.4KW
Automatic Stacker 2.25KW
3.How Many People needed?
5-7 worker will be need
1 for Wheel loader
1 for concrete mixer
1 for putting pallet
1 for PLC controller
2 for tranportation of finished block.
4. Can i produce different kind of block and color paver?
Yes, it can produce different kind of block by changing mold.For color paver , it just need
add a color feeding machine.
5.How about the installation and training?
Engineer is available to install the machine and train the workers when the
machine arrive buye's factory
6.When i need the spare part , how i can get it and how long it takes?
You can contact us, and we will sent it via express like dhl etc.
It usually take 3-4days.
Pls do not hesitate to contact me if you have question about brick manufacturing machine
