concrete block machines
1.lifetime:more than 20years
2.responable price
3.manufacturer factory
4.pallet:900*840*25mm
Price concrete block machines HYM QT8-15 Automatic concrete block machine for sale price
1,Main technical Specifications:
Oriented column: made of special steel, chrome plated , and can bear powerful suppress and wears well.
Mold head: synchronize with mechanic, electricity and hydraulic. Products made by the same pallet are within narrow degree of errors.
Feeding: Sensor and hydraulic are droved synchronically in proportion, the force to swing material and arch-breaking generates strong centrifugal power to feed materials, which results in rapid feeding and particularly good for thin-walled products with multi-holes.
Vibration: Hydraulic drive and multi-source vibration system, the computer-controlled hydraulic drive generated vertical synchronization. Adjustable frequency makes it possible to feeding in low-frequency. High frequency operation guarantees good effects of different raw materials and the vibration acceleration is up to 17.5.
Control system: Computer control, HMI, electric parts uses brands like Mitsubishi. With experienced production actions, design philosophy integrated international and Chinese trends. To operate it requires small training and no experts. Its strong memory makes it possible to be upgraded.
Store and distribute materials devices: the computer-controlled material supply avoids suppressing materials, and ensures well-distributed feeding and stable and well product intensity.
Raw materials :crushed stone ,sand, cement, etc; many type of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite, ect. .
multiple uses, it can produce all type of standard building blocks by changing mould.
1,Multi-holes block and hollow block .
2,Ceram site heat preservation block.
3,Composite heat preservation concrete block
The above production come with good heat preservation performance, and it meets the new national energy conservation policy.
2,Main technical parameters
Cycle Time | 15-20(s) | Total Power | 38.1(kw) |
Vibration Type | hydraulic vibration | Vibration Force | 85KN |
Gross Weight | 10500(kg) | Motor Frequency | 50HZ |
Pallet Size | 900×840×25(mm) | Machine Size | 9800×3600×2800(mm) |
Rated Pressure | 31.5Mpa | Stacking Power | 2.25kw |
Output:
Bricks | Brick sizes | Production per Mold(pcs) | Production per Shift(8 hours) | Picture |
Perforated brick | 240x115x90mm | 18 | 25920-34560Pcs |
|
Solid brick | 240x115x51mm | 42 | 60480-80640Pcs |
|
Hollow brick | 390x190x190mm | 8 | 11520-15360Pcs |
|
Color paver | 200x100x60mm | 28 | 31600-40320Pcs |
|
3,QT8-15 Concrete Block Machine production line
4,QTY8-15 Bricks and block machinery other information:
1. Area: Workshop area: 150-200m2, all factory area 3000m2, the bigger, the better.
2. Workers : three or four.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight::
(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG
5. raw material consumption per day:220-230T
6. water consumption per day:3%-5% of raw material .Weight.
5.QTY8-15 Bricks and block machinery guarrantee:
We give our automatic cement brick making machineone year guarantee,
during the period we can supply spares if they are broken.
6.Block strength made by QTY8-15 Bricks and block machinery
Hollow blocks can reach 8-10Mpa,Solid bricks can reach 10-12Mpa,so they have a higt pressure,
can be widely used.
7.Advantages of QTY8-15 Bricks and block machinery:
A:Hydraulic from Taiwan, Hydraulic valve from Japan ,well-known brand,the quality is very good.
B:the PLC is Siemens,touch screen.
C:the steel is our best national standard No.45 steel.
D:the welding is the best welding technology in our country,anti-wear, aseismatic,anti Moist
E:the mould is high temperature carburizing heat treatment through 900 Degrees Celsius
8,Workshop and Products Shows:
9, Recommend products:
10,Our world Clients:
11,Pls don`t hesitate to contact me:

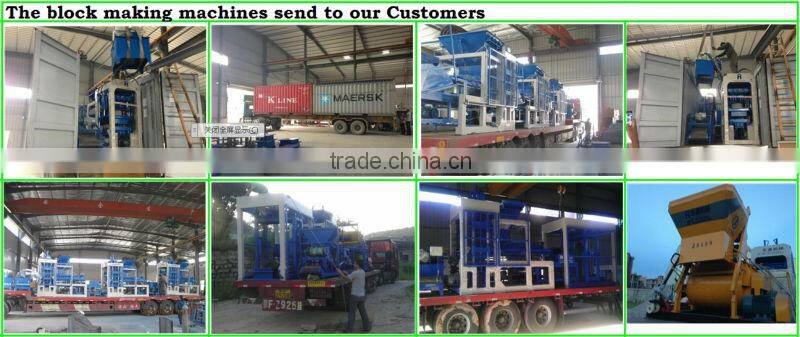

12.the concerte blocks making machine send to our customers:
13.Auxiliary Products
