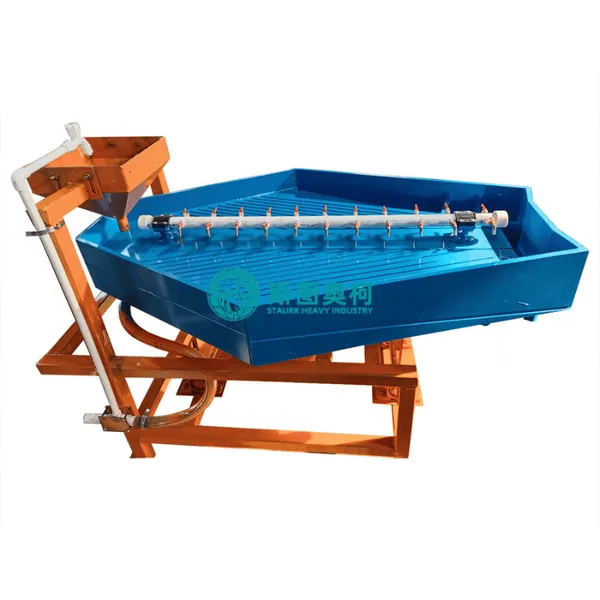

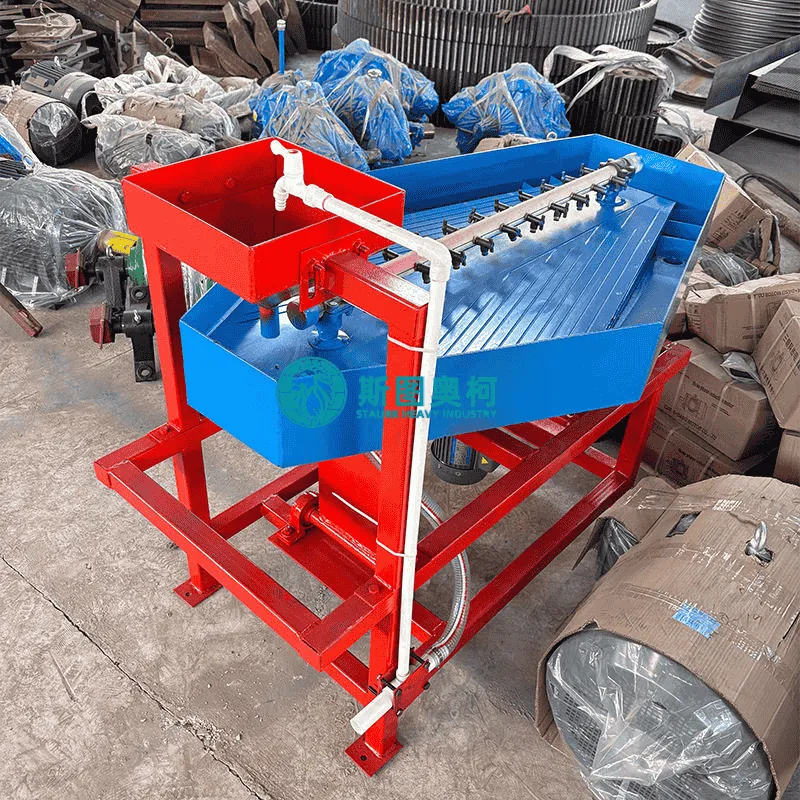

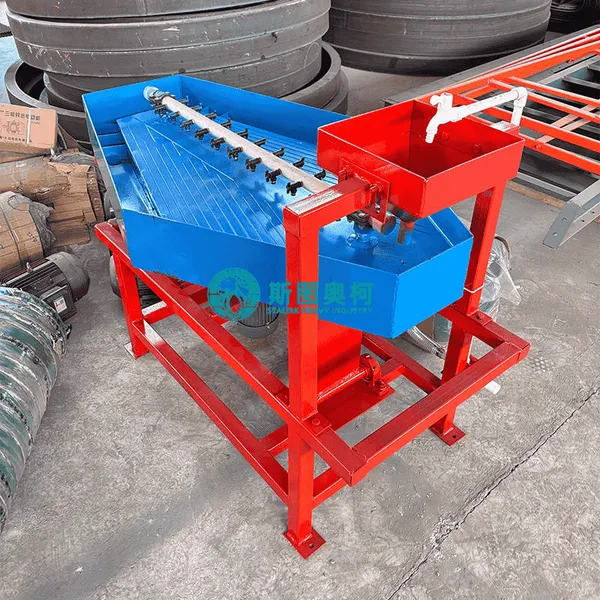

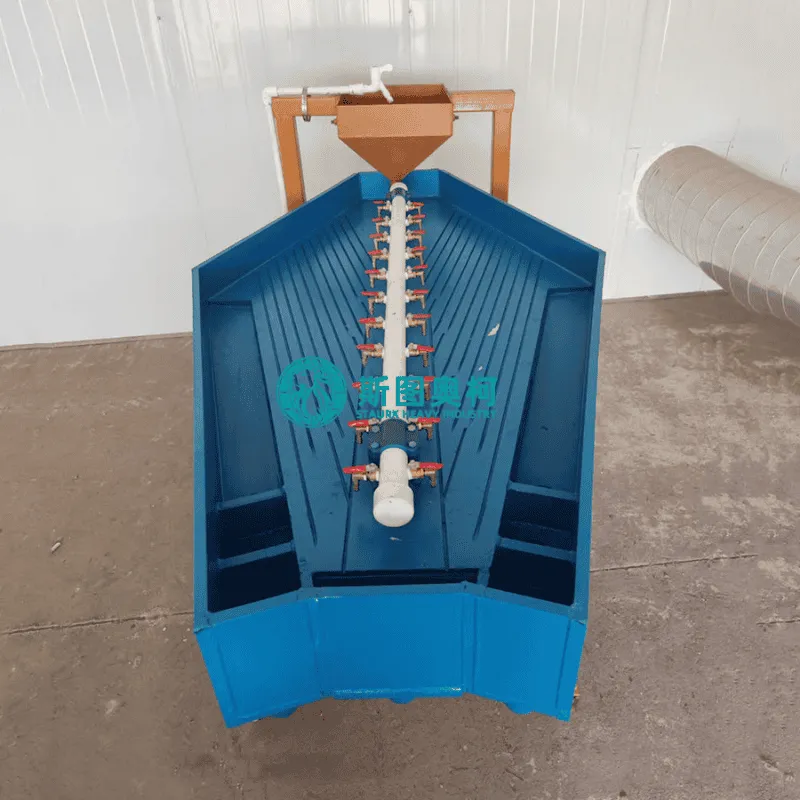

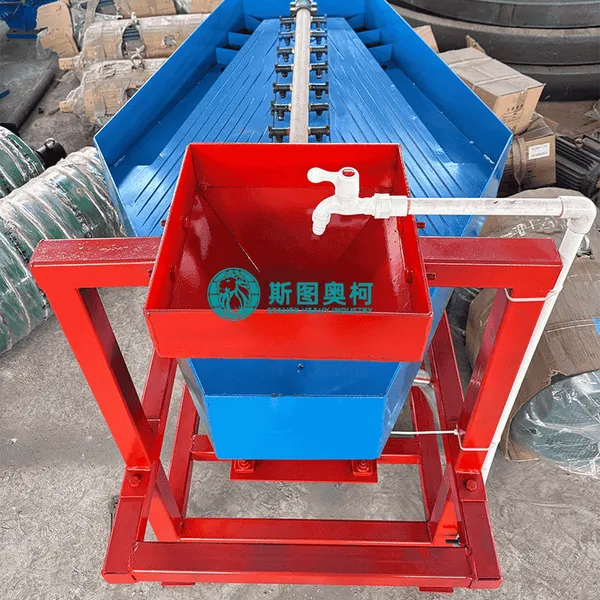

Gemini Shaking Table Manufactured Henan Staurk Machinery Co.,Ltd
1. Product Introduction
Gemini Shaking Table is an efficient gravity beneficiation equipment, also known as twin shaker or precious metal shaker. Its core is a double bed differential reciprocating structure. After the slurry is uniformly fed in, it is sorted by mineral density layer under the combined action of transverse water flow and asymmetric shaking, producing concentrate, intermediate ore, and tailings respectively.
2. Application
Widely used for the separation and purification of precious and rare metals such as gold, silver, tungsten, tin, tantalum, and niobium, as well as for the removal of impurities from non-metallic minerals such as fluorite and quartz.
3. Working Principle
Motor driven differential mechanism drives the double bed surfaces to perform asymmetric reciprocating shaking; After the slurry is evenly spread on the inclined bed surface, the mineral particles are loosely layered according to density differences under the action of transverse water flow and bed shaking. Heavy minerals settle at the bottom layer of the bed and move towards the concentrate end with shaking; Light minerals float on the upper layer and flow towards the tailings side with the water flow, ultimately forming clear fan-shaped zones and producing concentrates, middling, and tailings.
4. Advantages
①. The stroke, flushing frequency, bed inclination angle, and flushing water volume can all be accurately adjusted
②. The bed surface is made of wear-resistant and anti-corrosion fiberglass or polyurethane material
③. Compact structure, small footprint, low energy consumption, and no chemical pollution
④. High precision and strong stability in mineral processing
5. Technical Specifications
Model |
Feed Size (mm) |
Capacity (t/h) |
Stroke (mm) |
Stroke Frequency (r/min) |
Water Consumption (t/h) |
Power (kW) |

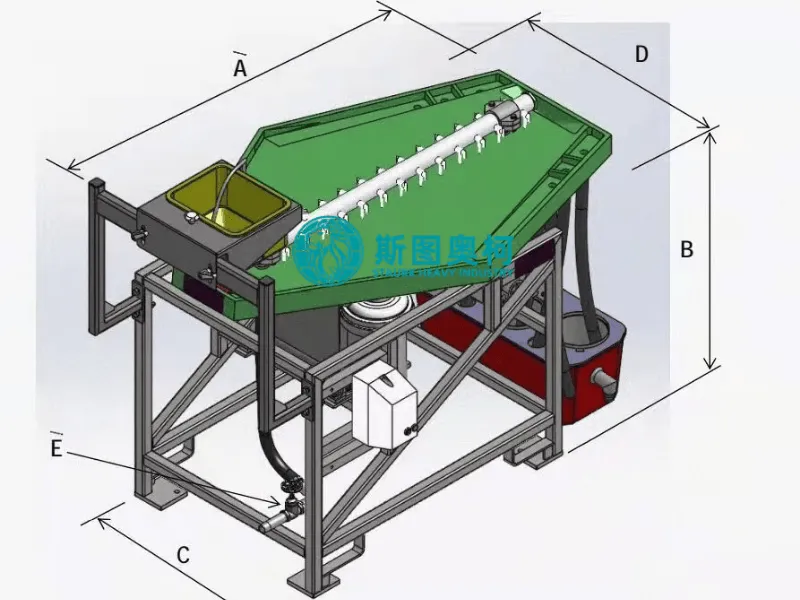

Dimensions L×W×H (mm) |
GT-60 |
0–2 |
0.1–0.4 |
6–15 |
280 |
0.2–1 |
0.55 |
1420×1100×1210 |
GT-250 |
0–2 |
0.2–0.8 |
8–18 |
350 |
0.4–1.5 |
0.75 |
2200×1500×1500 |
GT-1000 |
0–2 |
0.6–1.2 |
11–20 |
380 |
0.6–1.9 |
1.1 |
2800×1900×1500 |
6.Our Solutions
