Gold CIP CIL Production Line Manufactured Henan Staurk Machinery Co.,Ltd
1. Product Introduction
The CIP and CIL production lines for gold ore slurry are the core processes of modern gold extraction. By directly adsorbing and recovering gold from cyanide slurry using activated carbon, the recovery rate and economic benefits are significantly improved.
2. Application
Large scale high-grade gold ore beneficiation plants, gold bearing oxidized ores (especially low-grade ores), gold ores with a high amount of associated precious metals, pre-treatment processes for difficult to process gold ores, flotation gold concentrates, and gravity tailings.
3. Working Principle
The working principle of the CIP and CIL production lines for gold ore slurry is to first grind the gold ore finely, and then leach it with sodium cyanide solution under alkaline conditions to dissolve the gold and form soluble gold cyanide complexes; Subsequently, activated carbon is added to directly adsorb gold from the slurry through its huge specific surface area, achieving enrichment. CIP is "leaching first and then adsorption", while CIL is "leaching while adsorption". Both use a countercurrent process to improve efficiency, and ultimately obtain high-purity gold ingots through steps such as desorption, electrolysis, and melting.
4. Advantages
①. Significant increase in gold recovery rate.
②. Strong adaptability, suitable for complex ores.
③. High degree of automation and stable operation.
④. Environmental Protection and Resource Recycling.
5. Technical Specifications
Daily Capacity |
Application Scenario |
Main Equipment Configuration |
200 TPD |
Small-scale mining or pilot plant |
Jaw crusher + Cone crusher + MQG1500×3000 Ball Mill + 6-Tank CIP System |
500 TPD |
Small to medium gold mine |
Three-stage one-closed-circuit crushing + MQY2100×3000 Ball Mill + 8-Tank CIL System |
1000 TPD |
Medium-scale commercial processing plant |
Automated crushing system + High-efficiency thickener + 12-Tank CIL Adsorption System |
3000 TPD |
Large-scale mining project |
Intelligent control system + Modular steel structure plant + Fully automated processing equipment |

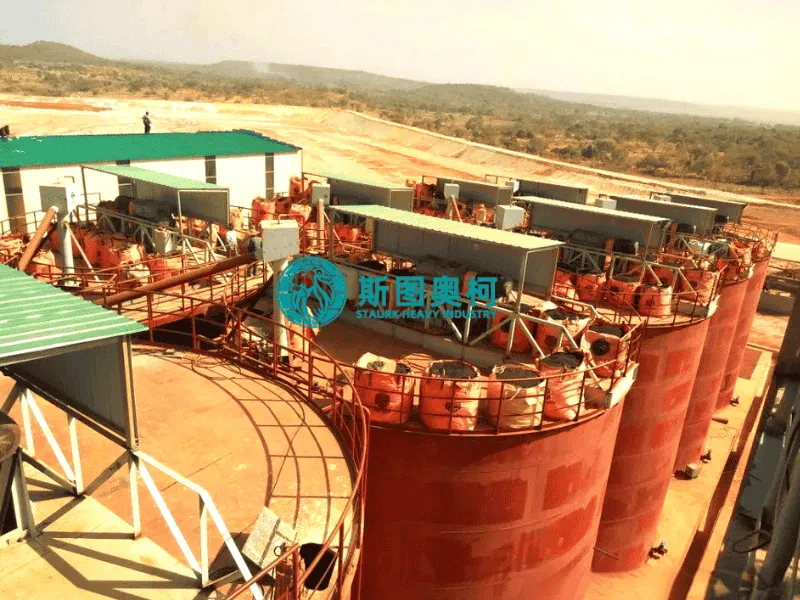

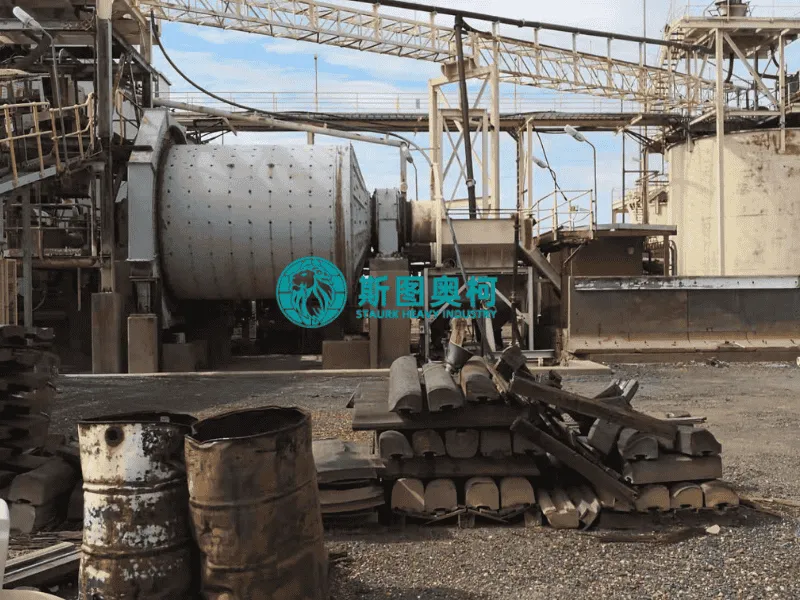

6.Our Solutions
