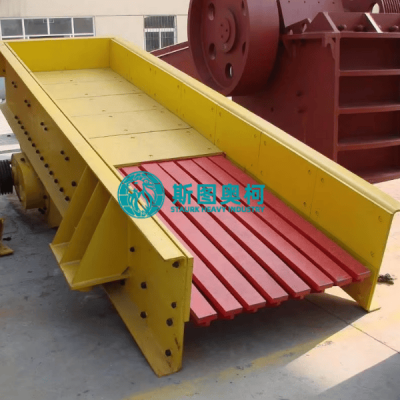

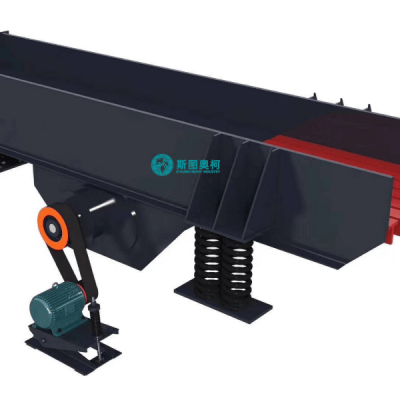

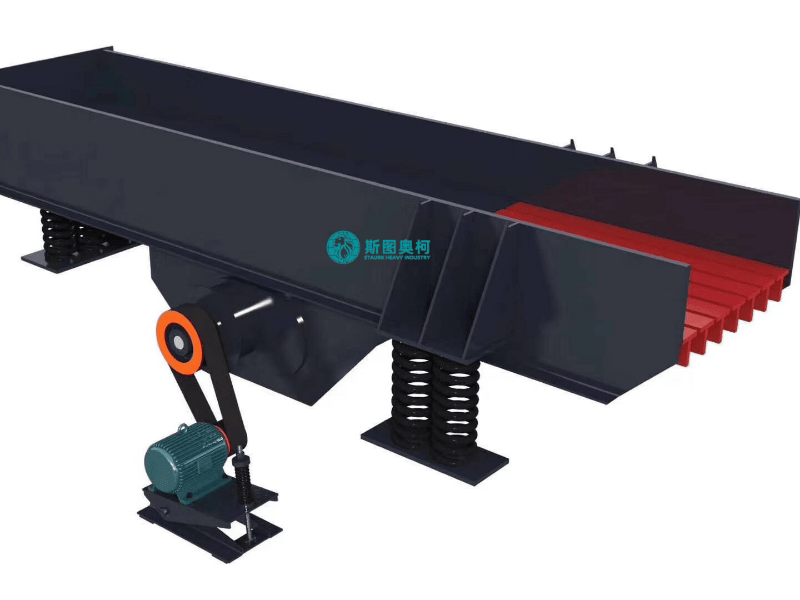

Vibrating Feeder Manufactured Henan Staurk Machinery Co.,Ltd
1. Product Introduction

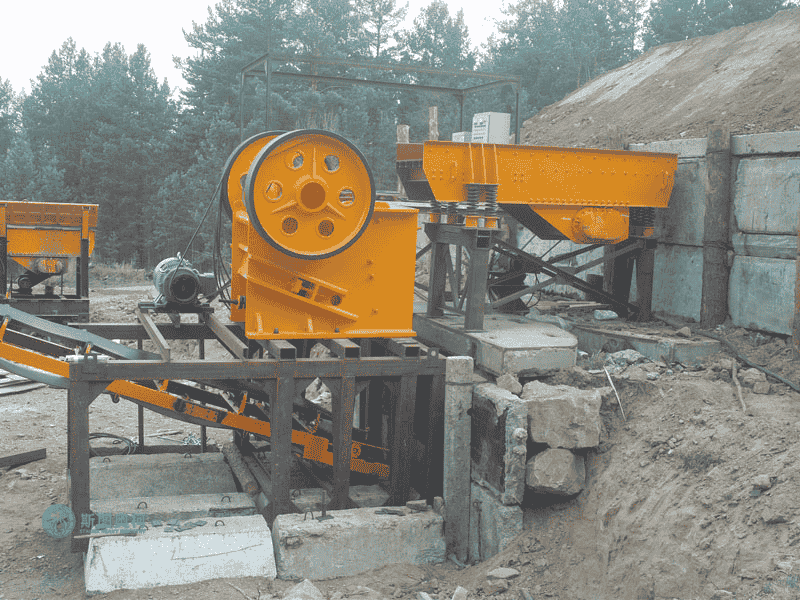

A vibrating feeder refers to a device that can uniformly, timed, and continuously feed block and granular materials from a storage bin to a receiving device. In the sand and gravel production line, it can continuously and uniformly feed the crushing machinery and perform coarse screening on the materials. It is widely used in the crushing and screening combined equipment of metallurgy, coal mining, mineral processing, building materials, chemical industry, abrasives and other industries.
2. Application

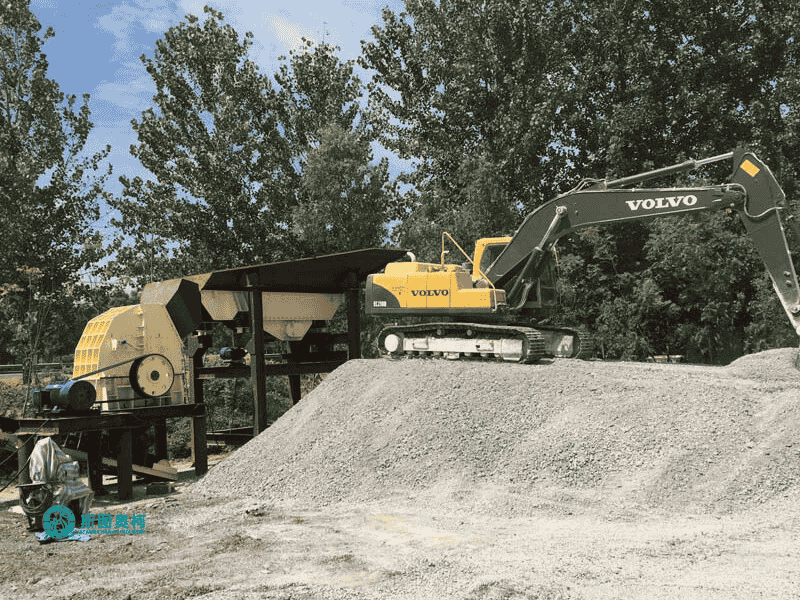

Suitable for various materials such as pebbles, river pebbles, limestone, granite, iron ore, dolomite, lead-zinc ore, coal gangue,slag, coke,etc
3. Working Principle

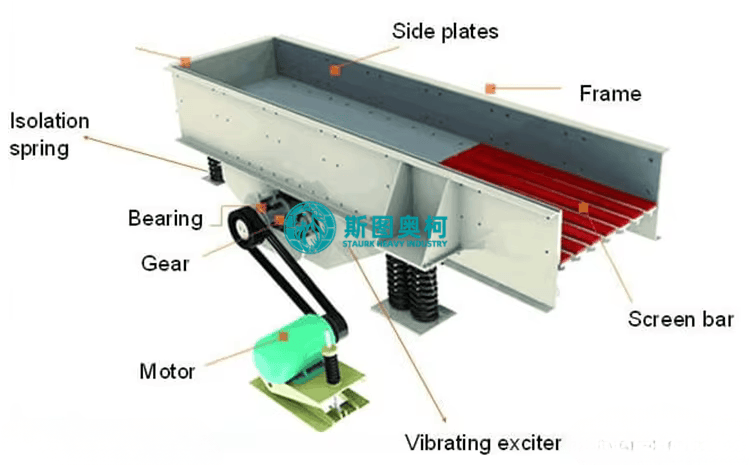

The vibrating feeder machine uses the eccentric block in the vibrator to rotate and generate centrifugal force, causing the movable parts such as the sieve box and vibrator to move in a forced continuous circular or approximately circular motion. The vibrating feeder is composed of a feeding tank, exciter, spring support, transmission device, etc. The vibration source of the trough vibration feeding is the exciter, which is composed of two eccentric shafts (active and passive) and a gear pair. The exciter is driven by an electric motor through a V-belt to drive the active shaft, and then the passive shaft is rotated by the gear meshing on the active shaft. The active and passive shafts rotate in the opposite direction at the same time, causing the trough to vibrate and continuously flow the material, achieving the purpose of conveying the material.
4. Advantages
①. Stable vibration, reliable operation, and long lifespan
②. It can adjust the excitation force, change and control the flow rate, and adjust conveniently and stably

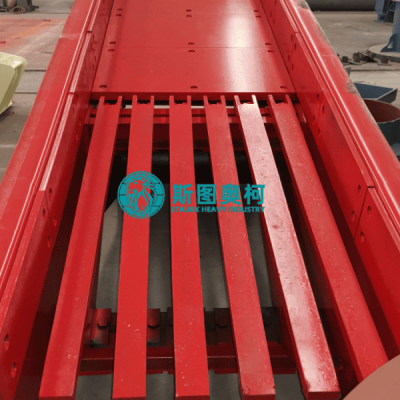

③. The gap can be adjusted to prevent material blockage and serve as a primary screening tool for materials, thereby increasing production capacity
④. The vibrating feeder has a simple structure for easy maintenance, reliable operation, easy adjustment and installation, light weight, small size, and convenient maintenance.
5. Technical Specifications
Model |
Size (mm) |
Max Feed Size (mm) |
Spindle Speed (r/min) |
Double Amplitude (mm) |
Installation Inclination (°) |
Capacity (t/h) |
Power (kW) |
ZW0820 |
800×2000 |
≤200 |
500–850 |
8–10 |
14 |
80–200 |
11 |
ZW0940 |
900×4000 |
≤500 |
500–850 |
8–10 |
14 |
80–200 |
15 |
ZW1020 |
1000×2000 |
≤250 |
500–850 |
8–10 |
14 |
300–400 |
11 |
ZW1220 |
1200×2000 |
≤250 |
500–850 |
8–10 |
14 |
350–600 |
15 |
ZW1420 |
1400×2000 |
≤250 |
500–850 |
8–10 |
14 |
400–700 |
15 |
ZW1620 |
1600×2000 |
≤250 |
500–850 |
8–10 |
14 |
450–800 |
18.5 |
ZW1150 |
1100×5000 |
≤600 |
500–850 |
8–10 |
14 |
360–550 |
22 |
ZW1250 |
1200×5000 |
≤700 |
500–850 |
8–10 |
14 |
400–600 |
30 |
ZW1260 |
1200×6000 |
≤700 |
500–850 |
8–10 |
18 |
400–600 |
37 |
ZW1360 |
1300×6000 |
≤700 |
500–850 |
8–10 |
18 |
450–800 |
37 |
ZW1560 |
1500×6000 |
≤900 |
500–850 |
8–10 |
18 |
450–1100 |
45 |
ZW1760 |
1700×6000 |
≤1000 |
500–850 |
8–10 |
18 |
500–1200 |
45 |
ZW1820 |
1800×2000 |
≤250 |
500–850 |
8–10 |
14 |
400–850 |
22 |
ZW1838 |
1800×3800 |
≤1000 |
500–850 |
8–10 |
20 |
650–2200 |
37 |
ZW1845 |
1800×4500 |
≤1000 |
500–850 |
8–10 |
20 |
650–2200 |
45 |
ZW1860 |
1800×6000 |
≤1000 |
500–850 |
8–10 |
18 |
550–1300 |
45 |
ZW2060 |
2000×6000 |
≤1000 |
500–850 |
8–10 |
18 |
650–1400 |
55 |
ZW2245 |
2200×4500 |
≤1000 |
500–850 |
8–10 |
20 |
800–2500 |
45 |
6.Our Solutions
