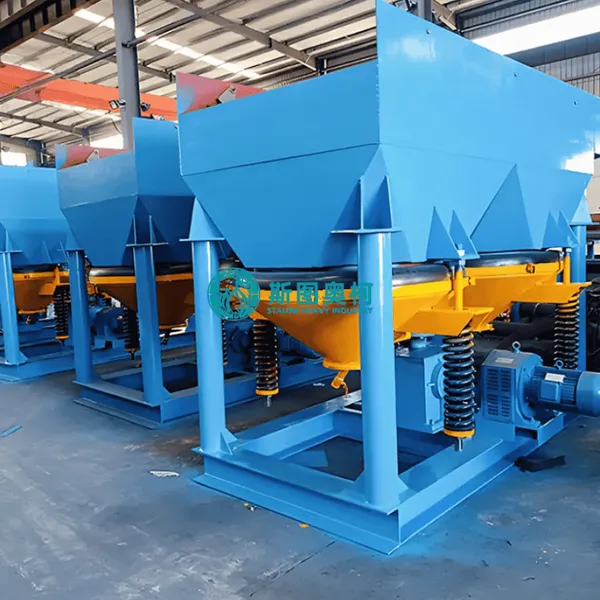

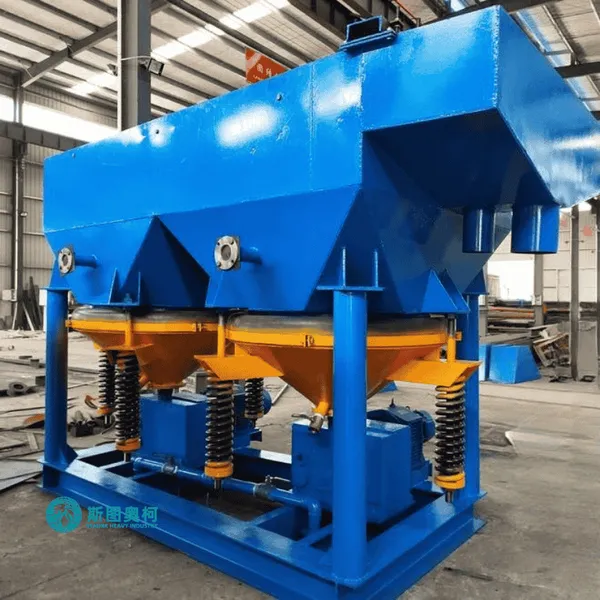

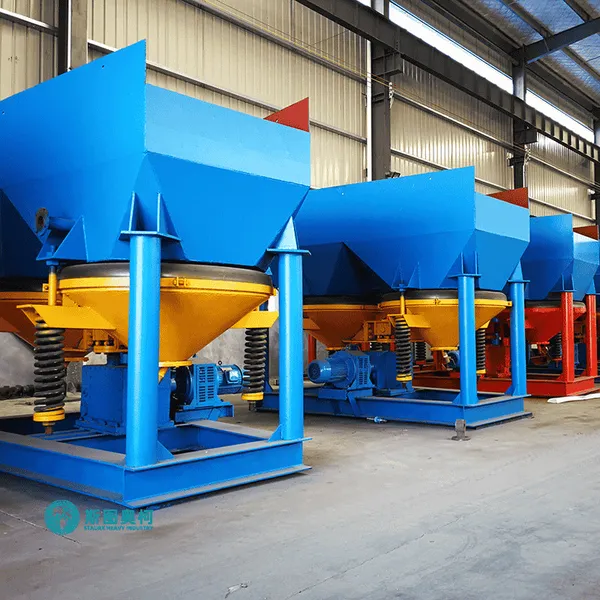

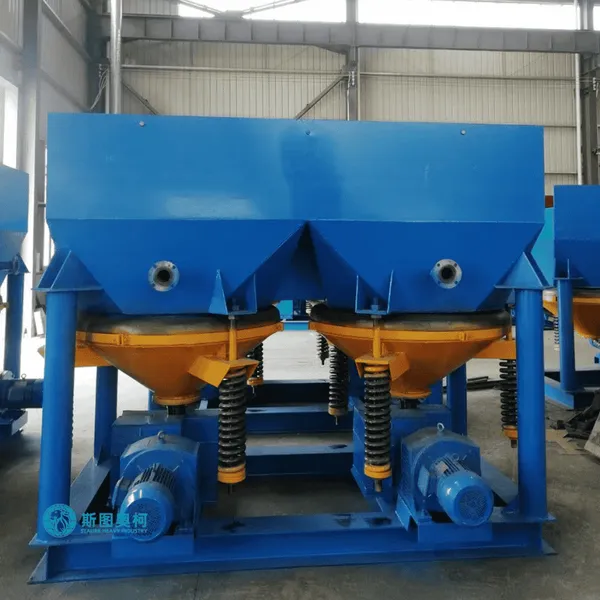

Jigger Manufactured Henan Staurk Machinery Co.,Ltd
1.Product Introduction
Jig machines have a small footprint and are easy to operate. They are a newly developed, energy-saving, and efficient beneficiation equipment in recent years. They have good effects on the beneficiation of various metal and non-metal minerals, especially for the beneficiation of fine-grained minerals. They play an extremely important role in the recovery and treatment of metal smelting slag and mining tailings.
2.Application
Widely applicable to various materials such as ore, cement, quartz sand, steel sand, slag powder, copper ore, iron ore, gold ore, concrete aggregates, and asphalt aggregates
3.Working Principle
Jig machine is based on the theoretical layering law of the Jig bed layer, and the Jig pulsation curve is serrated, making the rising water flow faster than the falling water flow: the rising time is short and the falling time is long; Enhanced the looseness of the bed layer, allowing the heavy mineral particles in the minerals to fully settle, improving the equipment's selectivity and recovery rate.
4.Advantages
①. Large processing capacity. ②. Wide range of particle size selection. ③. High enrichment ratio and recovery rate. ④. Easy to adjust stroke and frequency, using variable frequency speed regulation for easy operation and management.
5.Technical Specifications
Model |
Jigging Chamber Area (m²) |
Feed Size (mm) |
Water Consumption (m³) |
Water Pressure (Mpa) |
Capacity (t/h) |
Motor Power (kW) |
Overall Dimensions (mm) |
Weight (t) |
JT0.57-1 |
0.57 |
1–2 |
≥0.05 |
1.5–3 |
1.5 |
1550×780×1530 |
0.61 |
|
JT1-1 |
1.0 |
2–3 |
2.5–5 |
2.2 |
2270×1110×1890 |
0.9 |
||
JT2-2 |
2.28 |
2–4 |
5–10 |
3 |
3225×1550×2050 |
1.64 |
||
JT3-1 |
3 |
3–6 |
7.5–15 |
5.5 |
2745×2000×3030 |
3.35 |
||
JT4-2 |
4 |
4–8 |
8–20 |
7.5 |
4240×1990×2750 |
3.09 |
||
JT4-2s |
4 |
4–8 |
8–20 |
5.5×2 |
4240×1990×2750 |
4.5 |
||
JT5-2 |
4.86 |
3–6 |
12–25 |
7.5 |
3600×2000×2600 |
3.8 |

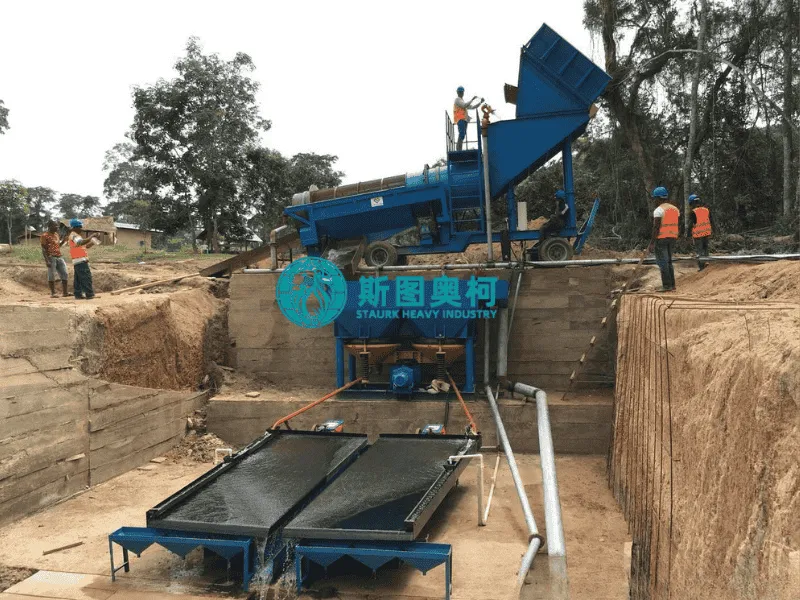

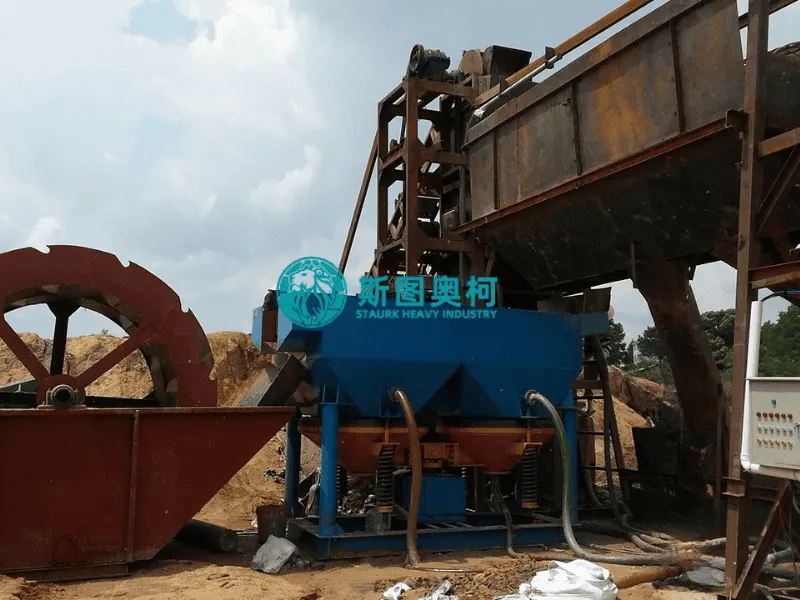

6.Our Solutions
