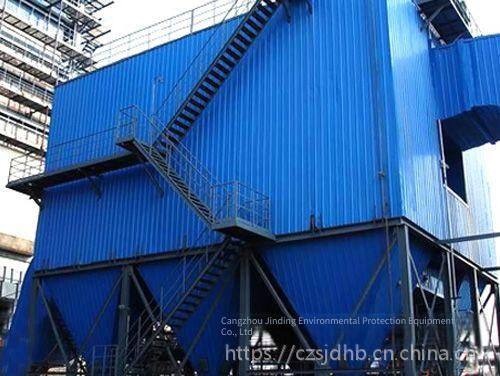

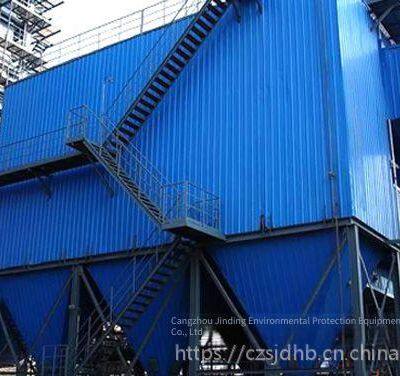

KWD Wide-spacing Electrostatic Precipitator
The power supply of the KWD Wide-spacing Electrostatic Precipitator consists of a control box, a step-up transformer, and a rectifier. The output voltage of the power supply also has a significant impact on the dust removal efficiency. Therefore, the operating voltage of the electrostatic precipitator needs to be maintained at 40 - 75 kV or even above 100 kV.
Compared with other dust removal equipment, the KWD Wide-spacing Electrostatic Precipitator consumes less energy and has a high dust removal efficiency. It is suitable for removing dust particles of 0.01 - 50 μm in flue gas and can be used in occasions with high flue gas temperature and high pressure. Practice shows that the larger the volume of flue gas to be treated, the more economical the investment and operating costs of using the electrostatic precipitator.
Data/Unit Capacity 25 - 50MW 100 - 150MW 200MW 300MW
Flue Gas Treatment Volume (m3/h) 25 - 40×104 70 - 110×104 130 - 185×104 150 - 210×104
Flue Gas Treatment Temperature (℃) 130 - 170 130 - 180 130 - 180 130 - 200
Flue Gas Resistance Loss (Pa)
Flue gas velocity in the electric field (m/S) 0.9～1.1 1.0～1.3 1.0～1.4 1.0～1.4
Air leakage rate (%)
Effective cross - sectional area of the electric field (m2) 55～110 90～130 120～170 190～230
Distance between the same poles (mm) 300～410 300～410 300～410 300～410
Length of the electric field (m) 9～10.5 9～12 12～14 12～18
Working pressure (Pa) -3000～-4500 -3000～-4500 -3000～-5000 -5000～-6500
Weight (T) 280～350 550～900 900～1100 1200～1500
Dust removal efficiency (%) >98 >98-99 >96-99 >98-99
Price (10,000 yuan) 270-340 538-878 887-1080 1180-1470
Cangzhou Jinding Environmental Protection Equipment Co., Ltd. specializes in the production of KWD-type wide-spacing electrostatic precipitators, which can be professionally customized according to on-site exploration and measurement. New and old customers are welcome to call for consultation. Consultation phone numbers: Mr. Ren 18713052490 (Hebei), Mr. Zhao 13393396766 (Shandong). Company website: www.czsjdhb.com. Email: czsjdhb@163.com
