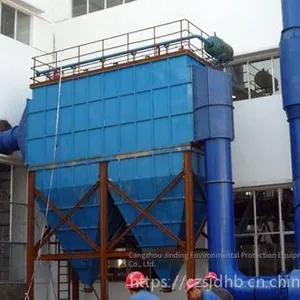

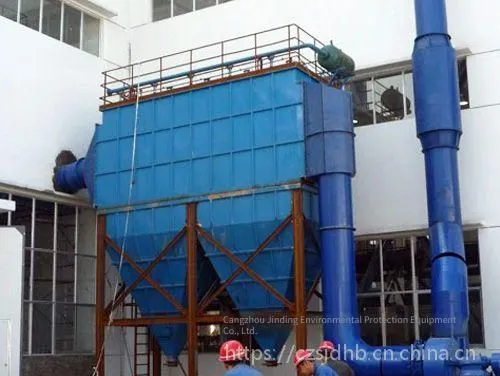

CNMC Type Counterflow Pulse Back-blowing Bag Filter
Professionally produced by Cangzhou Jinding Environmental Protection Equipment Co., Ltd.CNMC Type Counterflow Pulse Back-blowing Bag Filter, CNMC Type Counterflow Pulse Back-blowing Bag Filter is composed of filter bag components, diversion device, pulse injection system, ash discharge system, control system, offline protection system, box body, etc. It is a new type of high-efficiency pulse bag filter introduced by our company with foreign new equipment and new technologies, and improved through digestion. This dust collector has the advantages of large air handling capacity, high purification efficiency, small floor area, less filter bag wear, long service life, simple filter bag replacement, and convenient maintenance. The ash cleaning adopts pulse counterflow back-blowing ash cleaning, and its electrical control uses a sequential controller with reliable performance.
Working principle of CNMC Type Counterflow Pulse Back-blowing Bag Filter:
The dust-containing gas enters the bag filter from the air inlet and is filtered through the outer surface of the filter bag. The purified gas flows from the inside of the filter bag to the upper chambers and is discharged from the air outlet through the long Venturi tube. When the dust adsorbed on the outer surface of the filter bag reaches a certain value, pulse injection is carried out regularly by the program control. That is, while the high-pressure air is sprayed into the long Venturi tube, the purified gas is back-blown into the filter bag, forming a large pressure difference to clean the dust and achieve the purpose of ash cleaning, and keep the resistance of the entire equipment and system stable. The dust blown back falls to the bottom of the lower box and is discharged and recycled by the screw conveyor.
CNMC Type Counterflow Pulse Back-blowing Bag FilterFeatures:
1、CNMC type countercurrent pulse back-blowing bag filter adopts the pulse back-blowing dust cleaning method, which is one of the best dust cleaning effects in China at present. The upper box of this equipment is divided into eighteen small chambers that are not connected to each other and are connected to a long Venturi tube. The purpose of dust cleaning is achieved by using programmed pulses. The blowing tube and the small Venturi tube at the upper end of the filter bag are cancelled in the structure. The structure is simple, and the operation and maintenance are convenient.
2、Compared with other dust collectors in China, this equipment has the characteristics of large air handling capacity and small system resistance, and has a wide range of applications.
3、The edge of the tube sheet separating the upper and middle boxes is pressed into a certain conical hole, so that it forms a smooth contact with the filter bag, with good sealing performance and reduced wear between the hole edge and the filter bag.
4、The structure is simple and reasonable, with a small floor area, and it can be installed indoors or outdoors. Users can select the model by themselves or combine them in parallel according to their production process and the size of the air handling capacity. Dust collectors made of carbon steel or stainless steel can be provided as required.
CNMC type countercurrent pulse back-blowing bag filter is a new equipment that can be widely used in the purification, recovery and utilization of normal temperature and high temperature dust-containing gases in industrial and mining enterprises in industries such as metallurgy, chemical industry, machinery, non-ferrous casting, mines, asphalt concrete, cement, electric power, carbon black, and grain processing. In recent years, this equipment has been widely promoted and applied in various provinces and cities in China, and has replaced imports, being well received by users.
Professionally produced by Cangzhou Jinding Environmental Protection Equipment Co., Ltd.CNMC Type Countercurrent Pulse Reverse Blow Bag Filter can be professionally customized according to on - site exploration and measurement.Welcome new and old customers to call for consultation. Consultation phone numbers: Mr. Ren 18713052490 (Hebei), Mr. Zhao 13393396766(Shandong).
