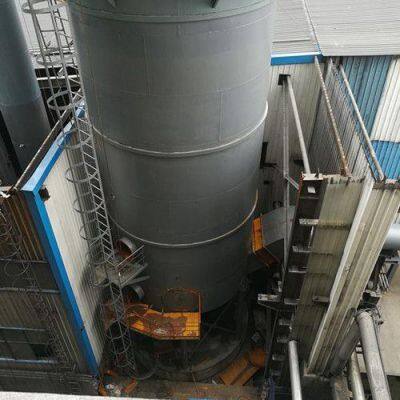

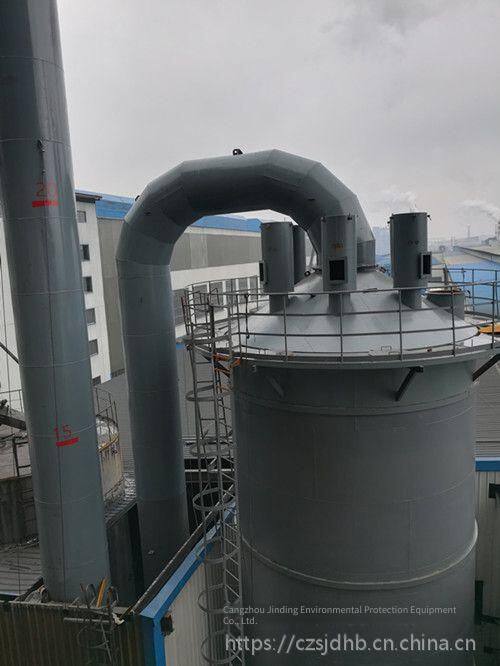

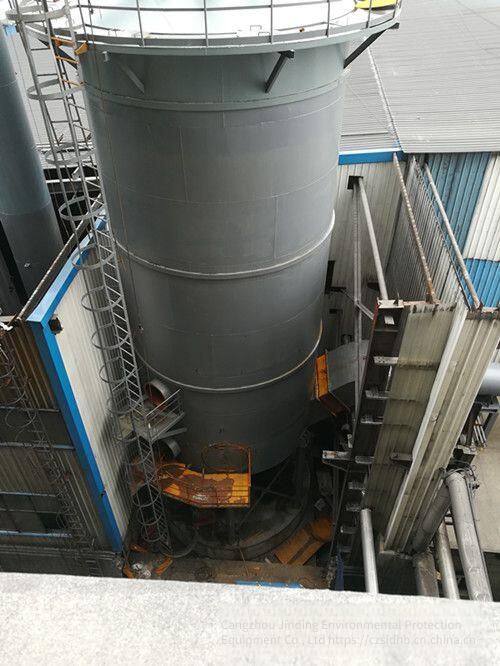

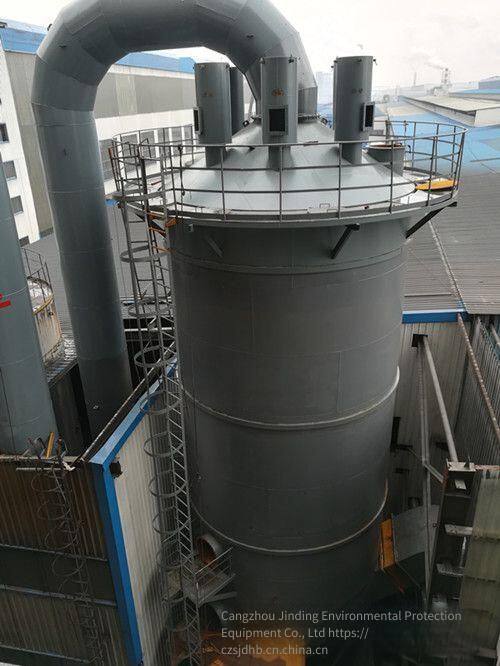

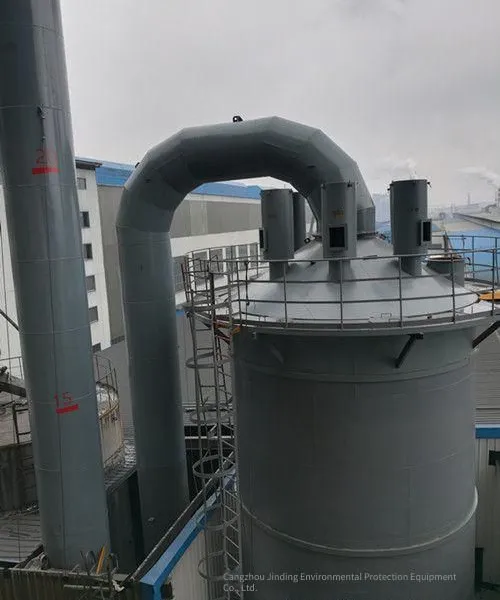

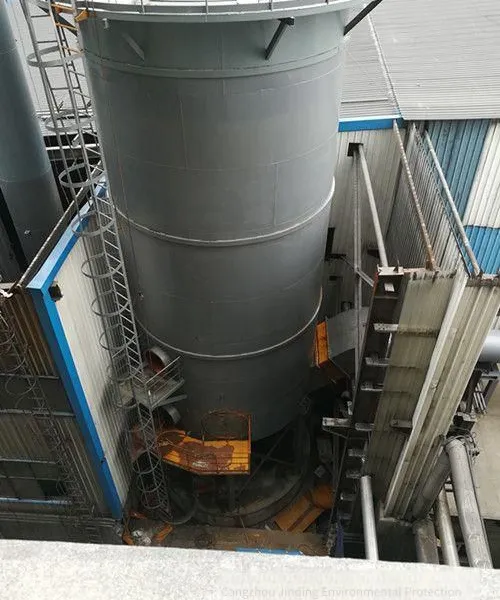

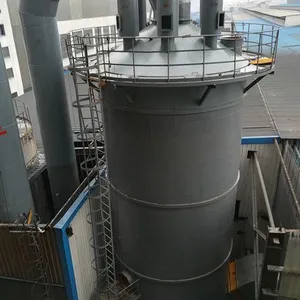

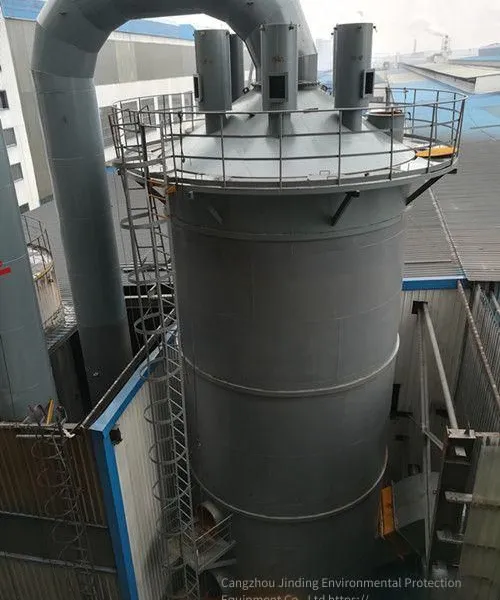

VerticalElectric Tar Catcher can be widely used for precise tar removal and purification of blast furnace gas, water gas, biomass gas, asphalt fume, etc. It has the advantages of high purification efficiency (up to over 99%), easy treatment of recovered materials, long - term safe and reliable operation, simple operation, and low maintenance cost. It is an ideal equipment for purifying asphalt smoke in roasting furnaces and asphalt melting warehouses. The shell of the honeycomb electric tar catcher adopts a cylindrical structure, and the internal precipitation electrode uses a structure similar to a honeycomb. The honeycomb structure has a regular hexagon cross - section for the channels. Two adjacent regular hexagons share one side, that is, the six sides of the regular hexagon in the middle are shared by the six regular hexagons surrounding it. Its principle is to apply high - voltage direct current between the metal wire and the metal tube wall (precipitation plate), forming a corona area between the positive and negative electrodes. When the gas containing tar droplets and other impurities passes through this electric field, the impurities that have adsorbed negative ions and electrons move to the precipitation electrode under the action of the electric field Coulomb force, release the charges they carry, and are adsorbed on the precipitation electrode. When the amount of impurities adsorbed on the precipitation electrode increases to be greater than its adhesion, they will automatically flow down and be discharged from the bottom of the electric tar catcher, thus achieving the purpose of purifying the gas. Compared with other tar catchers, the honeycomb electric tar catcher has the advantages of a compact and reasonable structure, no electric field cavities, a small barrel diameter, less floor space, a large effective cross - section (gas purification working surface), large gas treatment capacity at low cost, low power consumption, large amount of collected tar with good oil quality, high purification efficiency, and the pollutants after treatment can reach the emission standards. The achieved technical indicators can significantly improve the operating environment.
The honeycomb electric tar catcher developed and designed by Cangzhou Jinding Environmental Protection Equipment Co., Ltd., its advantages are as follows:
(1) A dust - proof and waterproof device is installed on the high - voltage porcelain bottle box, effectively ensuring that the high - voltage porcelain bottle is protected from secondary pollution, so that the high - voltage porcelain bottle can work efficiently and stably for a long time in a complex working environment
(2) The high - voltage insulating porcelain bottle is designed and manufactured by Xi'an Electric Porcelain Research Institute, increasing the voltage resistance of the high - voltage porcelain bottle from the original100KVRisen to the current300KV
(3) The suspension system adopts split suspension,Independently adjustable. Each electrode wire is an independent working unit, which can make each electrode wire in an excellent discharge state, thus ensuring the efficient operation of the equipment
(4) All electrode wire components are made of316Lstainless steel. While ensuring the strength, it also increases the service life of the electrode wire, and the connection of the electrode wire is a surface contact,solving the problem of wire breakage
(5) A stabilizing device is added to the corona system to keep the electrode wire and the plate in an excellent working position,reducing the swing amplitude caused by the impact of the gas(gas volume change)and maintaining the voltage in a high-potential steady-state working state
(6) A new type of"Special-shaped gas distributor", enabling secondary distribution of the gas,to evenly enter the working area of the electric field without airflow short - circuit phenomenon
(7) A tar diversion device is installed inside the tower,avoiding short - circuit between the high - voltage positive and negative poles caused by too high viscosity of tar
(8) A fire - fighting device is installed inside the tower, and an explosion - proof device is installed on the tower top,with good safety performance
(9) The electronic control system is rationally designed,it can give audible and visual alarms in case of faults such as over - current, under - voltage, and excessive oxygen content,and automatically cut off the high - voltage power supply.
(10) Constant - current source high - voltage generator,using a one - time iron core,reducing the magnetic leakage,it is not easy to heat up during use,thus increasing the service life of the high - voltage generator.And it has high corona power,Automatic tracking of electric field voltage,Good tar removal effect
Professionally produced by Cangzhou Jinding Environmental Protection Equipment Co., Ltd.Electric tar precipitator,It can be professionally customized according to on - site exploration and measurement.Welcome new and old customers to call for consultation.
